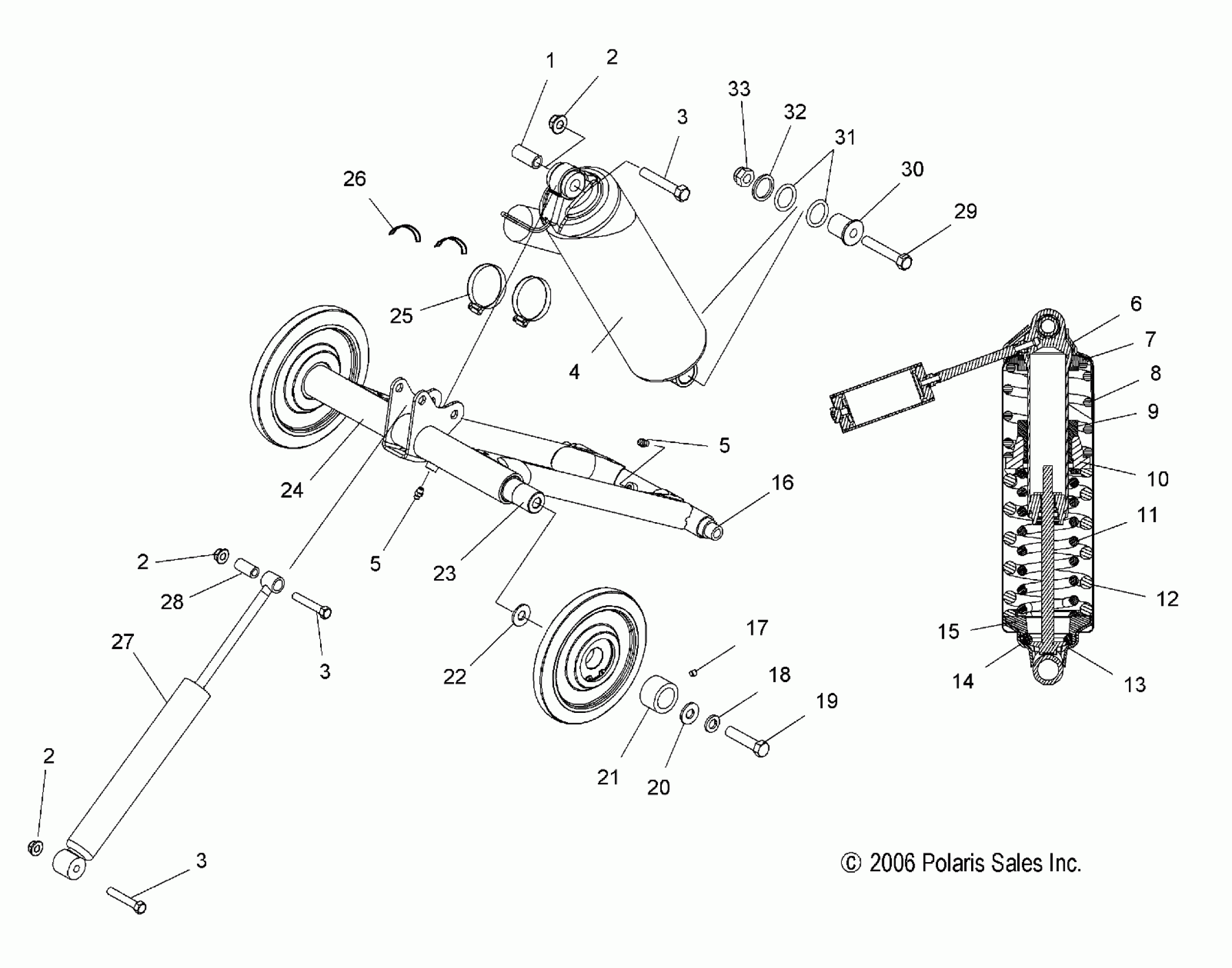

Polaris FST IQ CRUISER - S07PY7FS/FE TORQUE ARM, REAR - S07PY7FS/FE (49SNOWTORQUEREARFSTCRSR) Diagram

#

Description
Price

1

SLEEVE

5333905

$15.99

2

NUT-3/8-24 FLG LOC

7547263

$3.19

2

NUT-3/8-24 FLG LOC

7547263

$3.19

2

NUT-3/8-24 FLG LOC

7547263

$3.19

3

Screw

7515415

$1.49

3

Screw

7515415

$1.49

3

Screw

7515415

$1.49

4

Shock, Rear Track, M-10 [See Shock, Rear Track/Spring Assemble Pg. C3 for Details]

7043216

Unavailable

5

FITTING-LUBRICATION 1/4-28

7080424

$4.79

5

FITTING-LUBRICATION 1/4-28

7080424

$4.79

6

Cap, Shock End, M-10, Top

5436400

$18.23

7

Retainer, Spring, M-10, RTS, Upper

5134921

$39.03

8

Spring, Compression, Black

7042207-329

$97.13

9

Bushing, Overload, M-10, RTS

5436109

$6.63

10

Retainer, Spring, M-10, RTS, Mid

5135080

$59.52

11

Spring, Compression, Black

7042206-329

Unavailable

12

Spring, Compression, Black

7042208-329

$81.75

13

Cap, Shock End, M-10, Bottom

5436401

$18.23

14

Collar, Spring, Slotted

5133778

Unavailable

15

Retainer, Spring, M-10, RTS, Lower

5134780

$39.03

16

Shaft, Lower

5133093

$28.79

17

Screw

7512257

$3.99

18

WASHER-LOCK, 7/16-B

7552614

$1.59

19

SCREW

7518261

$3.99

20

Washer, Flat

7555984

$2.39

21

Spacer

5134113

Unavailable

22

WASHER, THRUST

7555787

Unavailable

23

Shaft, Upper

5135228

$51.59

24

Arm, Torque, Rear, M-10

1542124-067

Unavailable

25

Clamp, Hose

7081261

$3.03

26

Pad, Rubber

5812812

$0.49

27

Shock, Mid Track

7043189

$214.99

28

Bushing

5131985

$5.79

29

Screw

7515438

$4.79

30

Bushing, Flange

5133402

$11.99

31

O-RING

5411092

$1.60

32

Bushing

5133403

Unavailable

33

Nut, Nylok

7542439

$1.49
