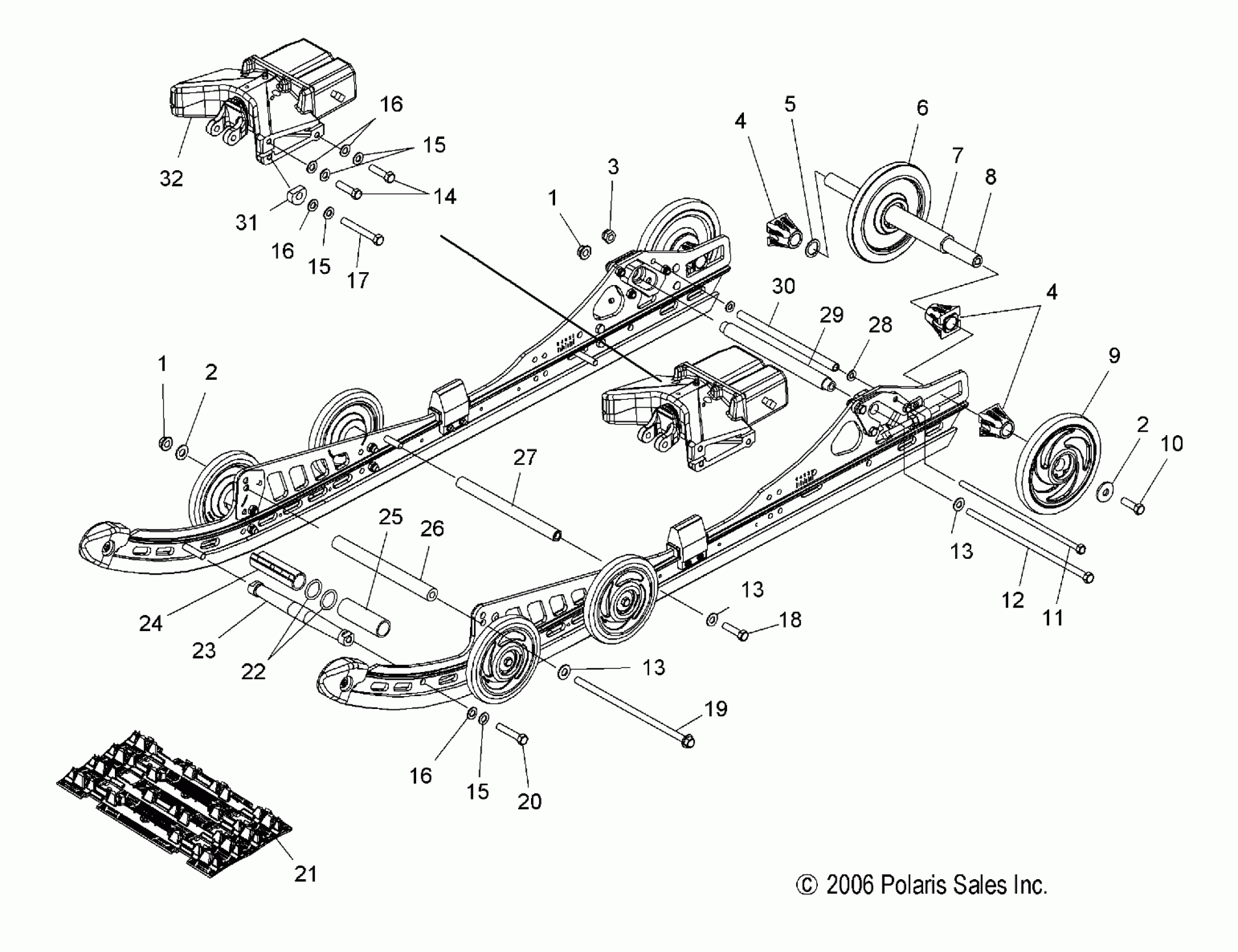

Polaris FST IQ CRUISER - S07PY7FS/FE SUSPENSION, REAR - S07PY7FS/FE (49SNOWSUSPRRFSTCRSR) Diagram

#

Description
Price

1

NUT-3/8-24 FLG LOC

7547263

$3.19

1

NUT-3/8-24 FLG LOC

7547263

$3.19

2

WASHER

7556130

$6.39

2

WASHER

7556130

$6.39

3

Nut, Nylok

7547064

Unavailable

4

SPACER-IDLER

5432535

$11.99

4

SPACER-IDLER

5432535

$11.99

5

BUSHING

7555918

$1.59

6

RING-RETAINING

7710444

$8.79

6

ASM., WHEEL

1594087

$72.84

6

Bearing

3514012

Unavailable

7

SPACER-IDLER, LONG

5333285

$11.99

8

SHAFT, IDLER

5020744

$59.99

9

BEARING

3514384

$19.84

9

RING-RETAINING

7710444

$8.79

9

Asm., Idler Wheel, Silver Metallic

1590303-244

Unavailable

10

BOLT

7517731

$1.49

11

Screw

7517896

Unavailable

12

Screw

7517821

Unavailable

13

Washer, Flat

7555806

$1.49

13

Washer, Flat

7555806

$1.49

13

Washer, Flat

7555806

$1.49

14

SCREW

7518006

$3.19

15

Washer, Spring Lock

7552603

$1.49

15

Washer, Spring Lock

7552603

$1.49

15

Washer, Spring Lock

7552603

$1.49

16

WASHER

7556042

Unavailable

16

WASHER

7556042

Unavailable

16

WASHER

7556042

Unavailable

17

SCREW

7518005

$3.19

18

SCREW

7518005

$3.19

19

SCREW

7517921

$23.99

20

Screw

7517857

$5.59

21

Clip, Slide

5241473

Unavailable

21

Clip, Guide

5241474

Unavailable

21

Track, Shockwave

5412342

Unavailable

22

O-RING

5411092

$1.60

23

Shaft, Tapered

5132793

$89.03

24

Mount, Limiter Strap, Lower

5132586

Unavailable

25

Spacer, Shock Centering

5333902

$34.99

26

Shaft, Pivot, Lower

5132579

$21.59

27

Shaft, Upper

5134078

$38.71

28

WASHER-.344X.688X.063 FL-Y

7558402

$1.49

29

Shaft, Lower

5133093

$28.79

30

Tube, Black

5333477-067

$15.67

31

Spacer

5133351

$7.99

32

Asm., Module, M-10, ACE [See Electric Module ( M-10)(ACE) Page for Details]

-------

Unavailable
