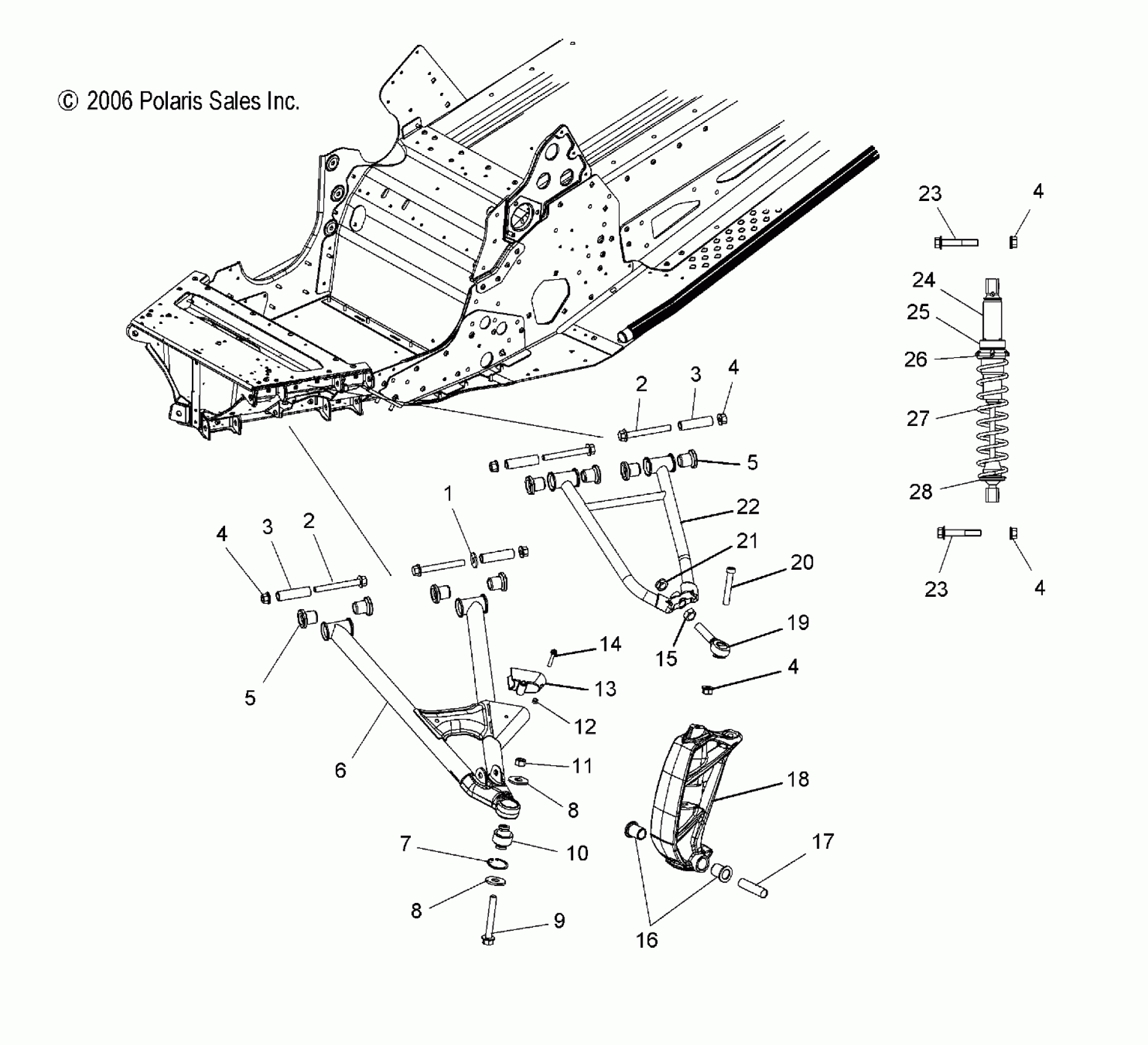

Polaris FST IQ CRUISER - S07PY7FS/FE SUSPENSION, FRONT - S07PY7FS/FE (49SNOWSUSPFRTFSTOUR) Diagram

#

Description
Price

1

Washer, Flat

7555893

$1.49

2

SCREW

7518384

$3.99

2

SCREW

7518384

$3.99

3

Shaft, Pivot

5133860

$11.60

3

Shaft, Pivot

5133860

$11.60

4

NUT, FLANGED

7547180

$2.39

4

NUT, FLANGED

7547180

$2.39

4

NUT, FLANGED

7547180

$2.39

4

NUT, FLANGED

7547180

$2.39

4

NUT, FLANGED

7547180

$2.39

5

BUSHING, PIVOT

5434932

$6.39

5

BUSHING, PIVOT

5434932

$6.39

6

Kit, Lower Control Arm, Black, RH [Incl. 3,5-7,12-14]

2203022-067

$309.99

6

Kit, Lower Control Arm, Black, LH [Incl. 3,5-7,12-14]

2203021-067

$309.99

7

RING, RETAINING

7710539

$2.39

8

WASHER

7556153

$1.99

8

WASHER

7556153

$1.99

9

SCREW

7518478

$4.79

10

KIT, SPHERICAL BEARING, LOWER [INCL. 7]

2203107

$52.37

11

NUT

7547344

$1.49

12

Nut, Nylok

7541925

$1.49

13

SLIDE, SWAY BAR

5435522

$24.27

14

Screw

7510504

$6.76

15

Nut, Jam

7542711

$2.39

16

BUSHING-SKI PIVOT

5133983

$14.99

17

BUSHING, PIVOT

5010158

$19.99

18

Asm., Spindle, RH [Incl. 16]

1822796

Unavailable

18

Asm., Spindle, LH [Incl. 16]

1822795

Unavailable

19

ROD END

7061145

$48.56

20

SCREW

7518428

$4.79

21

NUT-1/2-20 NYLOK,THIN HT-Y

7547104

$1.49

22

Kit, Upper Control Arm, Black, RH [Incl. 3,5,15,19,21]

2203020-067

$224.99

22

Kit, Upper Control Arm, Black, LH [Incl. 3,5,15,19,21]

2203019-067

$224.99

23

Screw

7518278

$8.99

23

Screw

7518278

$8.99

24

Shock, IFS [FST IQ LX]

7043054

Unavailable

25

Retainer, Spring, Body, Threaded [FST IQ LX]

1500063

$44.51

26

Ring, Spring Preload [FST IQ LX]

5431734

$52.60

27

Spring, Compression, IFS, Black [FST IQ LX]

7041550-067

Unavailable

28

Retainer, Spring, Slotted

5630580

Unavailable
