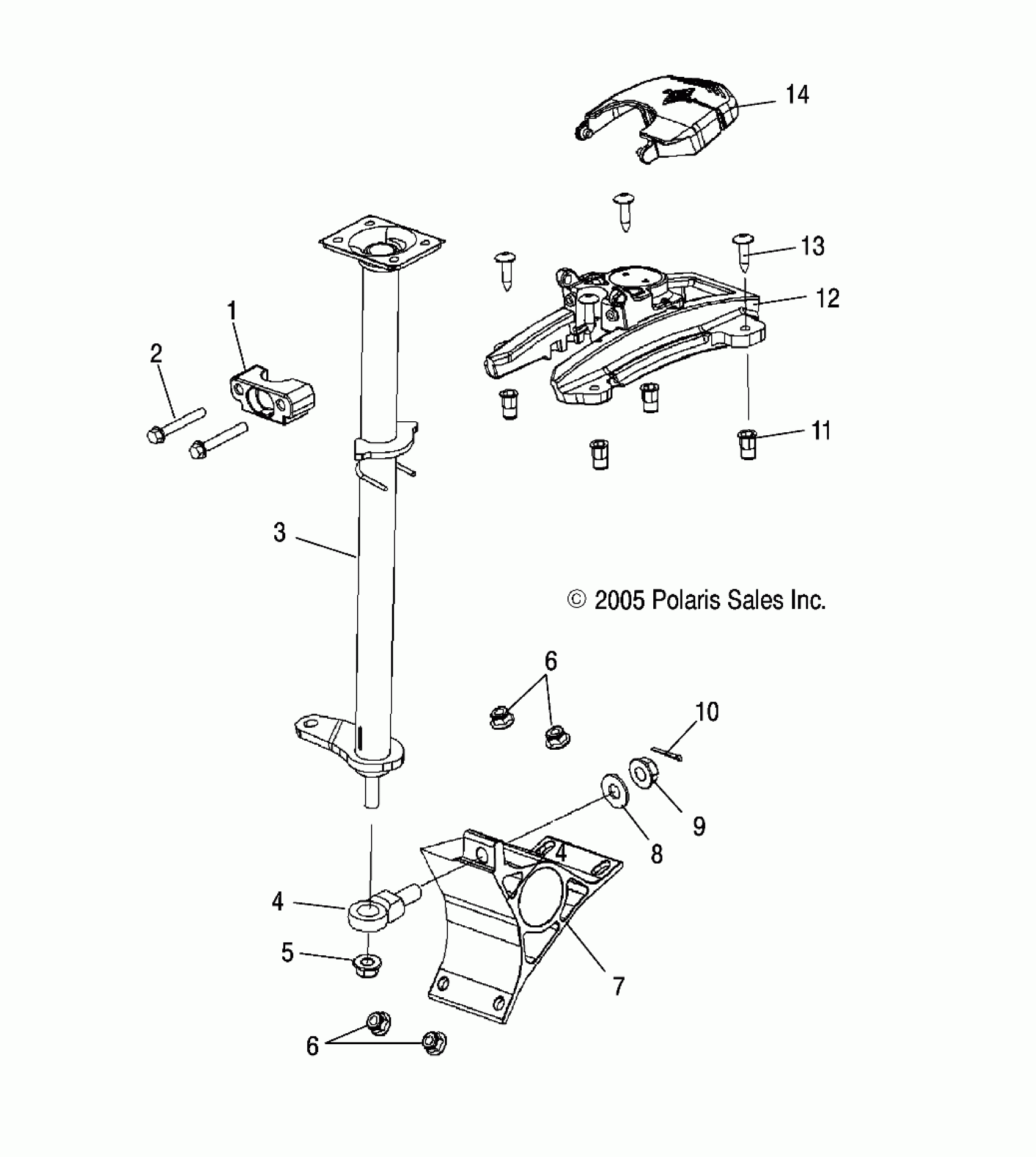

Polaris FST IQ CRUISER - S07PY7FS/FE STEERING POST ASSEMBLY - S07PY7FS/FE (4997479747B10) Diagram

#

Description
Price

1

BLOCK, STEERING POST, FRONT HALF

5435952

$10.51

2

Screw

7512093

$1.49

3

POST, STEERING, BLACK

1821472-067

$199.99

4

BALL, JOINT

7061144

$56.65

5

NUT-3/8-24 FLG LOC

7547263

$3.19

6

NUT-5/16-18 HX FLG NL-Y

7542343

$4.79

6

NUT-5/16-18 HX FLG NL-Y

7542343

$4.79

7

BRACKET, STEERING, LOWER

5134696

Unavailable

8

Washer, Wrought

7555801

$3.99

9

NUT

7547346

$2.39

10

Pin, Cotter

7661205

$1.49

11

Nutsert

7547069

$3.99

12

Asm., Block Steering, Adjust

1822863

Unavailable

13

SCREW

7518520

Unavailable

14

LEVER, ADJUSTING

5435955

$9.70
