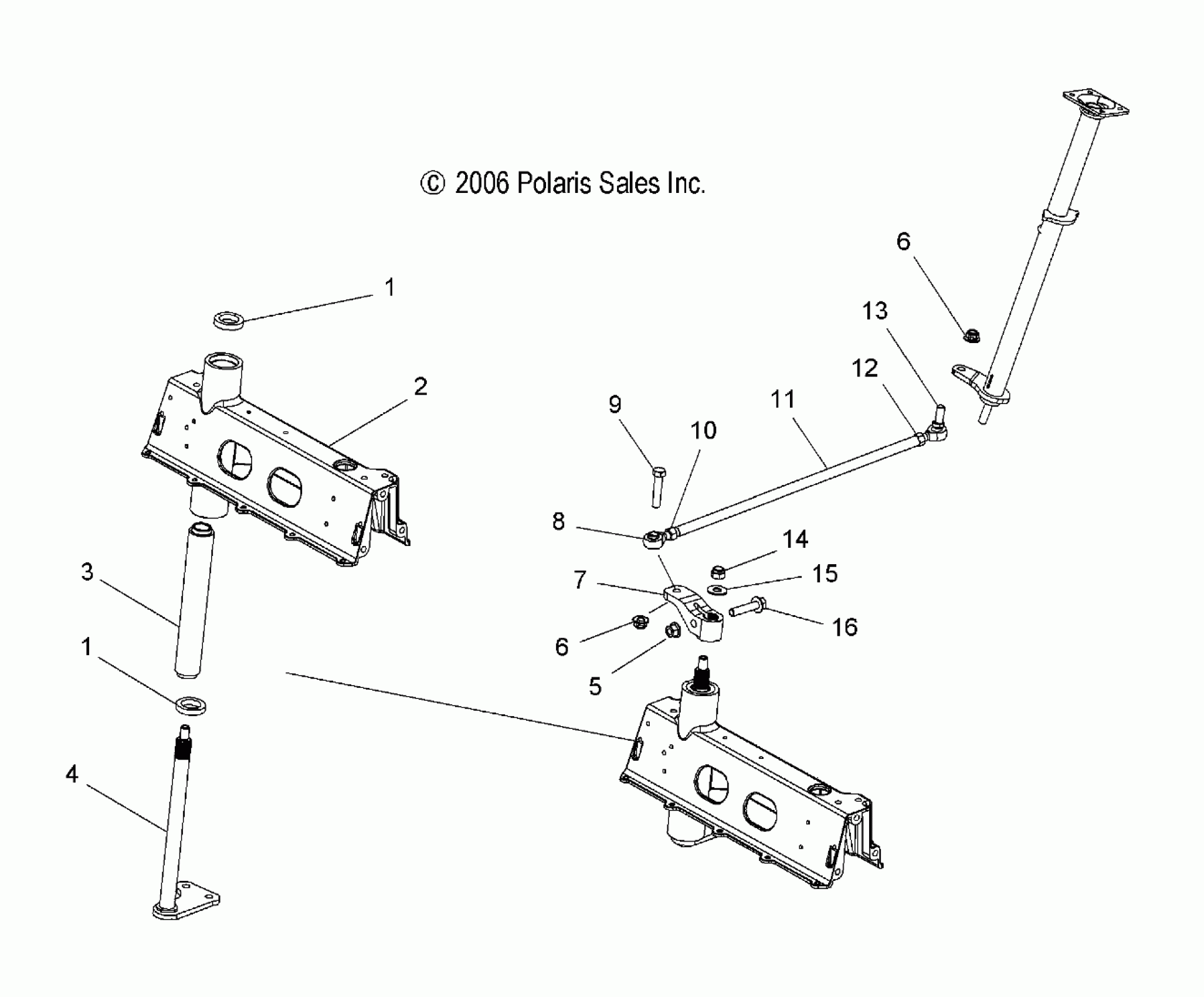

Polaris FST IQ CRUISER - S07PY7FS/FE STEERING/DRAG LINK - S07PY7FS/FE (49SNOWSTEERINGFSTSWTCH) Diagram

#

Description
Price

1

BEARING

3514481

$33.32

1

BEARING

3514481

$33.32

2

Channel, Steering/Shock

5133859

$95.19

3

SPACER, TUBE

5134705

$69.99

4

ARM, PITMAN

1822947

$214.51

5

NUT, FLANGED

7547180

$2.39

6

NUT-3/8-24 FLG LOC

7547263

$3.19

6

NUT-3/8-24 FLG LOC

7547263

$3.19

7

ARM, STEERING, PITMAN, UPPER

5134697

$99.99

8

Rod End, LH

7061066

$30.16

9

BOLT

7515540

$4.79

10

NUT, LH

7542424

$1.49

11

Rod, Drag Link, Black

5334397-067

$25.51

12

NUT

7542401

$2.39

13

ROD END, RH

7061084

$48.56

14

NUT, NYLON

7547066

$1.59

15

Washer

7555883

$3.99

16

SCREW

7518354

$3.99
