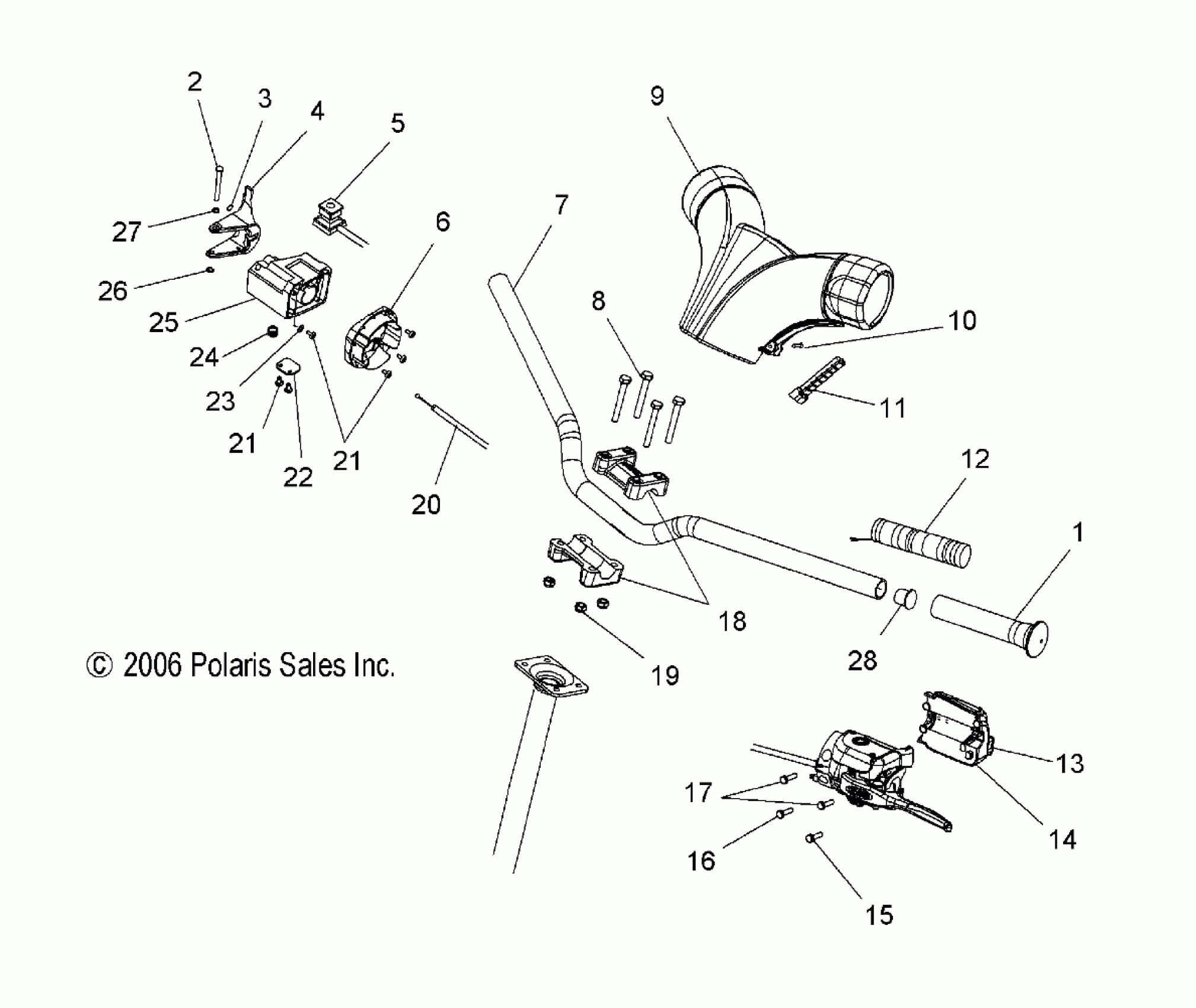

Polaris FST IQ CRUISER - S07PY7FS/FE HANDLEBAR - S07PY7FS/FE (49SNOWHANDLEBAR08FSTCRSR) Diagram

#

Description
Price

1

GRIP, HANDLEBAR, BLACK

5434715-070

Unavailable

2

PIN-RETAINING .186X1.780-AL

7661624

$12.79

3

RET.RING-INDUSTRIAL(2000-25)-Z

7710503

$3.99

4

LEVER, THROTTLE

5432970

$29.03

4

ASM., LEVER W/HEATER, HI/LO

2010171

$84.98

5

Switch, Auxiliary Shut-Off

4011280

Unavailable

6

ADAPTOR, BLOCK, THROTTLE

5433345

$15.99

7

HANDLEBAR, BLACK

5247209-067

$99.99

8

SCREW

7517238

$4.79

9

Cover, Handlebar, Black

5436554-070

$80.94

10

CLIP, DART, NYLON

4010287

$3.99

11

SLIDE, HANDLEBAR COVER, BLACK

5436553-070

$10.51

12

Heater, Grip, Lo/Med/Hi, Short

2410812

$52.60

13

Button, Switch, HI/LO, LH Control

5433291

Unavailable

14

Asm., Control, LH

2010237

$76.89

15

SCREW, 1.50

7517566

$3.99

16

SCREW, 1.12

7512078

$1.49

17

SCREW, .75

7517441

$2.39

18

Block, Handlebar, Black

5630187-067

$44.99

19

Nut, Nylok

7542122

$1.49

20

Cable, Throttle

7081388

$60.70

21

Screw

7511848

$3.99

21

Screw

7511848

$3.99

22

HOLDER, WIRE

5432261

$24.27

23

WASHER

7555727

$1.49

24

SCREW, SET

7512465

$3.99

25

BLOCK, THROTTLE/BRAKE

5431592

$49.99

26

RING-RETAINING EXTERNAL

7710401

$3.99

27

WASHER

7555730

$3.99

28

PLUG, OVERFLOW

5431096

$2.02
