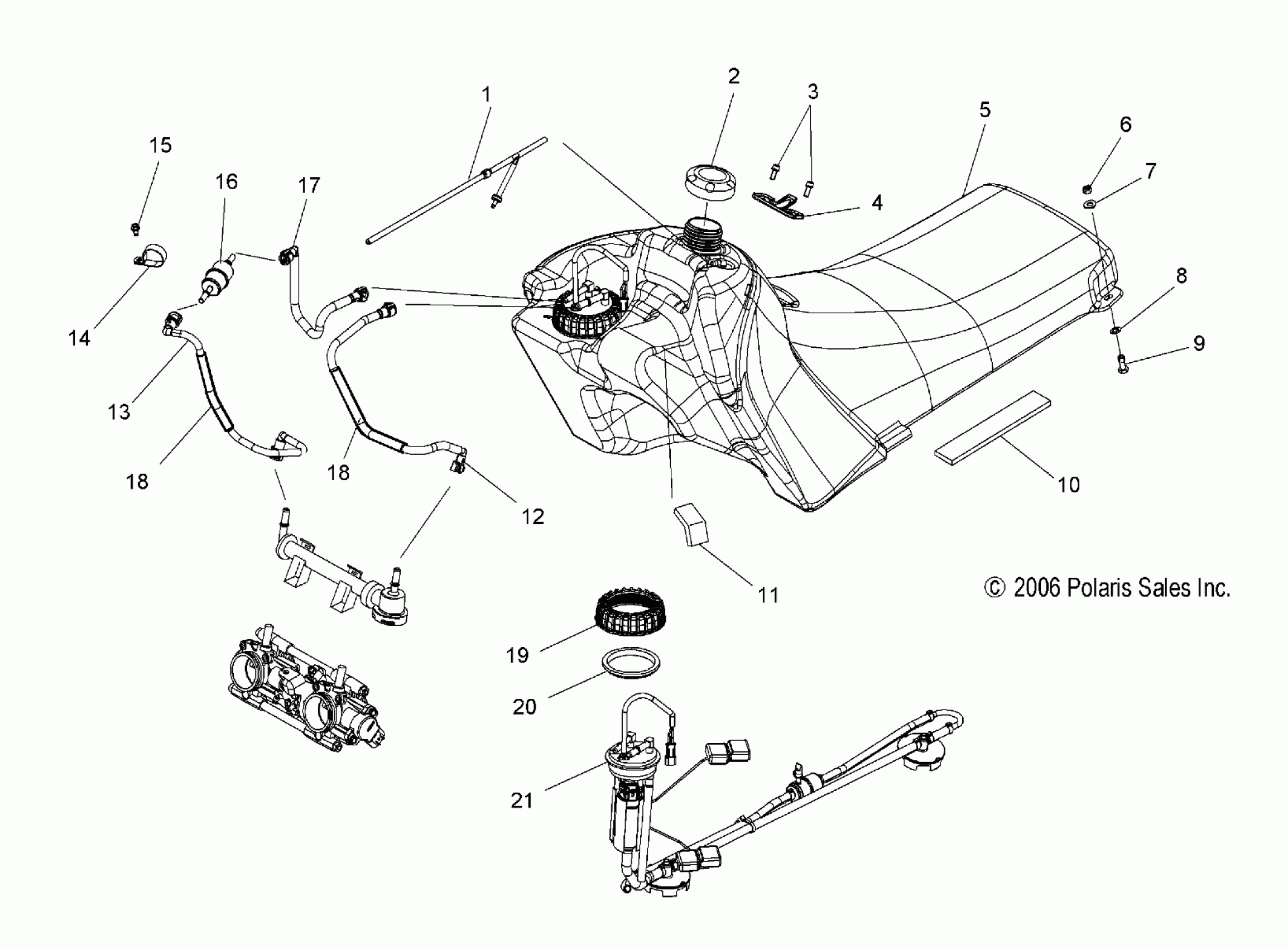

Polaris FST IQ CRUISER - S07PY7FS/FE FUEL SYSTEM - S07PY7FS/FE (49SNOWFUELFSTSWTCH) Diagram

#

Description
Price

1

Line, Fuel [Vent]

8450003-1525

$84.99

2

Cap, Fuel Tank

5435534

Unavailable

3

Screw

7515136

$1.49

4

BRACKET, SEAT MOUNT

5247431

$34.99

5

Kit, Fuel Tank, SVC [Incl. 11]

2203297

$339.99

6

Nut, Nylok

7542122

$1.49

7

Washer, Flat

7555859

$1.49

8

RETAINER, BOLT

7670154

$1.49

9

BOLT

7515203

$3.99

10

PAD-BATTERY

5810290

$7.27

11

PAD, RUBBER

5813100

$5.65

12

ASM., FUEL LINE, RETURN W/WRAP

2520721

Unavailable

13

ASM., FUEL LINE, RAIL, S/P W/WRAP

2520722

$44.51

14

CLAMP-HOSE

7080807

$9.59

15

Screw

7512208

$3.99

16

FILTER, FUEL

2520424

Unavailable

17

ASM., FUEL LINE, FILTER TO TANK

2520675

Unavailable

18

WRAP, WEAR RESIST

5521745-150

Unavailable

18

WRAP, WEAR RESIST

5521745-150

Unavailable

19

NUT-PFA

5436628

Unavailable

20

GASKET, PFA

5413063

Unavailable

21

Asm., Pump/Flange, Std. 3 Bar

2520613

Unavailable
