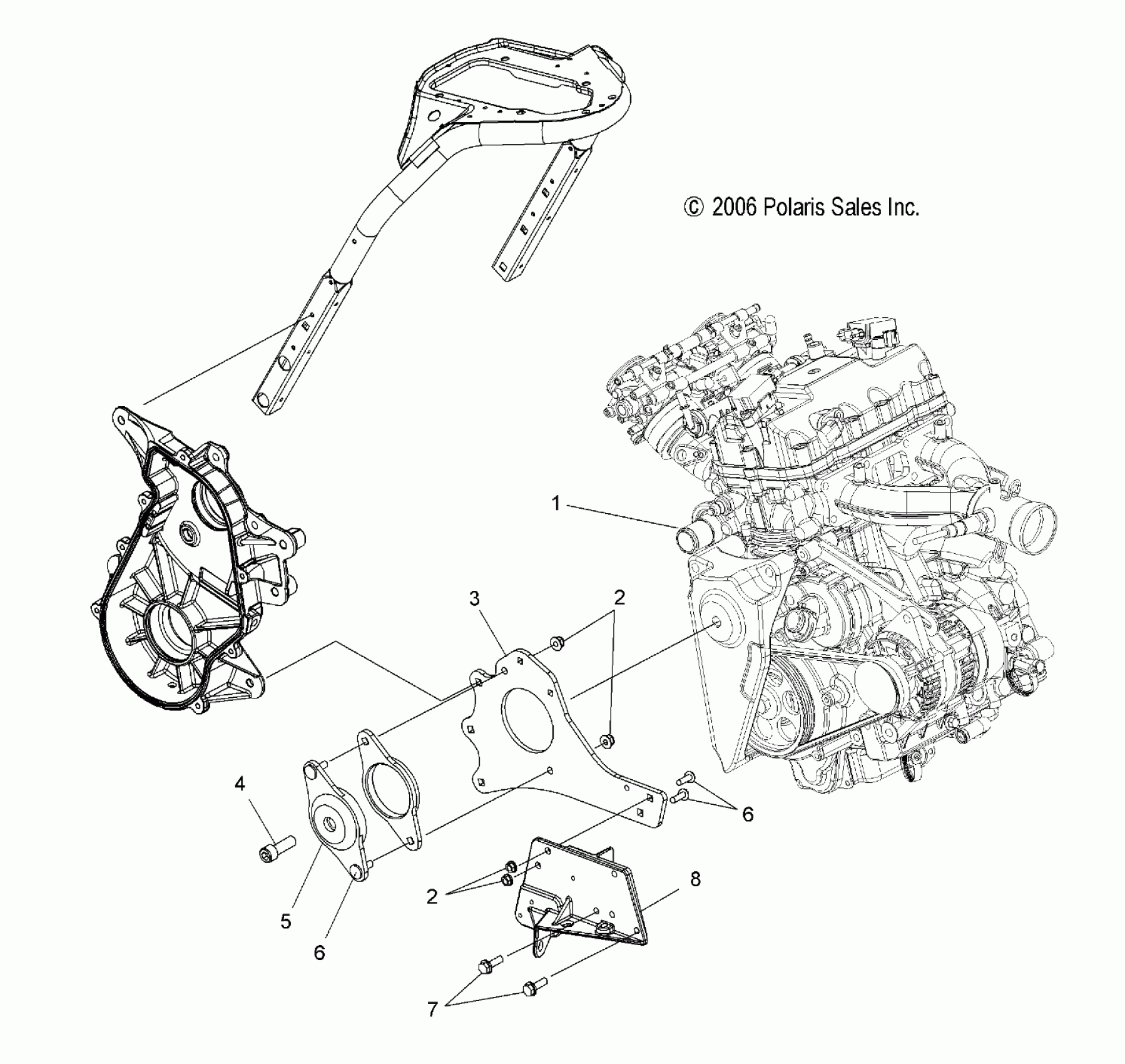

Polaris FST IQ CRUISER - S07PY7FS/FE ENGINE, MOUNTING, RH and FRONT - S07PY7FS/FE (49SNOWENGINEMOUNTRH) Diagram

#

Description

Price

1

Short Block [FST] NOTE: The Short Block assembly contains a crankcase assembly, cylinder and cylinder head assembly, and a piston and crankshaft assembly. Prior authorization is required for warranty

0452920

Unavailable

1

Short Block [FS] NOTE: The Short Block assembly contains a crankcase assembly, cylinder and cylinder head assembly, and a piston and crankshaft assembly. Prior authorization is required for warranty

0452921

Unavailable

2

NUT-5/16-18 HX FLG NL-Y

7542343

$4.79

2

NUT-5/16-18 HX FLG NL-Y

7542343

$4.79

3

PLATE, ENGINE STRAP, RH

5247597

$59.03

4

SCREW

7518374

Unavailable

5

MOUNT, ENGINE

3021623

$68.79

6

BOLT, CARRIAGE

7512331

$3.99

6

BOLT, CARRIAGE

7512331

$3.99

7

Screw

7518179

$3.99

8

SUPPORT, SHOCK TOWER, RH

5134105

Unavailable
