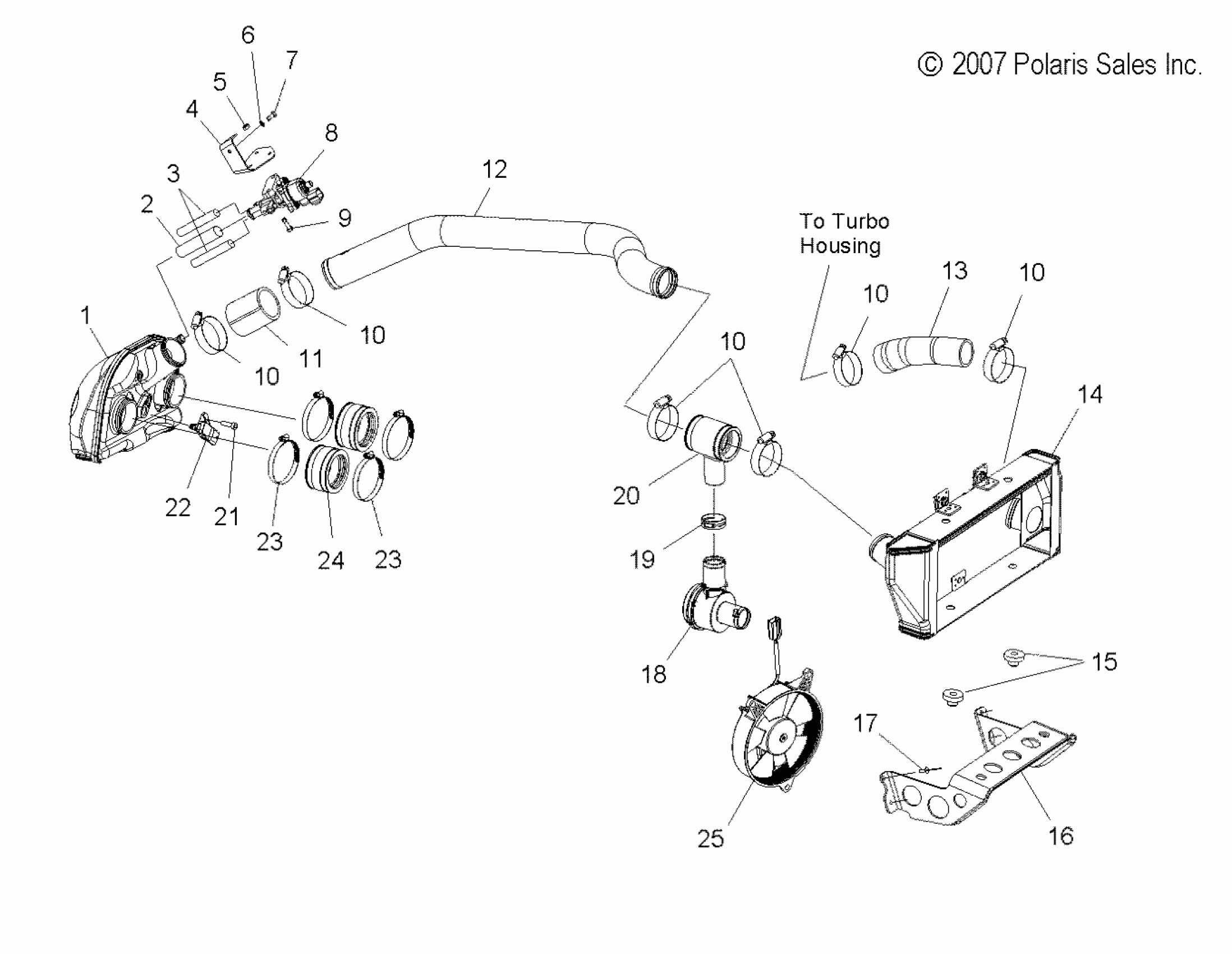

Polaris FST IQ CRUISER - S07PY7FS/FE COOLER, INTER - S07PY7FS/FE (49SNOWCOOLER08IQTURBOLXT) Diagram

#

Description
Price

1

Asm., Air Box [Also Order Adapter 5414587, Qty. 2]

1203065

Unavailable

2

CLAMP-HOSE,.875-SS

7080474

$8.40

2

Hose

8450116-153

Unavailable

3

HOSE CLAMP, RED

7080003

$1.49

3

Hose

8450114-153

Unavailable

4

Bracket, IAC Motor

5249501

$24.27

5

Nut, Nylok

7542122

$1.49

6

WASHER-1/4X1/2X.025 EXT TTH-Y

7552604

$1.59

7

Screw

7517916

$6.39

8

Asm., Idle Air Control Motor

1253562

$119.99

9

Screw

7517455

$8.99

10

Clamp, Constant Tension

7081414

$8.79

10

Clamp, Constant Tension

7081414

$8.79

10

Clamp, Constant Tension

7081414

$8.79

10

Clamp, Constant Tension

7081414

$8.79

10

Clamp, Constant Tension

7081414

$8.79

11

CONNECTOR, BOOST TUBE/AIR BOX

5412592

$10.51

12

TUBE, BOOST

5334748

$304.99

13

HOSE, TURBO/INTER COOLER

5412642

$24.27

14

Kit, Charged Air Cooler

2202945

Unavailable

15

Grommet

7052028

$6.39

16

BRACKET, CHARGED AIR COOLER

5248495

$204.99

17

RIVET-3/16-.090-.290

7661637

$1.49

18

VALVE, DUMP, TURBO

1203061

$134.99

19

CLAMP, SPRING BAND

7080843

$3.99

20

CONNECTOR, BOOST TUBE/CHG. AIR

5413021

$44.39

21

SCREW

7517431

$5.59

22

Sensor, T-Map

2410605

$133.56

23

CLAMP, NARROW BAND

7080909

$7.99

23

CLAMP, NARROW BAND

7080909

$7.99

24

Adapter, Throttle Body [Order IF NOT Ordering Air Box Asm.]

5412475

$18.65

24

Adapter, Airbox, SVC [Order IF Ordering Air Box Asm., 1203065]

5414587

$69.99

25

Kit, CAC Fan Asm.

2202944

Unavailable
