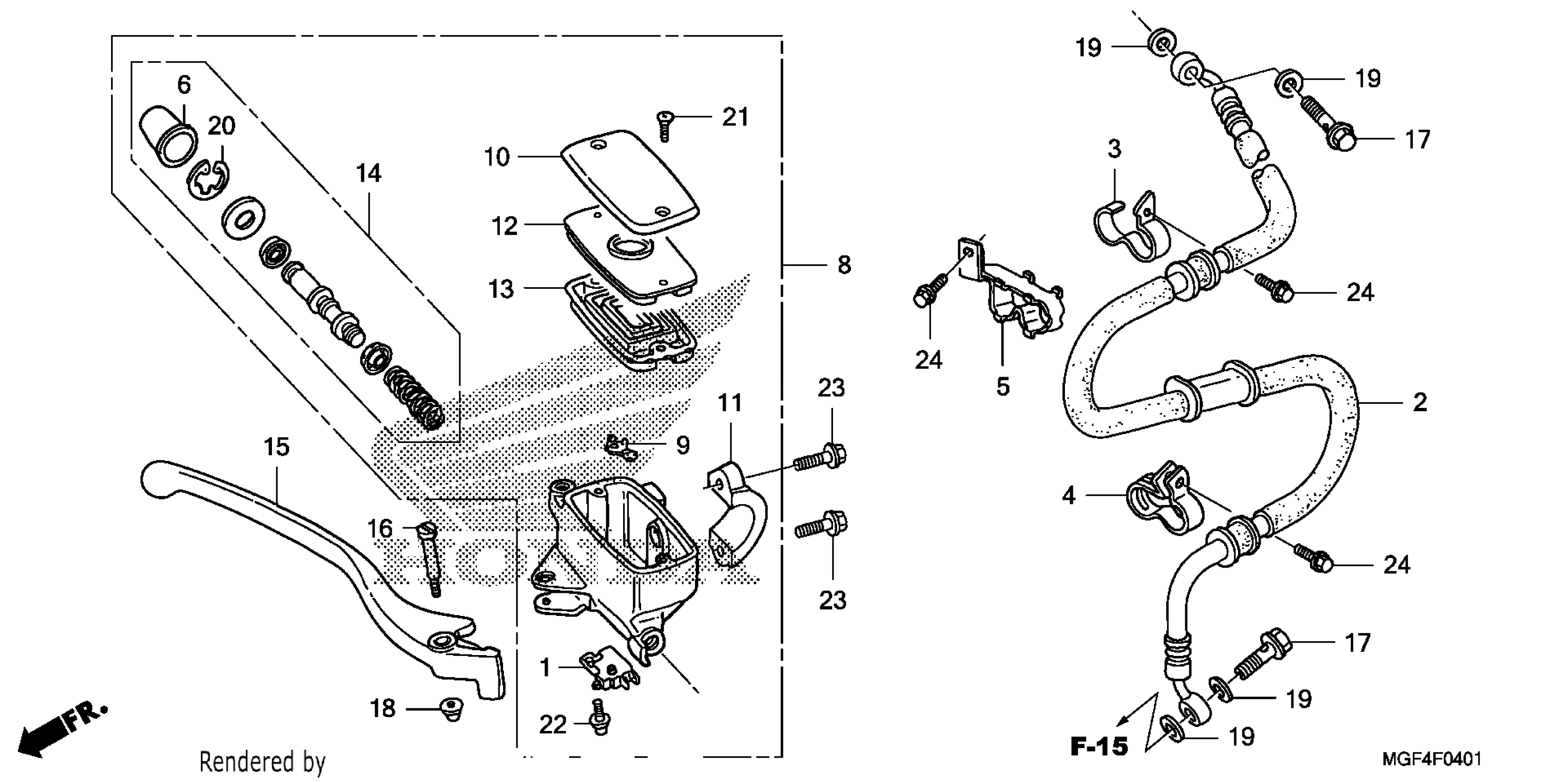

Honda FSC600DAC (10) SILVER WING, JPN, VIN# JH2PF011-AK800001 TO JH2PF011-AK899999 FRONT BRAKE MASTER CYLINDER (FSC600D) Diagram

SWITCH ASSY., FR. STOP

35340-MM5-600

$22.13

HOSE, FR. BRAKE

45125-MCT-003

Unavailable

CLIP A, BRAKE HOSE

45127-KFG-000

$3.23

CLAMP, BRAKE HOSE

45131-MCT-D00

$4.72

CLAMP A, BRAKE HOSE

45135-KPB-000

$5.98

BOOT

45504-410-003

$12.16

MASTER CYLINDER SUB-ASSY., FR. BRAKE (COO) (NISSIN) This part replaces 45510-MCT-006.

45510-MGF-305

$201.03

MASTER CYLINDER SUB-ASSY., FR. BRAKE (COO) (NISSIN)

45510-MGF-305

$201.03

PROTECTOR

45512-MA6-006

$4.28

CAP, MASTER CYLINDER (NISSIN)

45513-MM5-016

$22.41

HOLDER, MASTER CYLINDER

45517-166-006

$13.55

PLATE, DIAPHRAGM (NISSIN)

45518-MM5-006

$10.65

DIAPHRAGM (NISSIN)

45520-MM5-006

$15.12

MASTER CYLINDER SET (SET INCLD.7 PARTS,ITEM SHOWN BELOW SPRING DOES NOT APPLY)

45530-MN9-305

$50.74

LEVER, R. HANDLEBAR (COO)

53175-MFR-305

$18.76

BOLT, R. HANDLEBAR PIVOT

90114-MA5-671

$9.43

BOLT, OIL (10X22) (SAGA)

90145-MS9-612

$7.54

NUT, CAP (6MM)

90201-415-000

$2.05

WASHER, OIL BOLT

90545-300-000

$3.99

CIRCLIP

90651-MA5-671

$2.66

SCREW, FLAT (4X12)

93600-04012-0G

$1.49

SCREW, FLAT (4X12) This part replaces 93600-04012-1G.

93600-04012-0G

$1.49

SCREW-WASHER (4X12)

93893-04012-07

$1.49

SCREW-WASHER (4X12) This part replaces 93893-04012-17.

93893-04012-07

$1.49

BOLT, FLANGE (6X22)

96001-06022-07

$1.85

BOLT, FLANGE (6X12)

96300-06012-00

$1.49
