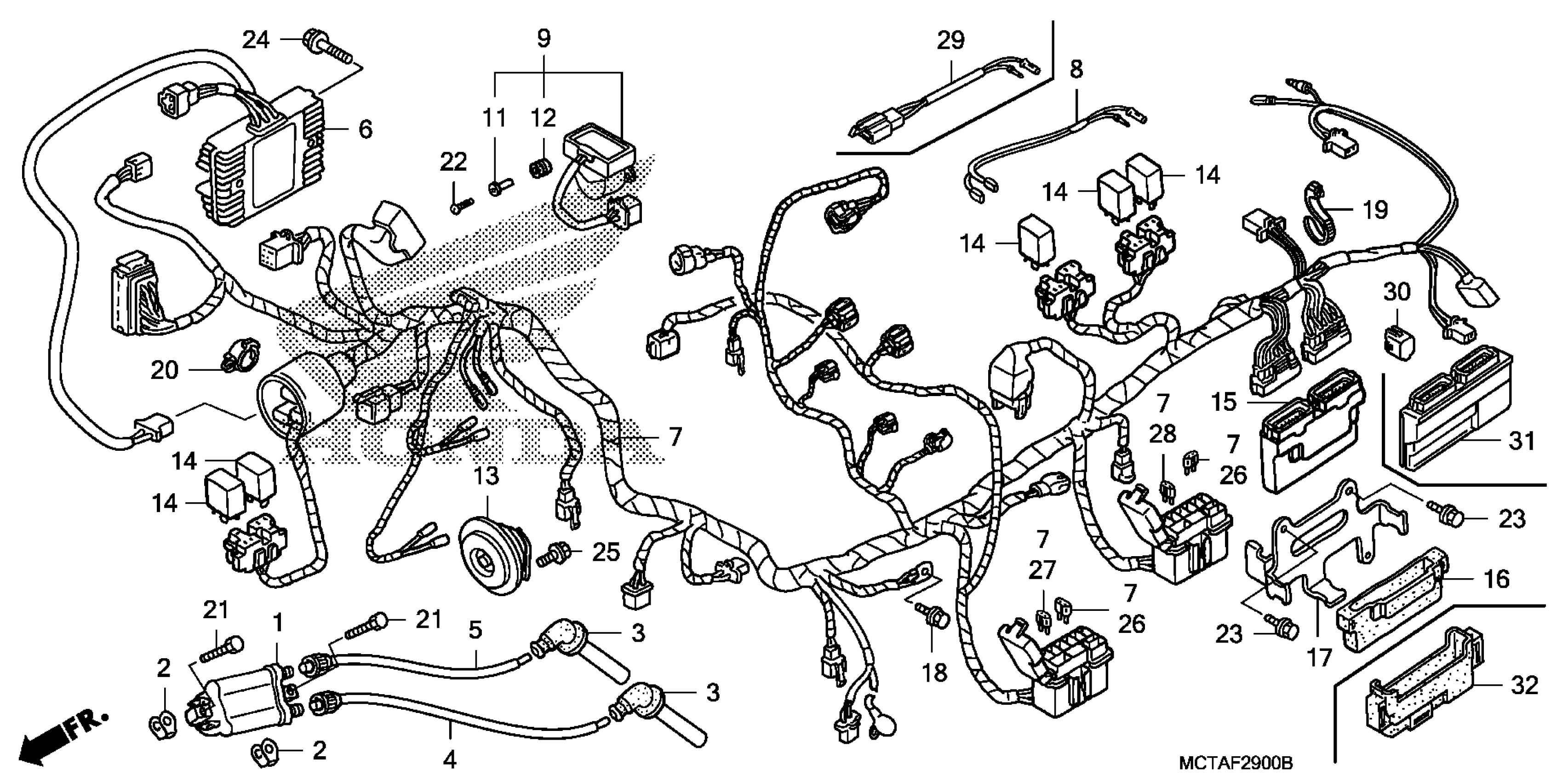

Honda FSC600DAC (09) SILVER WING, JPN, VIN# JH2PF011-9K700001 WIRE HARNESS Diagram

#

Description
Price

1

COIL, IGNITION

30510-MCC-003

$89.93

2

SPACER, IGNITION COIL

30520-ML7-000

$3.77

3

CAP ASSY., NOISE SUPPRESSOR This part replaces 30700-KY2-701.

30700-KY2-702

$36.91

4

WIRE, IGNITION (1)

30731-MCT-000

$21.36

5

WIRE, IGNITION (2)

30732-MCT-000

$18.66

6

RECTIFIER ASSY., REGULATOR

31600-MCT-771

$220.79

7

WIRE HARNESS

32100-MCT-L60

$705.82

9

SENSOR ASSY., BANK ANGLE This part replaces 35160-MCT-003.

35160-MCT-013

$129.66

9

SENSOR ASSY., BANK ANGLE

35160-MCT-013

$129.66

11

COLLAR

35162-MN5-003

$7.25

12

GROMMET

35163-MN5-003

$3.15

13

HORN (HIGH)

38110-MCT-691

$60.90

14

RELAY, POWER (MICRO ISO 4P)

38501-MCS-G01

$10.76

17

STAY, PGM-FI UNIT

50327-MCT-000

$12.33

18

BOLT, GROUND (6X16)

90149-SE0-003

$7.20

19

BAND, SUCTION HOSE (BLACK) (Honda Code 3522752)

90679-SG9-E01

$3.73

20

CLIP, WIRE HARNESS

90684-ZA0-601

$2.93

21

BOLT, HEX. (6X20)

92101-06020-4J

$1.49

22

SCREW, PAN (4X20)

93500-04020-0H

$1.49

23

BOLT, FLANGE (6X12) BOLT, SPECIAL (6X12)

95701-06012-00

$1.62

24

BOLT, FLANGE (6X28)

95701-06028-08

$2.08

25

BOLT, FLANGE (8X12)

95701-08012-08

$1.80

26

FUSE, MINI (10A)

98200-41000

$1.49

27

FUSE, MINI (15A) (Honda Code 4853438)

98200-41500

$1.49

28

FUSE, MINI (30A) (Honda Code 5359666)

98200-43000

$1.67

29

SUB-WIRE, DOOR SWITCH

32106-MCT-D60

$8.39

30

CAP, DUMMY (4P) (RED) (Honda Code 7679160)

32606-GEV-761

$4.52

31

PGM-FI UNIT

38770-MCT-L61

$1,066.20

32

CUSHION, PGM-FI UNIT

38775-MCT-770

$20.59
