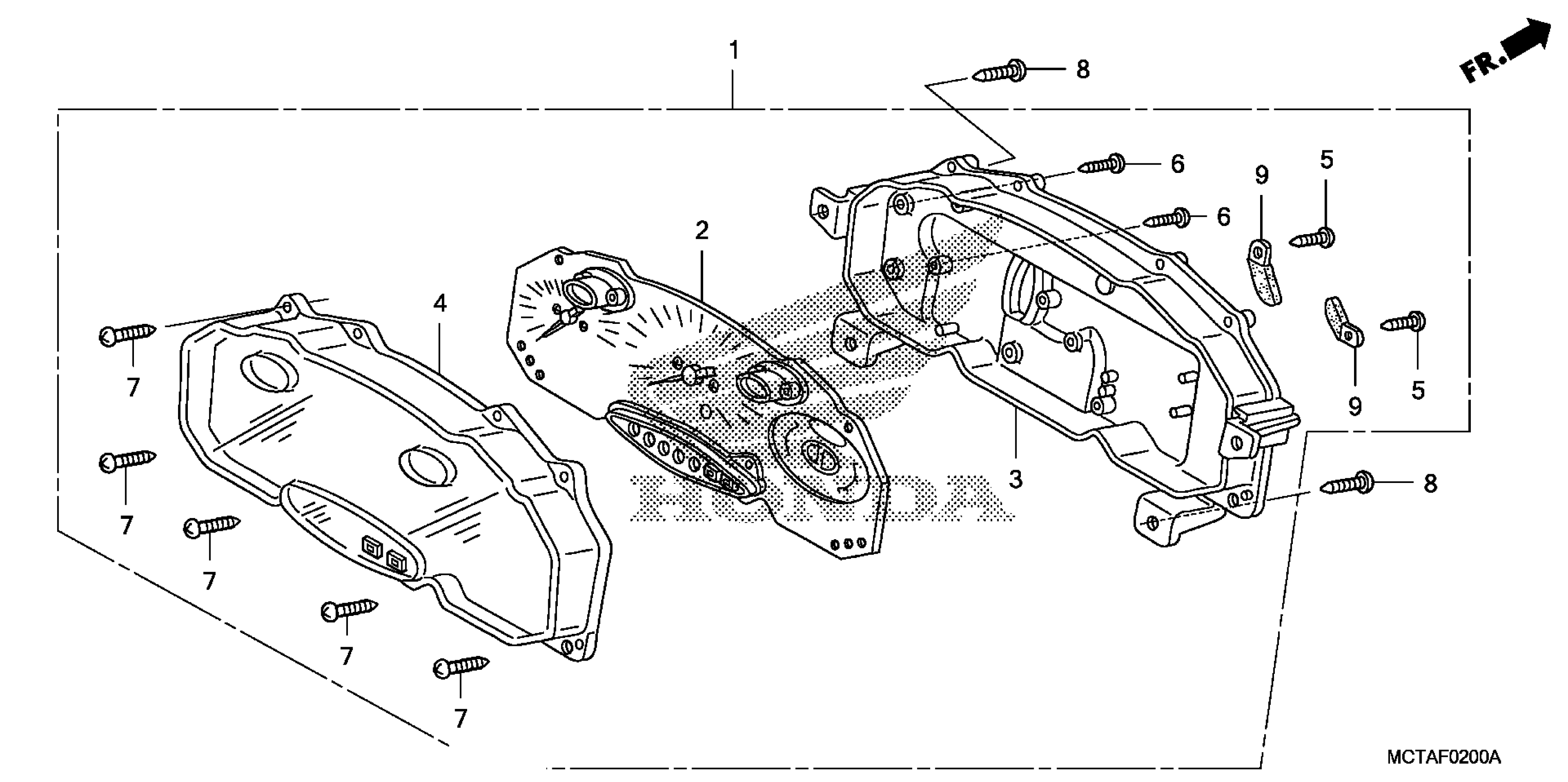

Honda FSC600DAC (09) SILVER WING, JPN, VIN# JH2PF011-9K700001 SPEEDOMETER Diagram

#

Description

Price

1

METER ASSY., COMBINATION (MPH/KPH)(COO) This part replaces 37100-MCT-L01.

37100-MGF-305

Unavailable

1

METER ASSY., COMBINATION (MPH/KPH)(COO) This part replaces 37100-MCT-L02.

37100-MGF-305

Unavailable

1

METER ASSY., COMBINATION (MPH/KPH)(COO)

37100-MGF-305

Unavailable

2

METER, COMBINATION This part replaces 37110-MCT-L01.

37110-MCT-L02

Unavailable

2

METER, COMBINATION

37110-MCT-L02

Unavailable

3

CASE (LOWER)

37211-MCT-691

$92.10

4

LENS ASSY.

37212-MCT-691

$55.55

5

SCREW, TAPPING (4X12)

93901-24320

$0.83

6

SCREW, TAPPING (3X16)

93903-22420

$0.90

7

SCREW, TAPPING (4X16)

93903-24420

$0.83

8

SCREW, TAPPING (5X16)

93903-25310

$0.59

9

CLIP, WIRE (4X50)

94591-45000

$2.80
