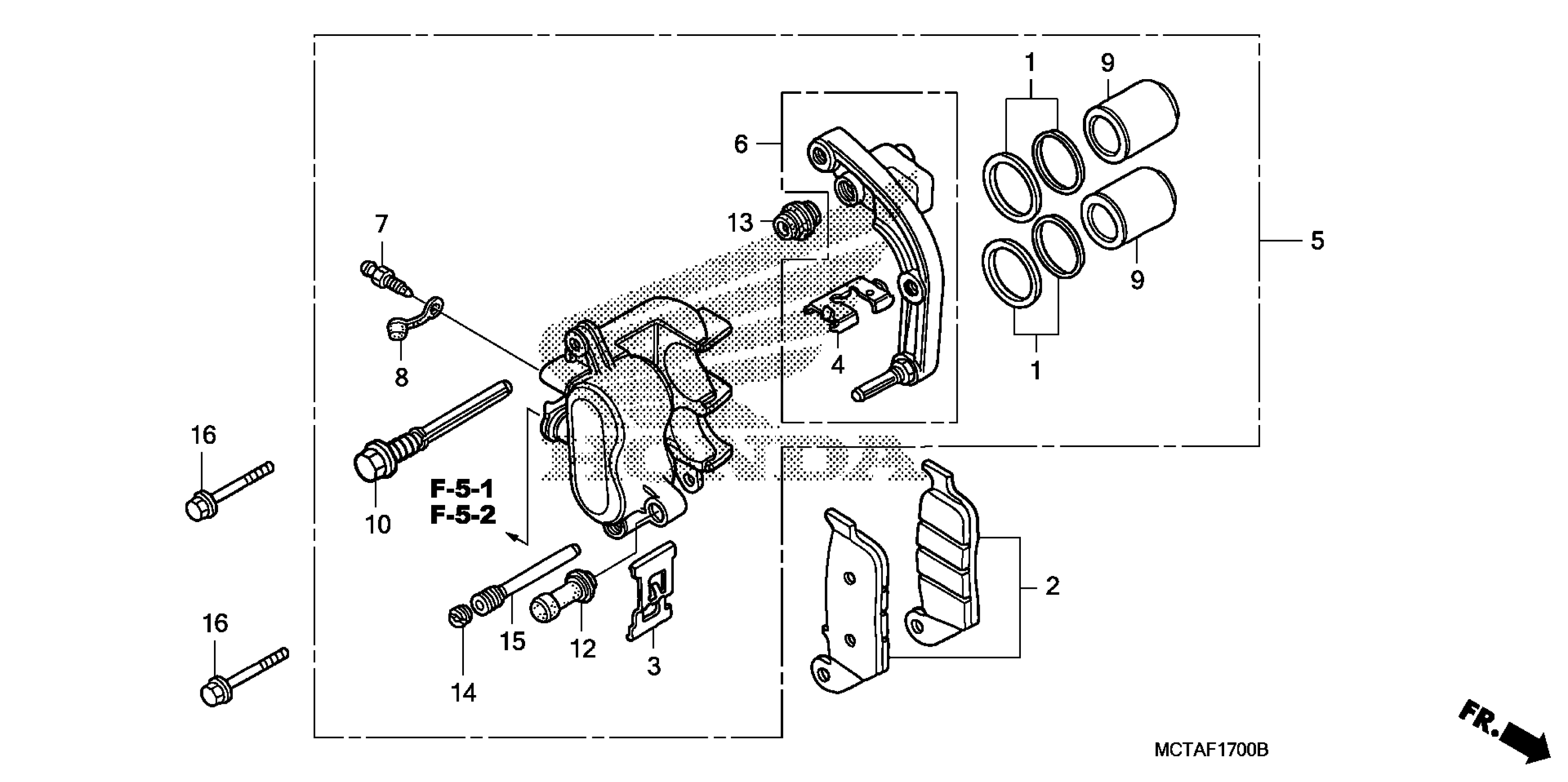

Honda FSC600DAC (09) SILVER WING, JPN, VIN# JH2PF011-9K700001 REAR BRAKE CALIPER Diagram

SEAL SET, PISTON (RIGHT SIDE, QTY-1)

06431-MA3-405

$7.33

PAD SET, RR. This part replaces 06435-MCT-425.

06435-MCT-435

$49.15

PAD SET, RR.

06435-MCT-435

$49.15

SPRING, PAD

43108-MCT-006

$4.92

RETAINER

43112-MCT-911

$4.99

CALIPER SUB-ASSY., RR. (NISSIN)

43150-MCT-912

$330.95

BRACKET SUB-ASSY., RR. CALIPER

43190-MCT-911

$76.92

SCREW, BLEEDER (NISSIN)

43352-568-003

$7.95

CAP, BLEEDER

43353-461-771

$5.05

PISTON (NISSIN)

45107-ML4-006

$37.87

PIN, BOLT

45131-MA3-006

$17.59

BOOT, PIN BUSH (NISSIN)

45132-166-016

$5.46

BOOT B

45133-MA3-006

$5.46

PLUG, PIN

45203-MG3-016

$5.12

PIN, HANGER (NISSIN)

45215-ML7-922

$10.67

BOLT, FLANGE (8X50)

90132-MY2-000

$4.80
