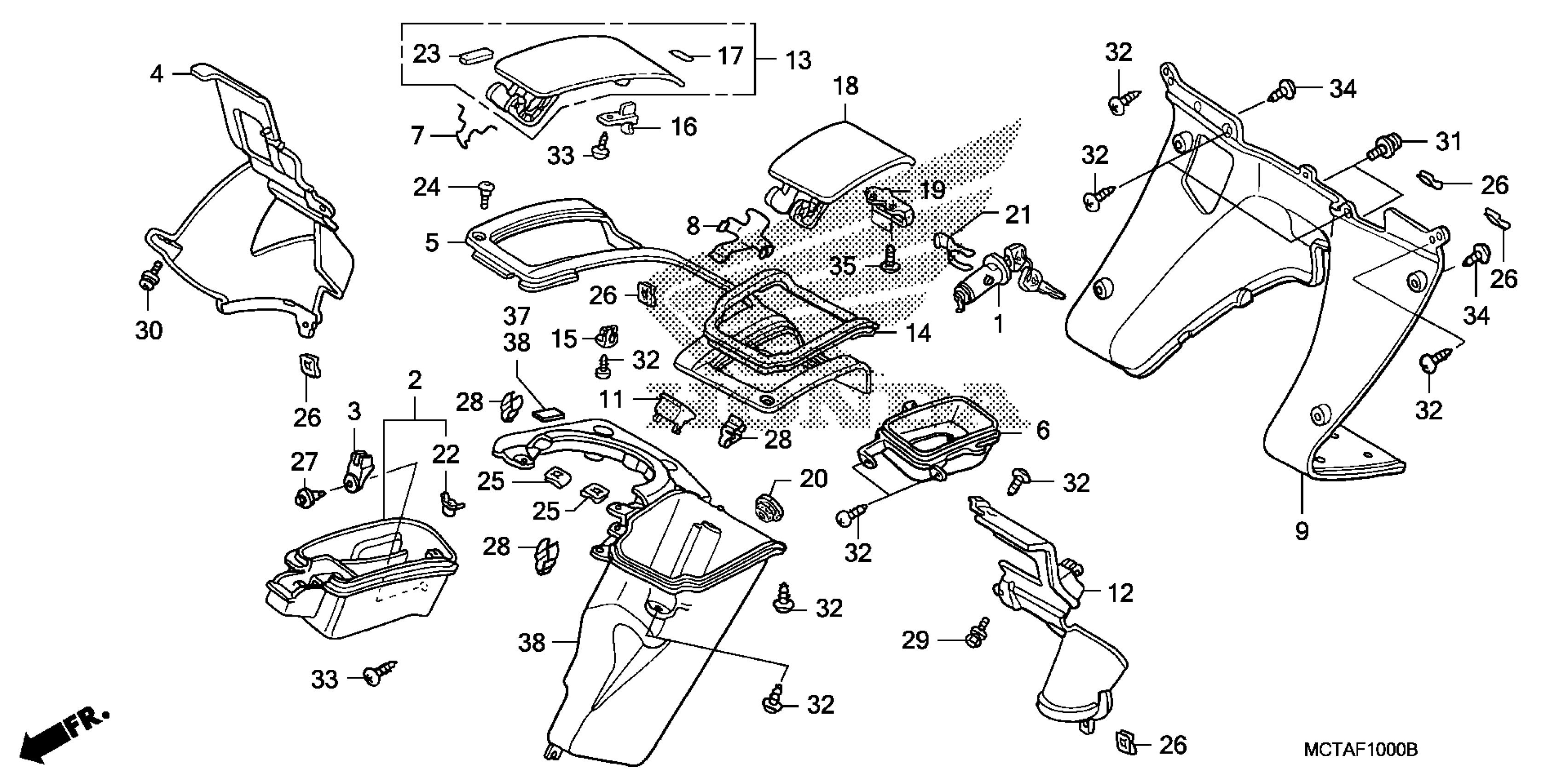

Honda FSC600DAC (06) SILVER WING, JPN, VIN# JH2PF011-6K400001 TO JH2PF011-6K499999 INNER BOX ('06) Diagram

#

Description
Price

1

LOCK ASSY., LID

64228-MCT-000

$26.74

2

POCKET ASSY., R. (INNER)

64250-MCT-020

Unavailable

3

GUIDE, POCKET LID STRIKER

64253-MCT-640

Unavailable

4

COVER, R. FR. AIR DUCT

64306-MCT-000

$15.32

5

COVER (INNER) *PB358M* (DELTA BLUE METALLIC)

64311-MCT-680ZG

Unavailable

6

COVER, BRAKE LEVER

64314-MCT-000

$13.81

7

SPRING, R. POCKET LID

64318-MCT-831

Unavailable

8

SPRING, L. POCKET LID

64319-MCT-831

Unavailable

9

COVER, FLOOR (UPPER)

64331-MCT-000

$98.36

11

CAP, SWITCH

64367-MCT-000

$0.43

12

COVER, L. FR. AIR DUCT

64406-MCT-020

$18.55

13

LID SET, R. POCKET *PB358M* (DELTA BLUE METALLIC)

64460-MCT-692ZL

Unavailable

14

SEAL, POCKET LID

64463-MCT-000

$5.57

15

HOLDER, DAMPER

64464-MCT-000

$3.51

16

STRIKER, POCKET LID

64466-MCT-640

$3.74

17

MARK, PUSH (TYPE1)

64467-MCT-690ZA

Unavailable

18

LID, L. POCKET *PB358M* (DELTA BLUE METALLIC)

64471-MCT-692ZL

Unavailable

19

HOOK, LOCK

64472-MCT-000

$3.81

20

GROMMET B, SIDE PANEL

70529-657-670

$10.17

21

SPRING, LOCK KEY SETTING

75581-MCT-000

$12.26

22

LATCH, TICKET BOX

77235-KPB-000

$3.14

23

RUBBER, FR. PANEL COWL (B)

83507-KV3-830

Unavailable

24

SCREW, SPECIAL (5X17)

90109-KW3-000

$2.80

25

NUT, SPRING (4MM)

90302-KPB-000

$1.38

26

NUT, SPRING (4MM)

90302-SA4-003

$4.91

27

CLIP, AIR IN. DUCT PUSH

90601-PV3-003

$3.80

28

CLIP, SNAP FITTING

90666-S84-A01

$0.58

29

BOLT-WASHER (6X16)

93404-06016-00

$1.48

30

SCREW-WASHER (5X12)

93894-05012-00

$0.61

31

SCREW-WASHER (6X14)

93894-06014-07

$1.17

32

SCREW, TAPPING (4X12)

93903-34310

$0.75

33

SCREW, TAPPING (4X12)

93903-34380

$1.93

34

SCREW, TAPPING (4X16)

93903-34480

$0.83

35

SCREW, TAPPING (5X16) (PO)

93913-15410

$1.03

37

MAT F, SHOCK ABSORBER

64314-MCT-770

$2.43

38

PANEL, RR.

64365-MCT-770

$57.28
