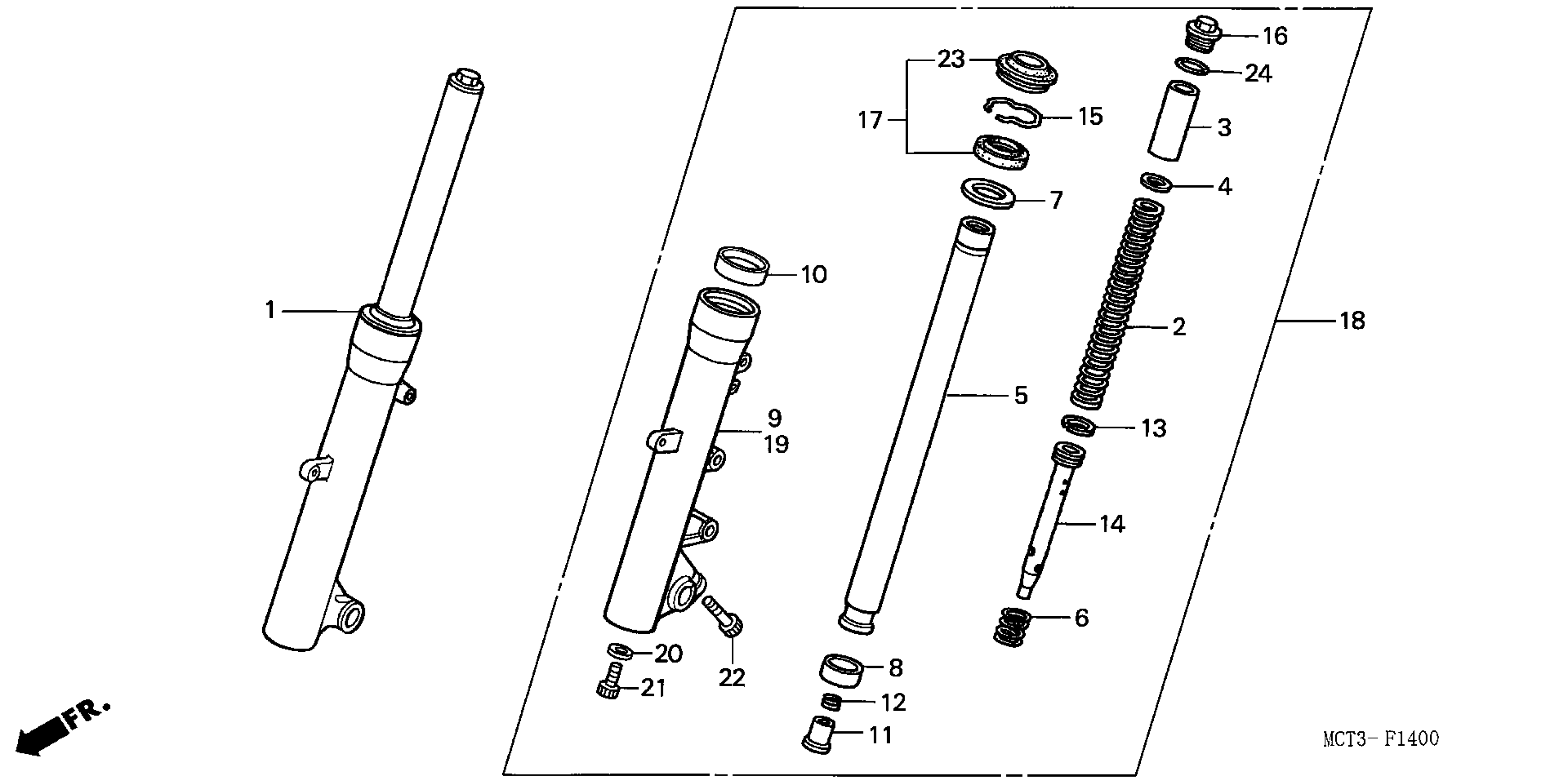

Honda FSC600DAC (05) SILVER WING, JPN, VIN# JH2PF011-5K300001 FRONT FORK Diagram

#

Description
Price

1

FORK ASSY., R. FR. (KAYABA)

51400-MCT-003

Unavailable

2

SPRING, FR. FORK

51401-MCT-003

$49.93

3

SPACER, SPRING

51402-MCT-003

$6.62

4

WASHER

51404-MBA-003

$5.22

5

PIPE, FR. FORK

51410-MCT-003

$250.20

6

SPRING, FR. REBOUND

51411-MBA-003

$6.75

7

WASHER

51412-KA4-004

$6.75

8

BUSH, SLIDER

51415-MCT-003

$8.72

9

CASE, R. (LOWER)

51421-MCT-003

$226.05

10

BUSH, GUIDE

51424-MCT-003

$7.00

11

PIECE, OIL LOCK

51431-MCT-003

$17.84

12

SPRING, OIL LOCK

51433-MCT-003

$4.00

13

RING, PISTON

51437-MCT-003

$4.93

14

PIPE, SEAT

51440-MCT-003

$42.15

15

RING, SNAP

51447-KA4-004

$4.24

16

BOLT, FR. FORK

51450-MCT-003

$34.61

17

SEAL SET, FR. FORK

51490-MCT-003

$17.74

18

FORK ASSY., L. FR. (KAYABA)

51500-MCT-003

$435.20

19

CASE, L. (LOWER)

51521-MCT-003

$226.05

20

WASHER, OIL BOLT (KAYABA)

52442-KA3-731

$2.34

21

BOLT, SOCKET (10X25)

90116-KK0-004

$5.94

22

BOLT, SOCKET (8X25)

90120-MBB-000

$4.08

23

DUST SEAL

91254-MCK-A01

$12.17

24

O-RING (31.7X3.5)

91356-KT1-671

$3.13
