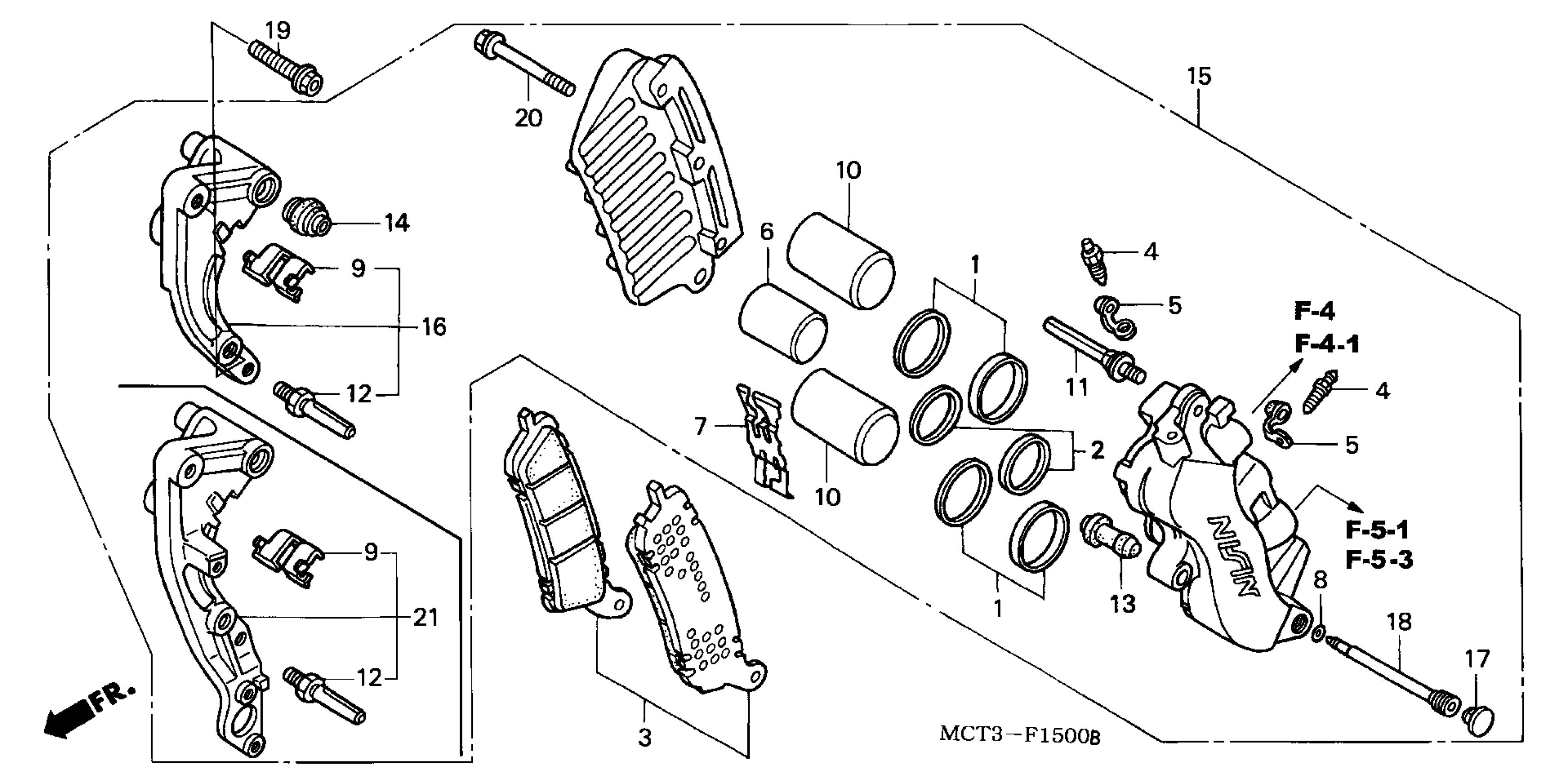

Honda FSC600DAC (05) SILVER WING, JPN, VIN# JH2PF011-5K300001 FRONT BRAKE CALIPER Diagram

SEAL SET, PISTON (RIGHT SIDE, QTY-1)

06431-MA3-405

$7.33

SEAL SET, PISTON (RIGHT SIDE, QTY-1 & LEFT SIDE QTY-1, TOTAL QTY-2)

06451-MZ2-405

$12.55

PAD SET This part replaces 06455-MCT-691.

06455-MCT-692

$54.41

PAD SET

06455-MCT-692

$54.41

SCREW, BLEEDER (NISSIN)

43352-568-003

$7.95

CAP, BLEEDER

43353-461-771

$5.05

PISTON (22 A)

45107-MCT-006

$29.49

SPRING, PAD

45108-MCT-006

$6.72

RING, STOPPER

45111-MAJ-G41

$3.80

RETAINER, BRACKET

45112-MZ2-006

$8.85

PISTON (27 A)

45117-MCT-006

$37.00

PIN, BOLT

45131-MA3-006

$17.59

BOLT A, PIN (NISSIN)

45131-ML7-921

$15.44

BOOT, PIN BUSH (NISSIN)

45132-166-016

$5.46

BOOT B

45133-MA3-006

$5.46

CALIPER SUB-ASSY., L. FR. (NISSIN)

45150-MCT-016

Unavailable

BRACKET SUB-ASSY., L. FR. CALIPER

45190-KFG-641

Unavailable

PLUG, PIN

45203-MCC-006

$2.89

PIN, HANGER

45215-MAJ-G41

$6.45

BOLT, FLANGE (8X32) (SAGA)

90131-KBV-003

$4.75

BOLT, FLANGE (8X45)

90135-MAJ-G41

$6.46
