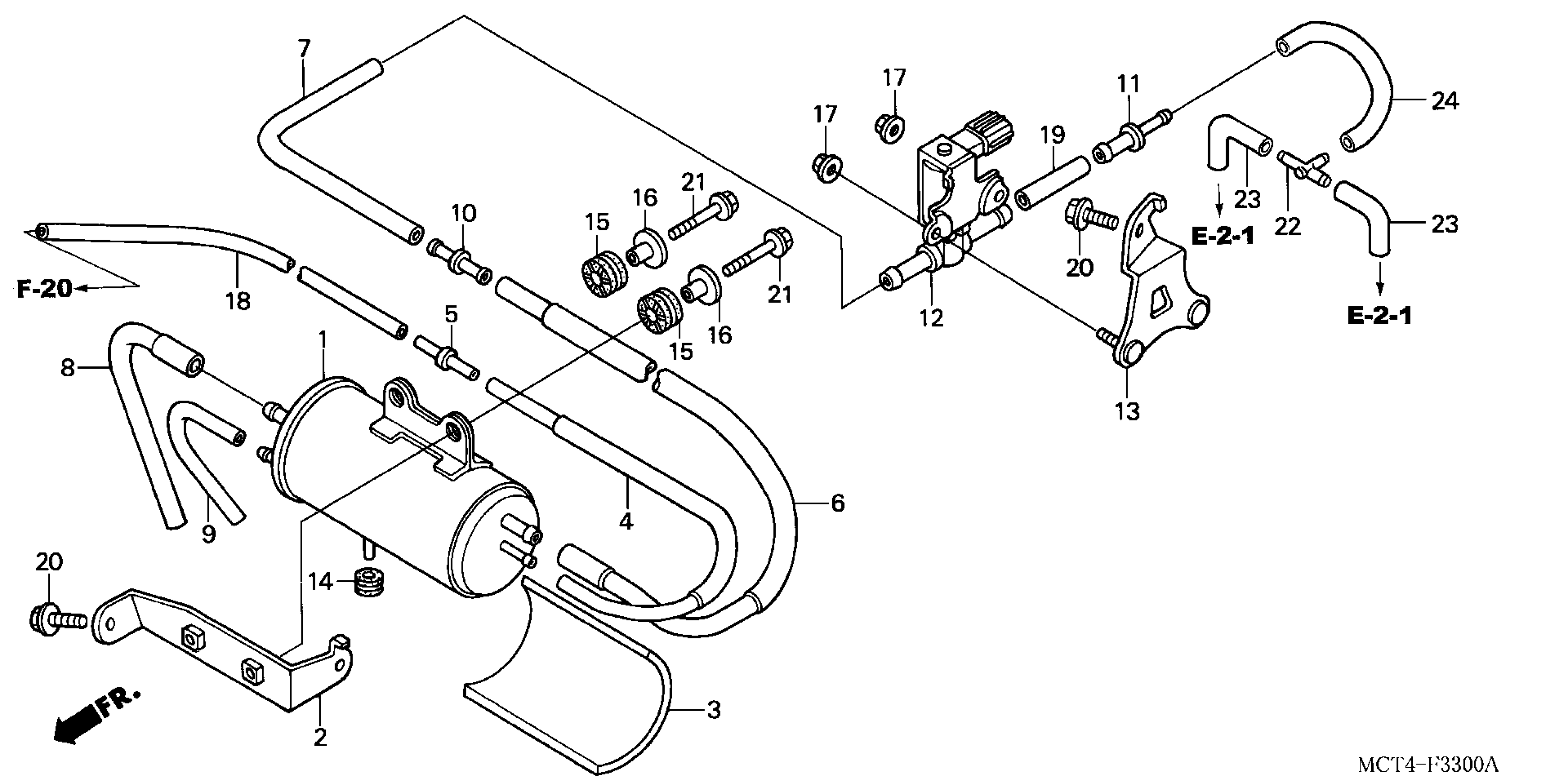

Honda FSC600DAC (05) SILVER WING, JPN, VIN# JH2PF011-5K300001 EVAP CANISTER Diagram

#

Description
Price

1

CANISTER

17410-MCT-681

$186.54

2

STAY, CANISTER

17411-MCT-680

$15.08

3

PROTECTOR, HEAT

17413-MCT-680

$3.79

4

TUBE, CANISTER IN.

17414-MCT-680

Unavailable

5

JOINT (3.5) (TWO-WAY)

17414-PC6-660

$6.45

6

TUBE, CANISTER OUTLET

17415-MCT-680

$15.02

7

TUBE, P.C.V. IN.

17416-MCT-680

$5.62

8

TUBE, AIR

17417-MCT-681

$4.33

9

TUBE, DRAIN

17418-MCT-682

$3.39

10

JOINT, TUBE

19102-KT8-000

$6.61

11

JOINT, TUBE

19126-KM1-010

$3.90

12

VALVE, PURGE CONTROL SOLENOID

36162-MCT-681

$127.43

13

STAY, P.C.V.

50173-MCT-680

$15.61

14

GROMMET, ENGINE COVER

80103-GJ5-000

$2.06

15

RUBBER, FUEL TANK MOUNTING

84703-MN5-000

$5.28

16

COLLAR (6.2X13)

90501-MA3-720

$4.78

17

NUT, FLANGE (5MM)

94050-05000

$1.49

18

BULK HOSE, FUEL (3.5X3000) (95001-3500(95001-35001-60M)

95001-35003-60M

$20.85

19

BULK HOSE, FUEL (7.5X8000) (7.3X350) (BULK HOSE: 95001-75008-40M)

95001-75008-60M

$103.82

20

BOLT, FLANGE (6X12) BOLT, SPECIAL (6X12)

95701-06012-00

$1.62

21

BOLT, FLANGE (6X25)

95701-06025-00

$1.80

22

JOINT, VACUUM TUBE (A)

17201-MG9-000

$15.94

23

BULK HOSE, VACUUM (3.5X1000) (3.5X130) (BULK HOSE: 95005-35008-10M)

95005-35001-20M

$9.67

24

BULK HOSE, VACUUM (3.5X1000) (3.5X130) (BULK HOSE: 95005-35008-10M)

95005-35001-20M

$9.67
