Partiron

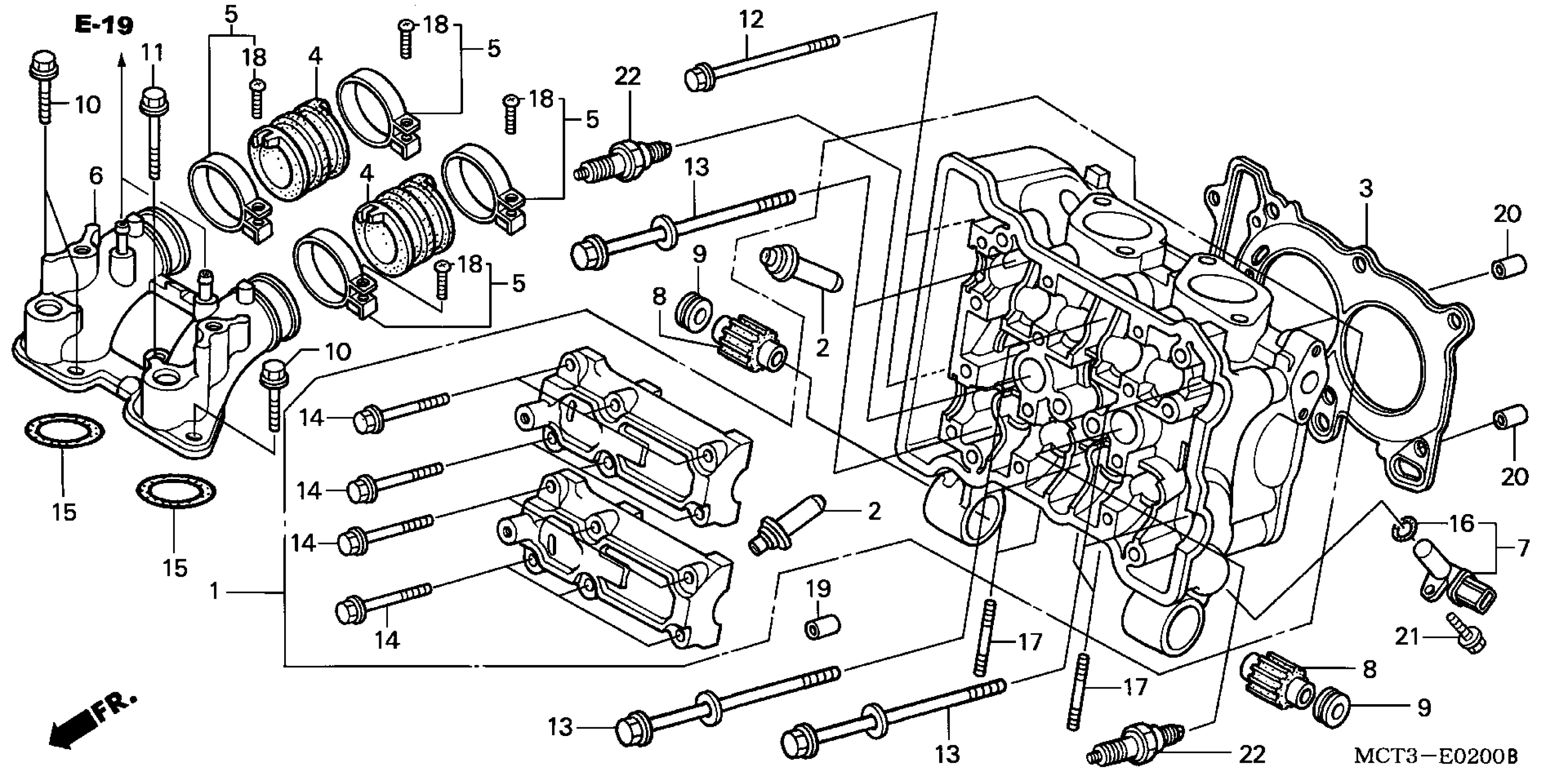

Honda FSC600AC (02) SILVER WING, JPN, VIN# JH2PF011-2K000001 TO JH2PF011-2K099999 CYLINDER HEAD ('02) Diagram

#

Description
Price

1

HEAD ASSY. This part replaces 12010-MCT-000.

12010-MCT-940

Unavailable

1

HEAD ASSY.

12010-MCT-940

Unavailable

2

GUIDE, VALVE (OVER SIZE)

12204-MT4-305

$21.81

3

GASKET, CYLINDER HEAD

12251-MCT-D61

$35.19

3

GASKET, CYLINDER HEAD This part replaces 12251-MCT-003.

12251-MCT-D61

$35.19

4

INSULATOR, THROTTLE BODY

16210-MCT-000

$16.46

5

BAND, INSULATOR

16218-MCT-000

$4.26

6

PIPE, INLET

17110-MCT-010

Unavailable

7

PULSER ASSY., CAM (Honda Code 6959951)

36140-MCT-003

$153.10

8

RUBBER ASSY., MOUNT (A)

50210-MCT-681

Unavailable

9

RUBBER C, MOUNT

50203-MCT-000

$10.49

10

BOLT, FLANGE (6X20) (NSHF)

90004-GHB-650

$1.78

11

BOLT, FLANGE (6X40) (NSHF)

90004-GHB-710

$3.79

12

BOLT, FLANGE (6X110) (NSHF)

90004-GHB-840

$2.65

13

BOLT-WASHER (9X155)

90007-MCT-000

$4.93

14

BOLT, FLANGE (6X45.5)

90017-MA6-000

$3.12

15

O-RING (37X2)

91304-MCT-003

$2.42

16

O-RING (16X2.1) (NOK) (Honda Code 3301793)

91309-PX4-003

$2.80

17

BOLT 2, STUD (6X22)

92900-06022-0E

$1.32

18

SCREW, PAN (5X28)

93500-05028-0G

$0.62

19

PIN, DOWEL (8X14) (Honda Code 0069310)

94301-08140

$2.04

20

PIN A, DOWEL (12X20)

94301-12200

$2.25

21

BOLT, FLANGE (6X18) BOLT, HEX. (6X18)

95701-06018-00

$1.48

22

SPARK PLUG (CR8EH9) (NGK)

98059-58916

$7.31

22

SPARK PLUG (CR9EH-9) (NGK) This part replaces 98059-58926.

98059-59916

$6.79

22

SPARK PLUG (CR9EH-9) (NGK) This part replaces 98059-59910.

98059-59916

$6.79

22

SPARK PLUG (CR9EH-9) (NGK)

98059-59916

$6.79

22

SPARK PLUG (CR9EH-9) (NGK) This part replaces 98059-59926.

98059-59916

$6.79
