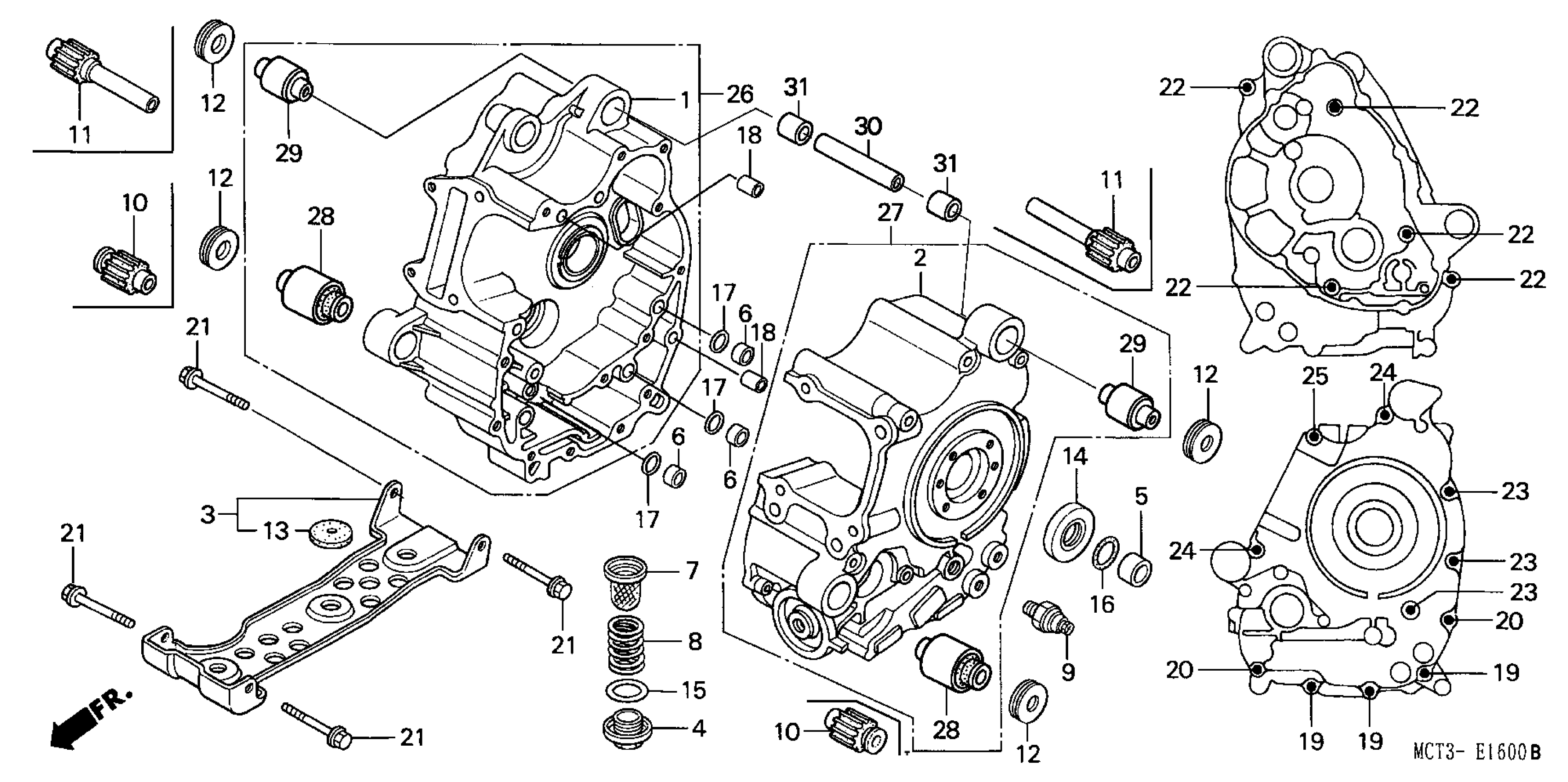

Honda FSC600AC (02) SILVER WING, JPN, VIN# JH2PF011-2K000001 TO JH2PF011-2K099999 CRANKCASE Diagram

CRANKCASE, R. This part replaces 11100-MCT-000.

11100-MCT-010

$388.21

CRANKCASE, R.

11100-MCT-010

$388.21

CRANKCASE, L. This part replaces 11200-MCT-000.

11200-MCT-010

$388.21

CRANKCASE, L.

11200-MCT-010

$388.21

PLATE, SKID

11410-MCT-000

$29.69

CAP, TAPPET ADJUSTING HOLE This part replaces 12361-KK0-000.

12361-HP5-600

$18.50

COLLAR, L. CRANKCASE SIDE

13312-MCT-000

$10.15

COLLAR, O-RING

15155-300-000

$3.47

SCREEN, OIL FILTER

15421-107-000

$6.31

SPRING, OIL FILTER SCREEN

15426-107-000

$3.63

SWITCH ASSY., OIL PRESSURE (DENSO)

35500-MJ4-024

$42.43

RUBBER ASSY., MOUNT (A)

50210-MCT-681

Unavailable

RUBBER B, MOUNT

50202-MCT-000

Unavailable

RUBBER C, MOUNT

50203-MCT-680

$10.75

RUBBER C, BATTERY DISTANCE

83618-307-000

$2.85

OIL SEAL (39.8X64X7)

91201-MCT-003

$11.25

O-RING (35.5X3) (NOK)

91301-428-003

$2.21

O-RING (22.5X2.7)

91302-PC9-003

$4.39

O-RING (14.8X2.4) (ARAI)

91303-KF0-003

$1.69

PIN, DOWEL (10X16) (Honda Code 0058206)

94301-10160

$2.28

BOLT, FLANGE (6X60)

95701-06060-00

$1.49

BOLT, FLANGE (6X85) (Honda Code 2545317)

95701-06085-00

$1.64

BOLT, FLANGE (8X30)

95701-08030-00

$1.49

BOLT, FLANGE (8X85)

95701-08085-00

$2.48

BOLT, FLANGE (8X110)

95701-08110-00

$2.88

BOLT, FLANGE (8X130)

95701-08130-00

$2.23

BOLT, FLANGE (8X140)

95701-08140-00

$2.84
