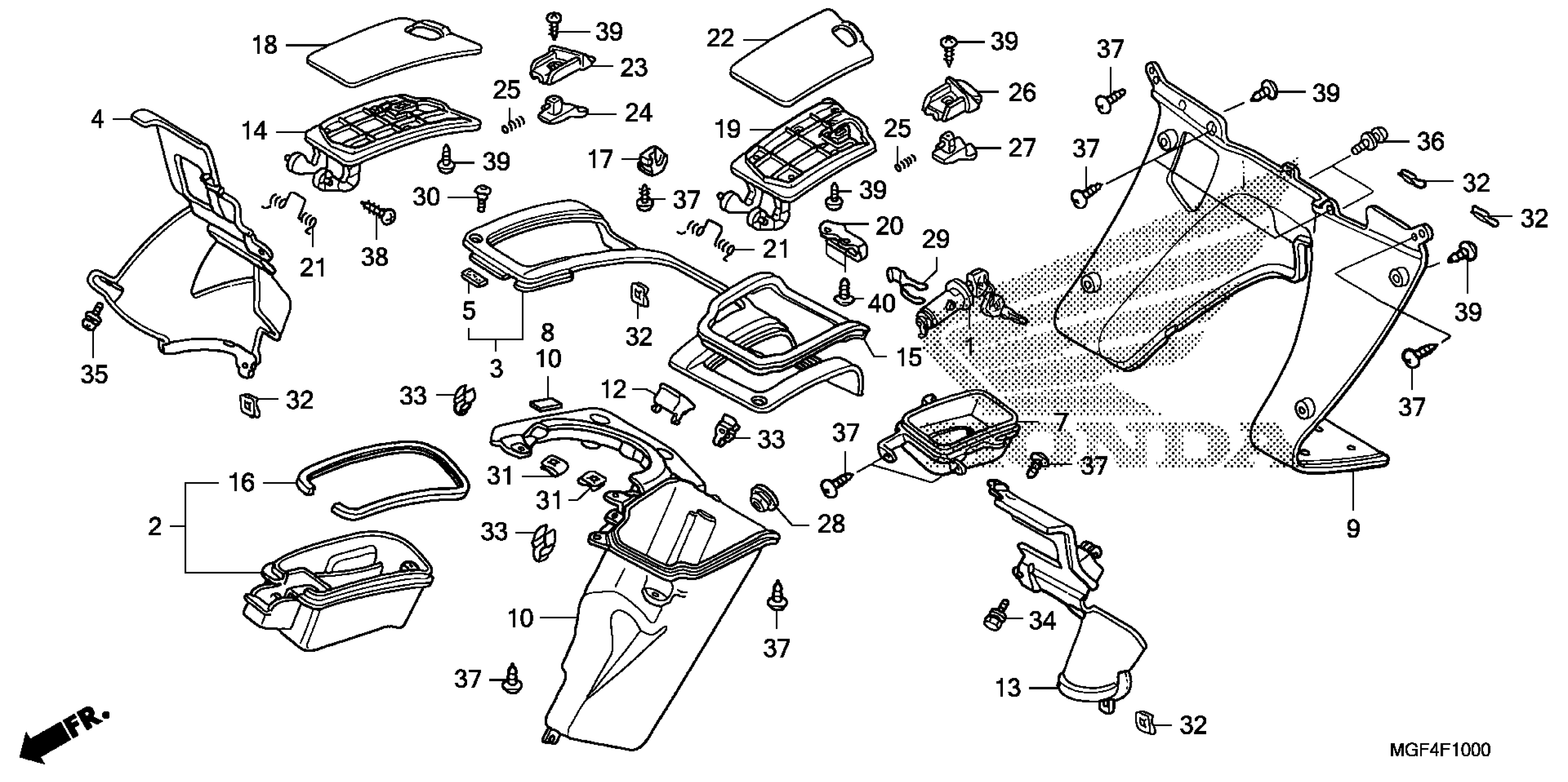

Honda FSC600AAC (13) SILVER WING ABS, JPN, VIN# JH2PF014-DK100001 TO JH2PF014-DK199999 INNER BOX Diagram

LOCK ASSY., LID

64228-MCT-000

$29.36

POCKET, R. (INNER)

64250-MCT-961

$49.21

COVER (INNER) *NH1* (BLACK)

64305-MCT-772ZA

$128.02

COVER, R. FR. AIR DUCT

64306-MCT-000

$16.82

MAT C, SHOCK ABSORBER

64310-MCT-770

$2.84

COVER, BRAKE LEVER

64314-MCT-000

$15.16

MAT F, SHOCK ABSORBER

64314-MCT-770

$2.67

COVER, FLOOR (UPPER)

64331-MCT-000

$108.03

PANEL, RR.

64365-MCT-770

$62.90

CAP, SWITCH

64367-MCT-000

$1.49

COVER, L. FR. AIR DUCT

64406-MCT-020

$20.38

LID, R. POCKET (INNER)

64461-MCT-960

$29.66

SEAL, POCKET LID

64463-MCT-000

$6.11

SEAL, R. POCKET LID

64463-MCT-961

$6.61

HOLDER, DAMPER

64464-MCT-000

$3.85

LID, R. POCKET (OUTER)

64468-MCT-960

$31.02

LID, L. POCKET (INNER)

64471-MCT-960

$22.64

HOOK, LOCK

64472-MCT-000

$4.18

SPRING, POCKET

64474-MCT-960

$5.75

LID, L. POCKET (OUTER)

64478-MCT-960

$31.02

KNOB, R. POCKET LID OPENER

64480-MCT-960

$8.52

HOOK, R. POCKET LID OPENER

64481-MCT-960

$5.89

SPRING, RETURN

64483-MCT-960

$3.00

KNOB, L. POCKET LID OPENER

64490-MCT-960

$8.52

HOOK, L. POCKET LID OPENER

64491-MCT-960

$5.67

GROMMET B, SIDE PANEL

70529-657-670

$10.66

SPRING, LOCK KEY SETTING

75581-MCT-000

$13.46

SCREW, SPECIAL (5X17)

90109-KW3-000

$3.01

NUT, SPRING (4MM)

90302-KPB-000

$1.51

NUT, SPRING (4MM)

90302-SA4-003

$5.44

CLIP, SNAP FITTING

90666-S84-A01

$1.49

BOLT-WASHER (6X16)

93404-06016-00

$1.55

SCREW-WASHER (5X12)

93894-05012-00

$1.49

SCREW-WASHER (6X14)

93894-06014-07

$1.49

SCREW, TAPPING (4X12)

93903-34310

$1.49

SCREW, TAPPING (4X12)

93903-34380

$2.18

SCREW, TAPPING (4X16)

93903-34480

$1.49

SCREW, TAPPING (5X16)

93903-35310

$1.49
