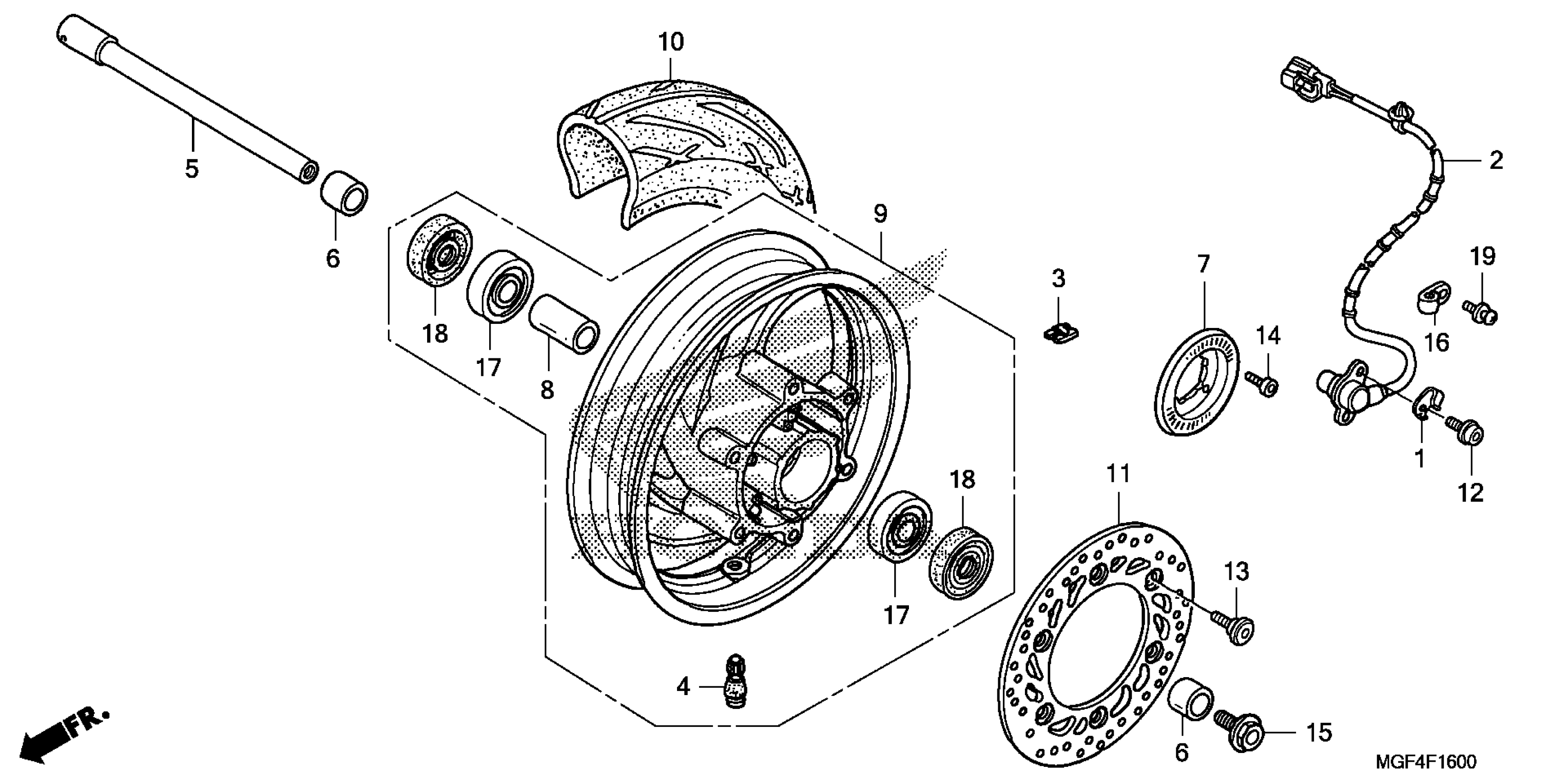

Honda FSC600AAC (13) SILVER WING ABS, JPN, VIN# JH2PF014-DK100001 TO JH2PF014-DK199999 FRONT WHEEL Diagram

Description

Price

GUIDE, SENSOR WIRE

38515-MCT-910

$7.97

SENSOR, FR. WHEEL SPEED

38520-MCT-911

$186.08

WEIGHT, BALANCE (10) WEIGHT, BALANCE (20G)

42704-MCF-D60

$12.74

WEIGHT, BALANCE (20) WEIGHT, BALANCE (30G)

42705-MCF-D60

$15.38

WEIGHT, BALANCE (30) WEIGHT, BALANCE (10G)

42706-MCF-D60

$14.48

VALVE, RIM (IRC)

42753-GM9-743

$8.68

AXLE, FR. WHEEL

44301-MCT-000

$50.92

COLLAR, FR. WHEEL SIDE

44311-MCT-000

$12.77

PULSER RING, FR.

44515-MCT-910

$45.77

COLLAR, FR. AXLE DISTANCE

44620-MZ2-A21

$14.25

WHEEL SUB-ASSY., FR. NH295M (COO) (SPARKLING SILVER METALLIC)

44650-MGF-306ZA

$501.69

TIRE, FR. (120/80-14) (M/C 58S) (IRC)

44711-MCT-025

Unavailable

DISK, FR. BRAKE

45351-MCT-911

$249.34

BOLT, SOCKET (6X14)

90091-KV3-700

$3.13

BOLT, DISK (8X24) (TSUKIBOSHI) This part replaces 90105-MBB-000.

90105-MV9-003

$6.21

BOLT, DISK (8X24) (TSUKIBOSHI)

90105-MV9-003

$6.21

BOLT, TORX (5X10)

90131-KPB-751

$2.66

BOLT, FR. AXLE

90305-ML7-000

$10.50

CLIP (7.5MM)

90627-ZA8-E50

$2.20

BEARING, RADIAL BALL (6004UU)

91054-MAM-003

$32.23

BEARING, RADIAL BALL (6004UU) This part replaces 91054-MN8-741.
