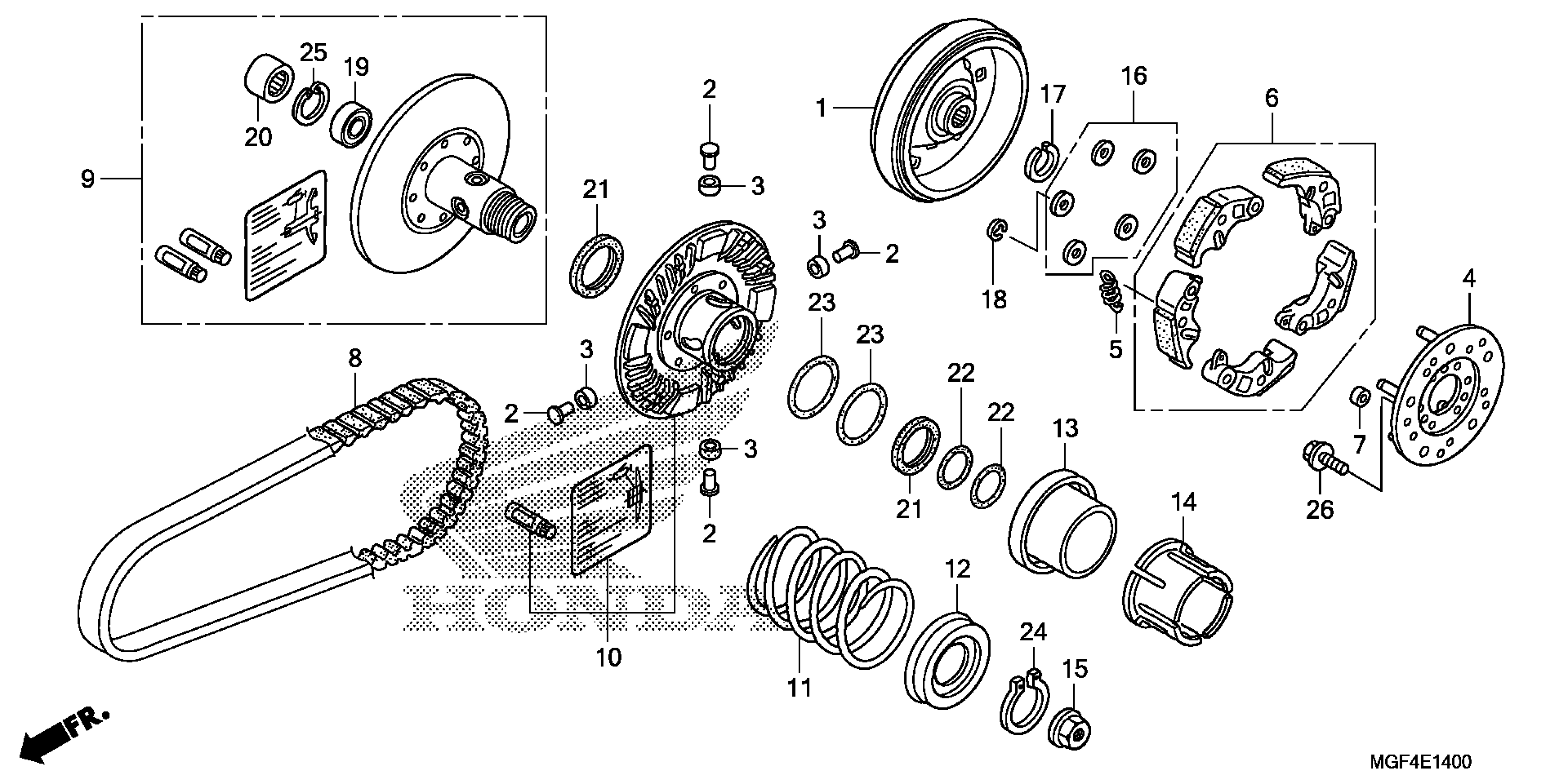

Honda FSC600AAC (13) SILVER WING ABS, JPN, VIN# JH2PF014-DK100001 TO JH2PF014-DK199999 DRIVEN FACE Diagram

CLUTCH OUTER

22100-MFT-640

$132.87

PIN, ROLLER GUIDE

22231-HE0-000

$5.13

ROLLER, GUIDE

22232-HE0-000

$7.51

PLATE, DRIVE

22350-MCT-000

$42.80

SPRING, CLUTCH

22401-MCT-000

$4.75

WEIGHT SET, CLUTCH

22535-MCT-325

$100.43

RUBBER, CLUTCH DAMPER

22804-GB2-000

$3.88

BELT, DRIVE

23100-MCT-003

$196.35

FACE SET, DRIVEN

23205-MCT-305

$150.13

FACE SET, MOVABLE DRIVEN

23221-MCT-315

$114.13

SPRING, DRIVEN FACE

23233-MCT-000

$31.07

SEAT, DRIVEN SPRING

23236-MCT-000

$18.62

COLLAR, SEAL

23237-MCT-000

$19.00

COLLAR, SPRING GUIDE

23238-MCT-000

$11.74

NUT, HEX. (16MM)

90381-HA0-000

$7.88

WASHER SET, THRUST

90442-MCT-305

$8.97

CIRCLIP (OUTER) (30)

90603-MCT-003

$2.46

CIRCLIP (7MM)

90605-166-720

$1.80

BEARING, RADIAL BALL (6003U)

91004-MCT-003

$13.49

BEARING, NEEDLE (27X36X23)

91101-MCT-003

$14.34

SEAL, DRIVEN FACE (48X56X4)

91211-MCT-003

$7.98

O-RING (36.5X1.0)

91353-MCT-003

$2.66

O-RING (54.8X1.9)

91387-SM4-J61

$3.64

CIRCLIP (OUTER) (45MM)

94510-45000

$2.05

CIRCLIP (INNER) (35MM)

94520-35000

$1.84

BOLT, FLANGE (8X16)

95701-08016-00

$1.80
