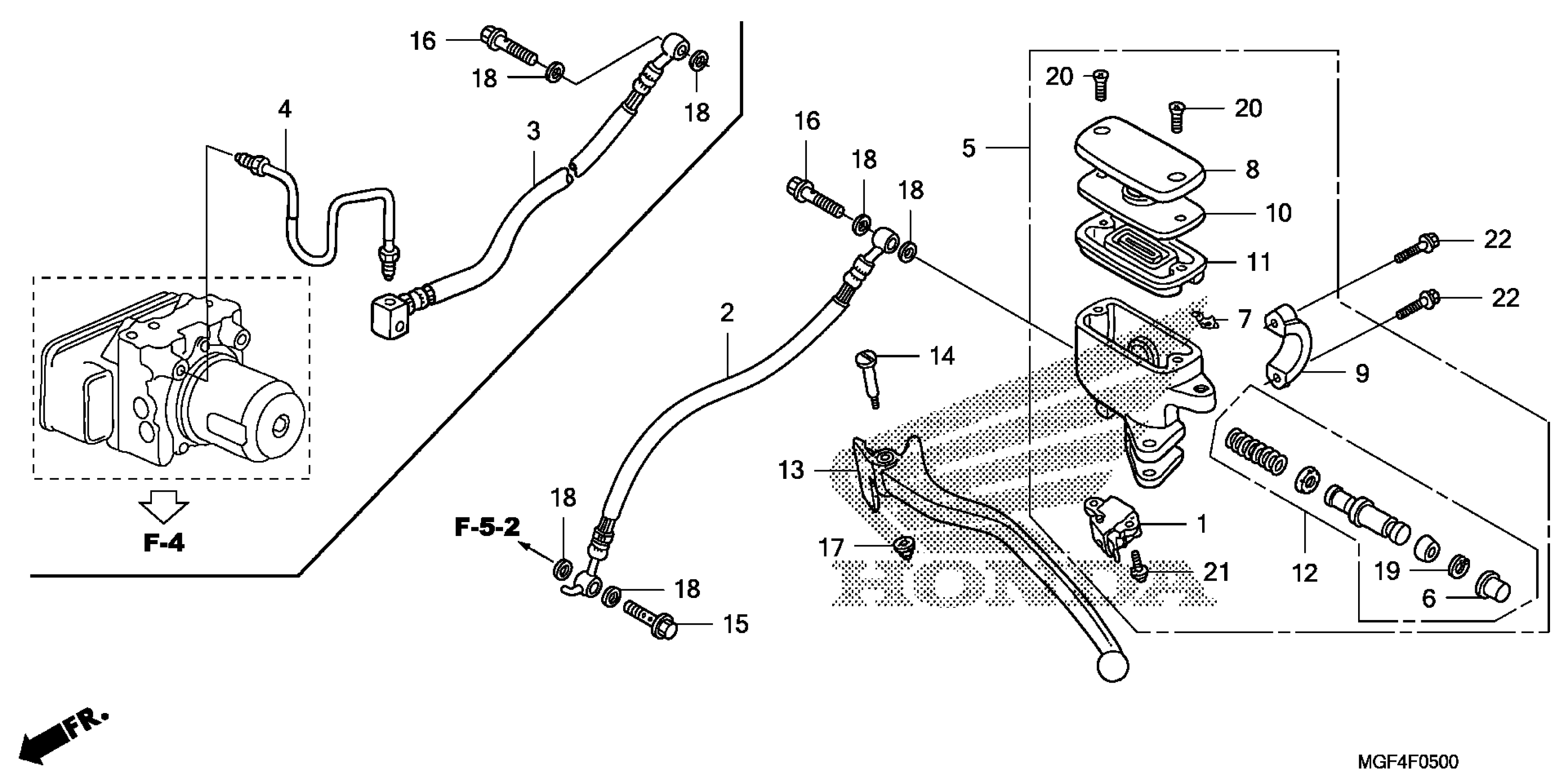

Honda FSC600AAC (12) SILVER WING ABS, JPN, VIN# JH2PF014-CK900001 TO JH2PF014-CK999999 REAR BRAKE MASTER CYLINDER Diagram

SWITCH ASSY., FR. STOP (RR.) This part replaces 35340-KFG-000.

35340-KFG-003

$25.51

SWITCH ASSY., FR. STOP (RR.)

35340-KFG-003

$25.51

MAIN HOSE, RR. BRAKE

43311-MCT-911

$40.82

PIPE B, RR. BRAKE

43312-MCT-910

$7.34

MASTER CYLINDER SUB-ASSY., RR. BRAKE (NISSIN)

43510-MCT-006

$206.35

MASTER CYLINDER SUB-ASSY., RR. BRAKE (NISSIN) This part replaces 43510-MGF-305.

43510-MCT-006

$206.35

BOOT

45504-410-003

$11.17

PROTECTOR

45512-MA6-006

$4.09

CAP, MASTER CYLINDER (NISSIN)

45513-MM5-016

$20.57

HOLDER, MASTER CYLINDER

45517-166-006

$12.44

PLATE, DIAPHRAGM (NISSIN)

45518-MM5-006

$9.79

DIAPHRAGM (NISSIN)

45520-MM5-006

$13.87

MASTER CYLINDER SET

45530-471-831

Unavailable

LEVER, L. HANDLEBAR (COO)

53178-MGF-305

$20.24

BOLT, R. HANDLEBAR PIVOT

90114-MA5-671

Unavailable

BOLT, OIL (10X22) (SAGA)

90145-MS9-612

$6.99

NUT, CAP (6MM)

90201-415-000

$1.99

WASHER, OIL BOLT

90545-300-000

$6.56

CIRCLIP

90651-MA5-671

$2.38

SCREW, FLAT (4X12)

93600-04012-0G

$0.84

SCREW, FLAT (4X12) This part replaces 93600-04012-1G.

93600-04012-0G

$0.84

SCREW-WASHER (4X12)

93893-04012-07

$1.24

SCREW-WASHER (4X12) This part replaces 93893-04012-17.

93893-04012-07

$1.24

BOLT, FLANGE (6X22)

96001-06022-07

$1.71
