Description

Price

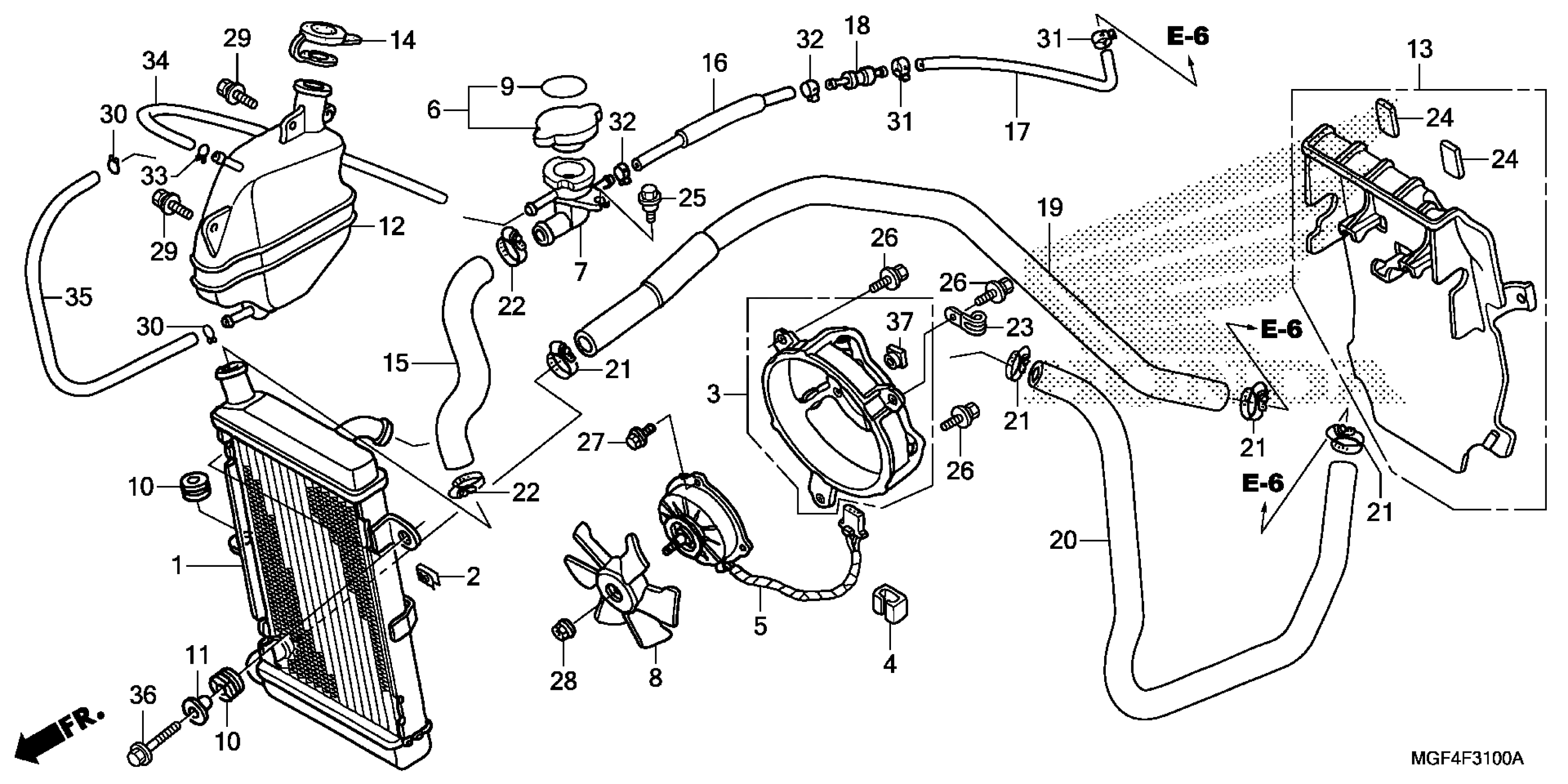

1

RADIATOR (COO)

19010-MGF-305

$458.29

2

NUT, SETTING (6MM)

19014-KEA-003

$2.95

3

SHROUD (COO)

19015-MGF-305

$33.79

4

CLIP, HARNESS (T.RAD)

19017-PK1-004

$8.91

5

MOTOR ASSY., FAN

19030-MCT-000

$278.31

6

CAP, RADIATOR

19037-GEE-710

$27.80

7

NECK, FILLER

19039-KM1-004

$27.09

8

FAN, COOLING (TOYO)

19040-MF5-751

$58.41

9

LABEL, RADIATOR CAP

19046-PAA-A00

$3.40

10

RUBBER, RADIATOR MOUNTING

19051-KA3-830

$3.16

11

COLLAR, RADIATOR MOUNTING This part replaces 19052-MN8-000.

19052-MGH-640

$2.29

11

COLLAR, RADIATOR MOUNTING

19052-MGH-640

$2.29

12

TANK, RADIATOR RESERVE (COO)

19101-MGF-305

$31.59

13

DUCT, AIR IN.

19103-MCT-000

$29.35

14

CAP, RESERVE TANK

19104-MB0-700

$11.16

15

HOSE, FILLER

19126-MCT-000

$11.93

16

TUBE A, AIR

19128-MCT-940

$8.00

17

TUBE B, AIR

19131-MCT-010

$7.74

18

JOINT, JIGGLE VALVE

19410-MCT-000

$17.28

19

HOSE, RADIATOR (LOWER)

19501-MEF-010

$45.51

20

HOSE, RADIATOR (UPPER)

19502-MCT-000

$44.88

21

CLAMP, HOSE (28-36MM)

19516-MCT-690

$4.51

22

CLAMP, HOSE (24-32MM)

19516-ML7-691

$13.22

23

CLIP, PULSER WIRE

32925-958-000

$2.76

24

CUSHION, RR. COMBINATION LIGHT

80103-GN5-900

$2.47

25

BOLT, FLANGE (6MM)

90111-162-000

$2.66

26

BOLT-WASHER (6X16)

90120-KCR-003

$4.19

27

BOLT, FLANGE (5X10)

90196-MBB-003

$2.46

28

NUT, SERRATE (5MM)

90315-MK3-003

$2.15

29

BOLT-WASHER (6X12)

93404-06012-00

$1.63

30

CLIP, TUBE (B12)

95002-02120

$1.79

31

CLAMP, TUBE (D10)

95002-41000-08

$2.16

32

CLAMP, TUBE (D12.5)

95002-41250-08

$2.31

33

CLIP, TUBE (C11)

95002-70000

$1.51

34

BULK HOSE, VACUUM (7X3000) (7X730)

95005-70003-30M

Unavailable

35

BULK HOSE (7.3X1000)

95005-75001-20M

$30.96

36

BOLT, FLANGE (6X22)

95701-06022-08
