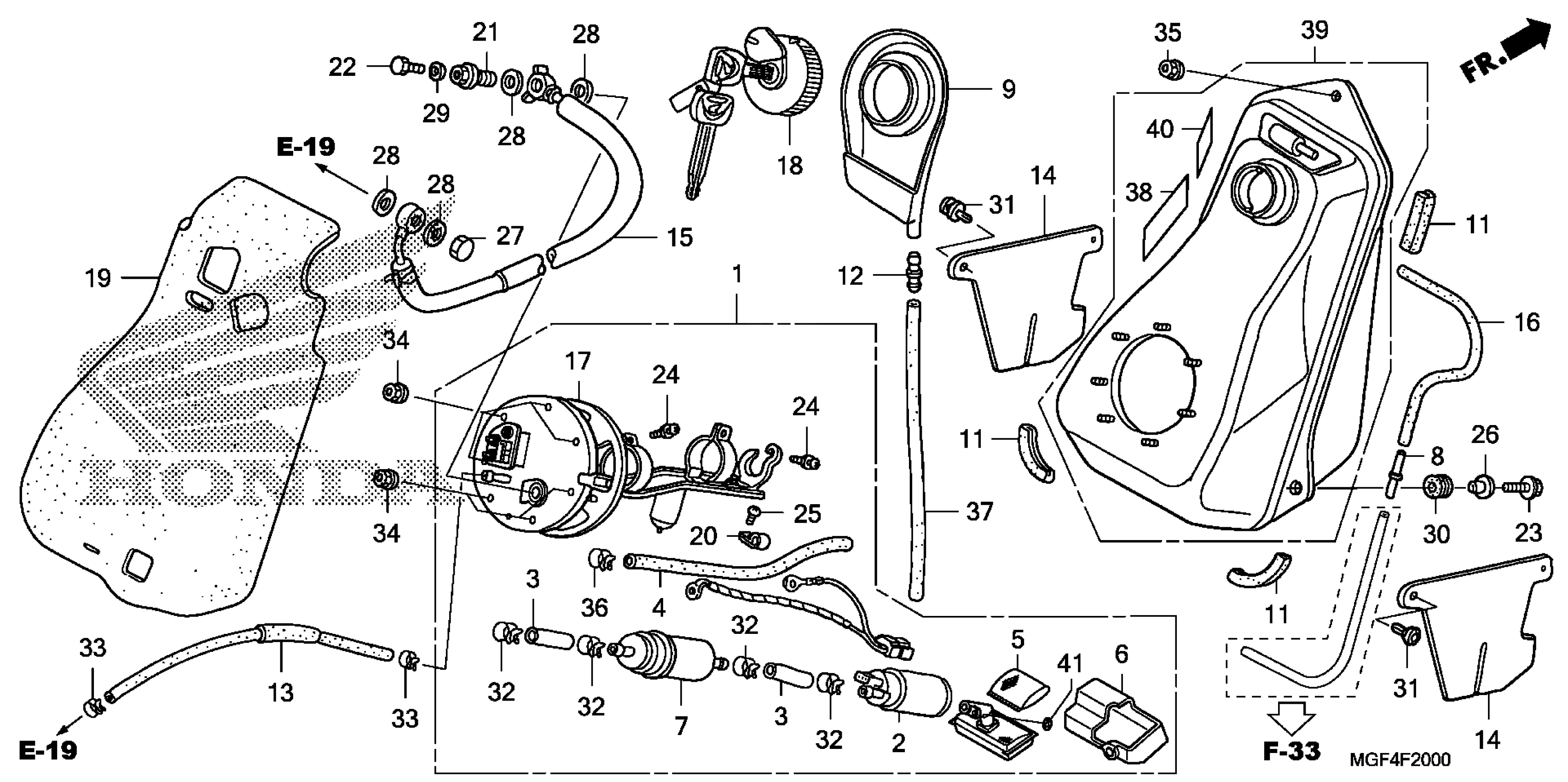

Honda FSC600AAC (12) SILVER WING ABS, JPN, VIN# JH2PF014-CK900001 TO JH2PF014-CK999999 FUEL TANK Diagram

PUMP ASSY., FUEL

16700-MCT-D61

$631.75

PUMP ASSY., FUEL (MSDS)

16710-MCT-D61

$177.95

HOSE A, PUMP

16711-MCT-000

$9.89

TUBE, FUEL PUMP RETURN

16713-MCT-000

$13.57

FILTER, FUEL RETURN

16714-MCT-641

$6.67

RUBBER, FUEL PUMP UNIT

16716-MCT-D60

$9.32

FILTER, FUEL

16900-MCH-003

$76.46

JOINT (3.5) (TWO-WAY)

17414-PC6-660

$6.45

TRAY, FUEL TANK

17507-MCT-010

$20.49

TRIM, FUEL TANK

17516-HC0-000

$4.49

JOINT, FUEL TUBE

17525-KBN-900

$3.87

HOSE, FUEL RETURN

17525-MCT-003

$20.51

RUBBER, HEAT GUARD

17526-MCT-000

$25.49

HOSE, FUEL FEED

17528-MCT-L61

$148.16

TUBE, SEPARATOR BREATHER

17530-MCT-L60

$8.10

GASKET, BASE

17574-MCF-000

$15.92

CAP COMP.,FUEL FILL This part replaces 17620-MCT-D01.

17620-MCT-D02

$62.28

RUBBER, HEAT GUARD

19020-MCT-680

$65.54

CLAMP, IGNITION WIRE

30564-ZE8-003

$2.84

BOLT, BANJO (12MM)

90008-PP4-E02

$16.44

BOLT, SEALING (6MM)

90009-PP4-E01

$6.54

BOLT, FLANGE (6X18)

90010-HB9-000

$2.33

SCREW-WASHER (4X10)

90110-MCH-000

$1.49

SCREW, SPECIAL (5X10)

90111-MAZ-000

$2.02

COLLAR, FUEL TANK

90175-MCT-640

$3.80

NUT A, SEALING (12MM)

90201-PD1-000

$4.87

WASHER, SEALING (12MM)

90428-PD6-003

$5.20

WASHER, SEALING (6MM)

90430-PD6-003

$4.01

GROMMET A, AIR CLEANER HOUSING

90505-MC4-000

$3.06

CLIP, TRIM (Honda Code 4529715)

90683-GAZ-003

$3.80

CLAMP, TUBE (D12) (FRAME NO.)

91405-PD1-004

$9.24

CLAMP, FUEL HOSE (D10.5)

91406-SL4-931

$4.88

NUT, FLANGE (6MM)

94050-06000

$1.49

NUT, FLANGE (8MM) NUT, FLANGE (10MM)

94050-08000

$1.49

CLAMP, TUBE (D8.5)

95002-40850-04

$2.41

BULK HOSE, VINYL (9X11X3000) (9X11X400)

95003-25003-60M

Unavailable

TAPE, TANK GUARD

17506-GCS-300

$3.31

TANK, FUEL

17510-MFT-640

$435.21

PROTECTOR

17518-MY9-690

$3.02

CLIP, FUEL PUMP

16920-SE0-931

$3.75
