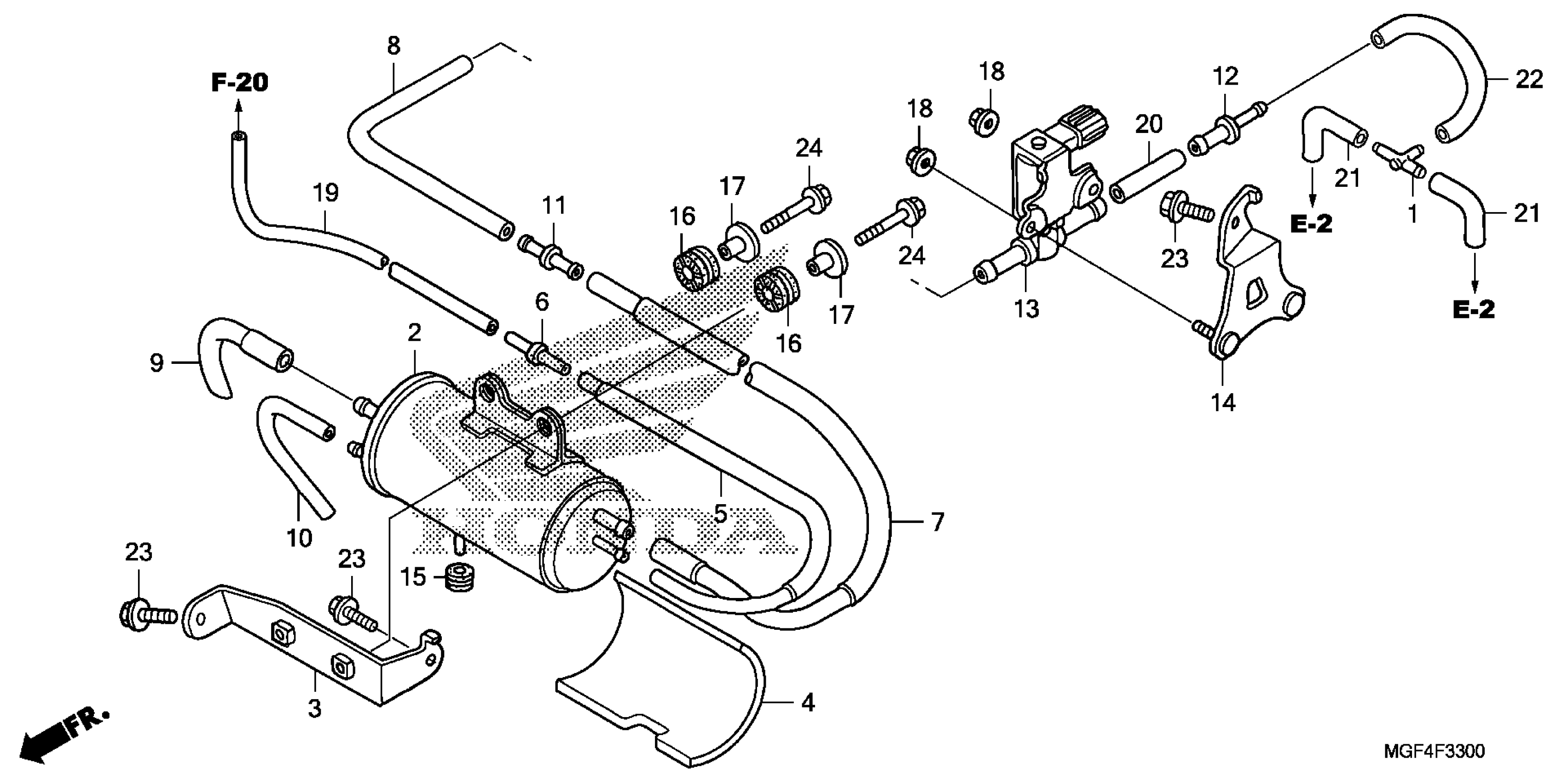

Honda FSC600AAC (11) SILVER WING ABS, JPN, VIN# JH2PF014-BK800001 TO JH2PF014-BK899999 EVAP CANISTER Diagram

JOINT, VACUUM TUBE (A)

17201-MG9-000

$14.63

CANISTER

17410-MCT-681

$172.37

STAY, CANISTER

17411-MCT-680

$13.94

PROTECTOR, HEAT

17413-MCT-680

$3.50

TUBE, CANISTER IN.

17414-MCT-L60

$8.26

JOINT (3.5) (TWO-WAY)

17414-PC6-660

$9.28

TUBE, CANISTER OUTLET

17415-MCT-680

$13.88

TUBE, P.C.V. IN.

17416-MCT-680

$5.19

TUBE, AIR

17417-MCT-681

$4.00

TUBE, DRAIN

17418-MCT-682

$3.13

JOINT, TUBE

19102-KT8-000

$6.32

JOINT, TUBE

19126-KM1-010

$3.50

VALVE, PURGE CONTROL SOLENOID

36162-MCT-681

$117.75

STAY, P.C.V.

50173-MCT-680

$14.41

GROMMET, ENGINE COVER

80103-GJ5-000

$2.00

RUBBER, FUEL TANK MOUNTING

84703-MN5-000

$4.88

COLLAR (6.2X13)

90501-MA3-720

$4.58

NUT, FLANGE (5MM)

94050-05000

$1.21

TUBE (3.5X490)

17419-MCT-L60

$14.46

BULK HOSE, FUEL (7.5X8000) (7.3X350) (BULK HOSE: 95001-75008-40M)

95001-75008-60M

$100.95

BULK HOSE, VACUUM (3.5X1000) (3.5X130) (BULK HOSE: 95005-35008-10M)

95005-35001-20M

$11.17

BULK HOSE, VACUUM (3.5X1000) (3.5X130) (BULK HOSE: 95005-35008-10M)

95005-35001-20M

$11.17

BOLT, FLANGE (6X12) BOLT, SPECIAL (6X12)

95701-06012-00

$1.84

BOLT, FLANGE (6X25)

95701-06025-00

$1.66
