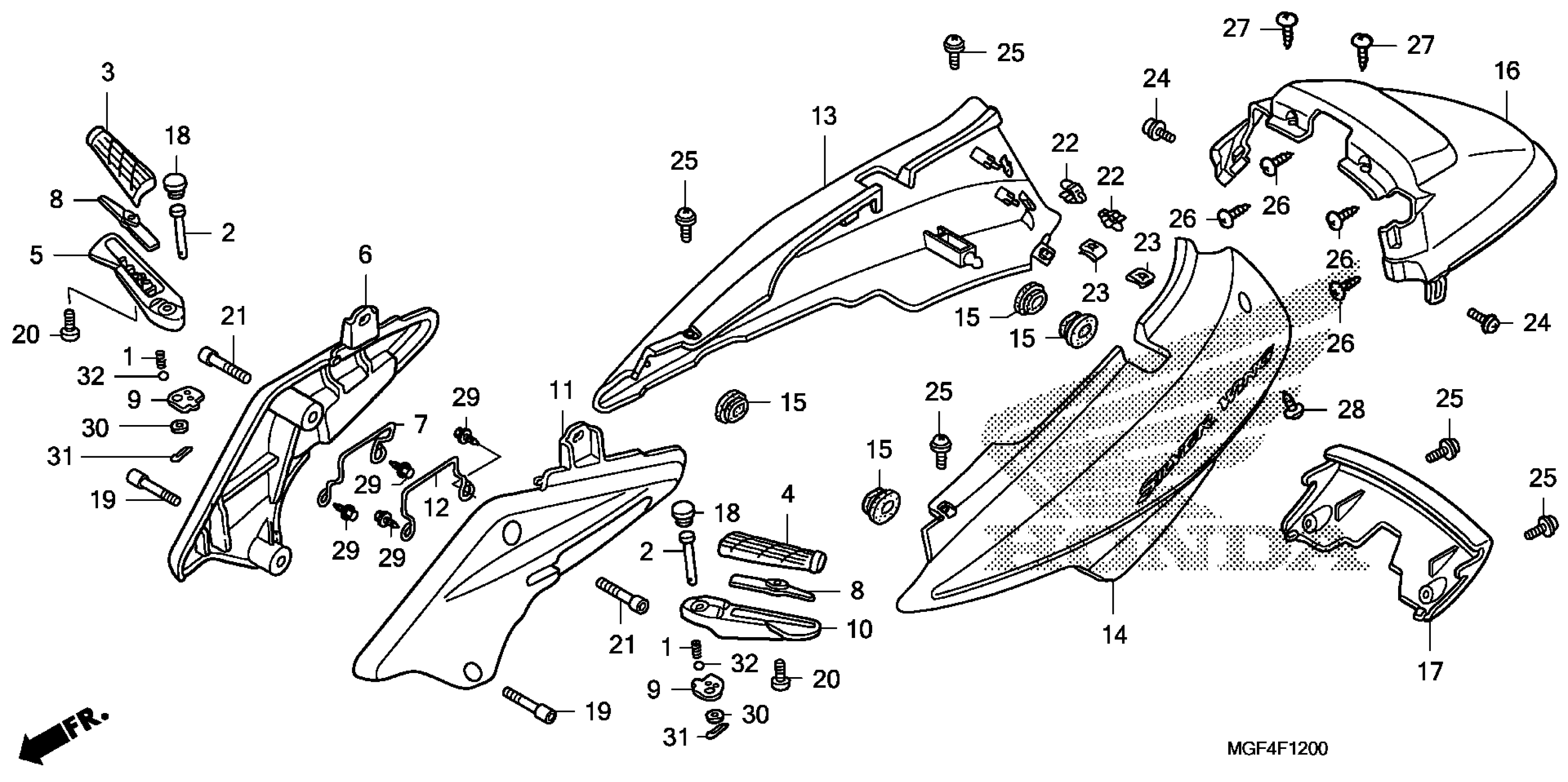

Honda FSC600AAC (11) SILVER WING ABS, JPN, VIN# JH2PF014-BK800001 TO JH2PF014-BK899999 BODY COVER Diagram

#

Description
Price

1

SPRING, KICK STARTER STOPPER

28333-300-000

$2.80

2

PIN, STEP BAR JOINT

50603-MCT-000

$3.00

3

RUBBER, R. PILLION STEP (COO)

50617-MGF-305

$16.87

4

RUBBER, L. PILLION STEP (COO)

50618-MGF-305

$12.62

5

ARM, R. PILLION STEP *NH471M* (COO) (MAT EXTREME SILVER METALLIC)

50652-MGF-305ZA

$40.76

6

HOLDER, R. PILLION STEP *NH471M* (MAT EXTREME SILVER METALLIC)

50663-MCT-770ZC

$141.99

7

GUIDE, R. FLOOR

50664-MCT-000

$7.51

8

PLATE, FOOT

50723-MCT-000

$4.91

9

PLATE, PILLION STEP CLICK

50724-MCT-000

$3.18

10

ARM, L. PILLION STEP *NH471M* (COO) (MAT EXTREME SILVER METALLIC)

50752-MGF-305ZA

$38.99

11

HOLDER, L. PILLION STEP *NH471M* (MAT EXTREME SILVER METALLIC)

50763-MCT-000ZA

$149.07

12

GUIDE, L. FLOOR

50764-MCT-000

$7.51

13

COVER SET, R. BODY *NHB01* (WL) (GRAPHITE BLACK)

83400-MCT-692ZY

$274.26

14

COVER SET, L. BODY *NHB01* (WL) (GRAPHITE BLACK)

83500-MCT-691ZY

$274.26

15

GROMMET, AIR CLEANER HOUSING

83551-GE2-000

$5.38

16

COVER SET, RR. BODY *NHB01* (WL) (GRAPHITE BLACK)

83600-MCT-690ZM

$54.47

17

COVER, RR. (LOWER) *NHB01* (GRAPHITE BLACK)

83611-MCT-000YB

$12.26

18

RUBBER, NUMBER PLATE BRACKET CUSHION

84702-MF2-670

$3.97

19

BOLT, SOCKET (10X45)

90104-MCT-000

$2.69

20

BOLT, TORX (5X14)

90131-MY3-781

$2.66

21

BOLT, SOCKET (10X45)

90181-MCT-000

$2.24

22

CLIP, SNAP FITTING

90666-S84-A01

$0.59

23

NUT, CLIP (5MM)

90677-KAN-961

$3.89

24

SCREW-WASHER (5X12)

93891-05012-08

$1.13

25

SCREW-WASHER (5X16)

93891-05016-07

$1.13

26

SCREW, TAPPING (4X12)

93903-24310

Unavailable

27

SCREW, TAPPING (4X12)

93903-34380

$2.12

28

SCREW, TAPPING (4X16)

93903-34480

$0.90

29

SCREW, TAPPING (5X16)

93904-35380

$0.84

30

WASHER, PLAIN (8MM)

94102-08800

$0.87

31

PIN, COTTER (2.0X12)

94201-20120

$1.04

32

BALL, STEEL (#8) (1/4)

96211-08000

Unavailable
