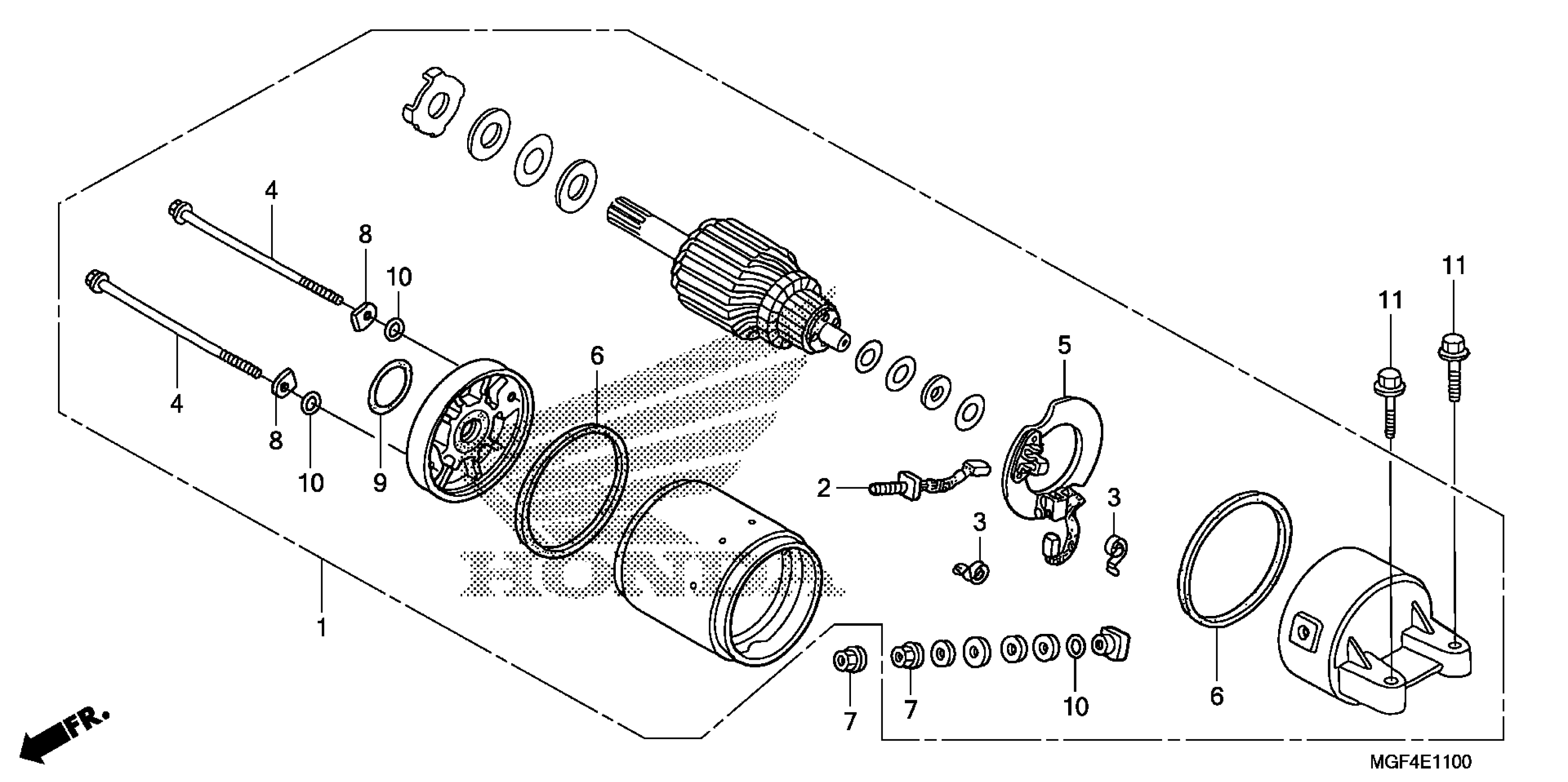

Honda FSC600AAC (10) SILVER WING ABS, JPN, VIN# JH2PF014-AK700001 TO JH2PF014-AK799999 STARTER MOTOR Diagram

MOTOR ASSY., STARTER (MITSUBA)

31200-MCT-003

$382.26

TERMINAL SET, BRUSH (USE FOR MITSUBA STARTER MOTOR SM-13)

31201-KS5-901

$22.19

SPRING, CARBON BRUSH

31204-KS5-901

$2.80

BOLT, SETTING

31205-MN4-008

$5.29

HOLDER SET, BRUSH

31206-MN4-008

$20.95

RING (Honda Code 2541985)

31207-KS5-901

$2.90

NUT-WASHER (6MM)

90071-MB0-000

$1.88

WASHER, STEEL PLATE

90122-MN4-008

$2.80

O-RING (24.4X3.1) This part replaces 91309-425-003.

91312-MG7-003

Unavailable

O-RING (24.4X3.1) (Honda Code 2618221)

91312-MG7-003

Unavailable

O-RING (Honda Code 1292184)

91320-MB0-000

$2.20

BOLT, FLANGE (6X30)

95701-06030-00

$1.71
