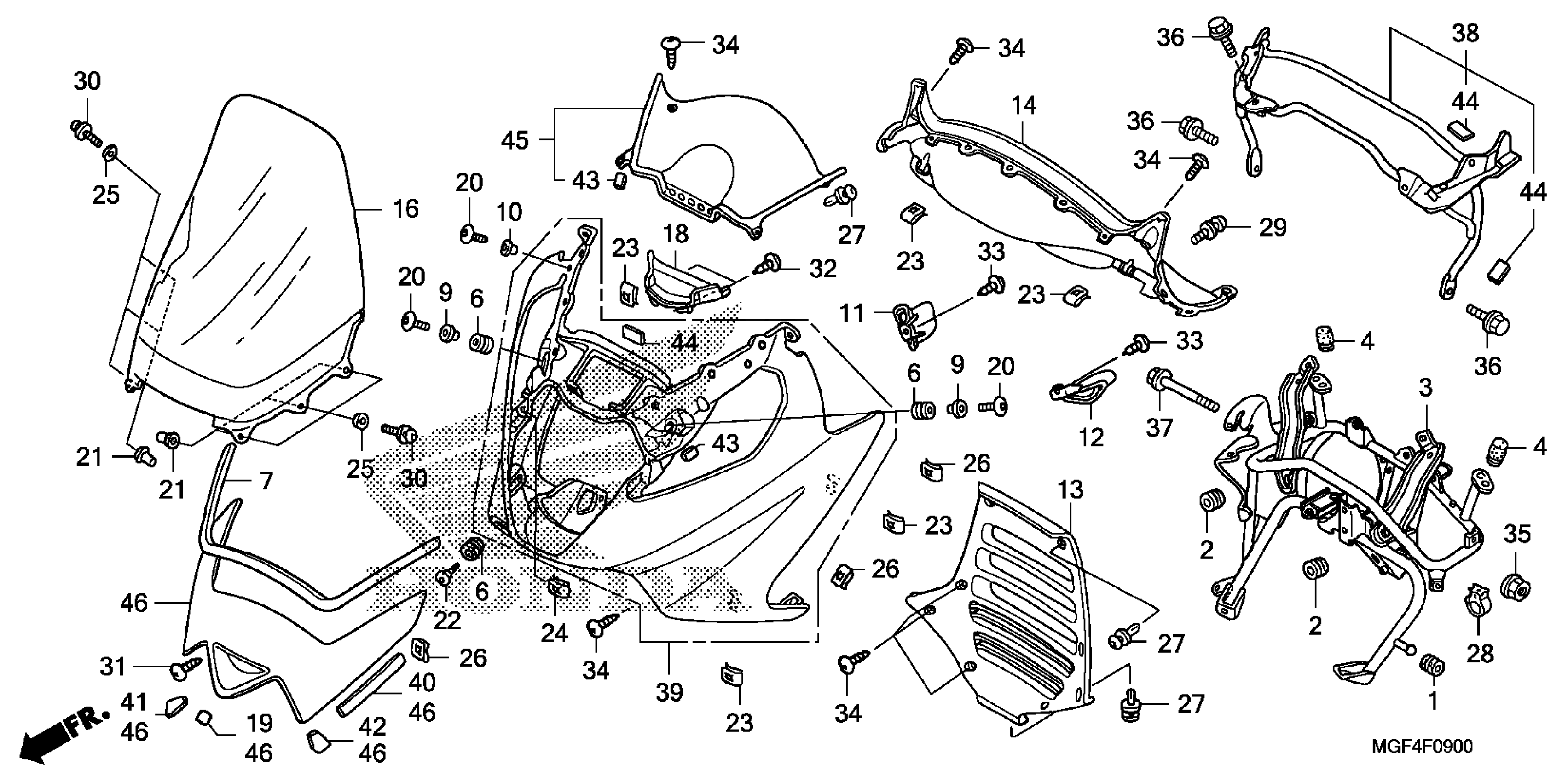

Honda FSC600AAC (10) SILVER WING ABS, JPN, VIN# JH2PF014-AK700001 TO JH2PF014-AK799999 FRONT COVER Diagram

#

Description
Price

1

RUBBER, FILLER NECK STOPPER

19038-ME9-000

Unavailable

2

RUBBER, RADIATOR MOUNTING

19051-KA4-000

$3.63

3

STAY, FR. COVER

50310-MCT-940

$244.41

4

RUBBER B, BATTERY HOLDER

50348-HA7-670

$3.06

6

RUBBER, HEADLIGHT MOUNTING

61315-958-680

$3.22

7

MOLDING, WINDSCREEN

64105-MCT-010

$8.82

9

COLLAR, FR. COVER

64303-MCT-000

$2.13

10

COLLAR, FR. COVER

64304-MCT-940

$3.53

11

DUCT, R. FR. COVER

64313-MCT-000

$7.84

12

DUCT, L. FR. COVER

64323-MCT-000

$2.42

13

COVER, FR. (LOWER)

64351-MCT-000

$53.01

14

PANEL, METER

64361-MCT-000

$45.56

16

WINDSCREEN (COO)

67101-MGF-305

$567.28

18

DUCT, GARNISH

67112-MCT-000

$7.10

19

RUBBER, GARNISH

67113-MCT-940

$1.34

20

BOLT, SPECIAL (6X22)

90085-KFB-000

$3.26

21

NUT, COWL SETTING (5MM)

90111-KW3-003

$4.31

22

BOLT, COWL SETTING

90112-MCT-000

$2.63

23

NUT, SPRING (4MM)

90302-SA4-003

$5.32

24

NUT, SPRING (6MM)

90320-747-000

$2.16

25

WASHER, THRUST (5MM)

90504-964-000

$1.75

26

NUT, CLIP (5MM)

90677-KAN-961

$3.89

27

CLIP, TRIM (Honda Code 4529715)

90683-GAZ-003

$3.63

28

CLIP, CABLE (20MM)

90690-GHB-661

$2.01

29

SCREW-WASHER (5X16)

93891-05016-07

$1.13

30

SCREW-WASHER (5X20)

93891-05020-08

$1.13

31

SCREW, TAPPING (4X20)

93903-24580

$0.82

32

SCREW, TAPPING (4X12)

93903-34310

$0.82

33

SCREW, TAPPING (4X12)

93903-34380

$2.12

34

SCREW, TAPPING (4X16)

93903-34480

$0.90

35

NUT, FLANGE (8MM) NUT, FLANGE (10MM)

94050-08000

$0.87

36

BOLT, FLANGE (6X12) BOLT, SPECIAL (6X12)

95701-06012-00

$2.03

37

BOLT, FLANGE (8X40)

95801-08040-00

$1.34

38

STAY, FR. COVER B

50410-MCT-770

$75.75

39

COVER, FR. *R114CU* (CANDY WINE BERRY RED-U)

64302-MCT-770ZT

Unavailable

40

MAT A, SHOCK ABSORBER

64307-MCT-770

$4.75

41

MAT B, R. SHOCK ABSORBER

64308-MCT-770

$1.68

42

MAT B, L. SHOCK ABSORBER

64309-MCT-770

$2.62

43

MAT C, SHOCK ABSORBER

64310-MCT-770

$2.62

44

MAT E, SHOCK ABSORBER

64313-MCT-770

$2.62

45

COVER, METER

64371-MCT-770

$22.94

46

GARNISH, SCREEN *R114CU* (CANDY WINE BERRY RED-U)

67109-MCT-770ZN

Unavailable
