Description

Price

1

COVER, TRANSMISSION

21300-MCT-000

$123.13

2

TUBE, BREATHER

21381-MCT-000

$5.16

3

SHAFT, DRIVE (16T)

23411-MCT-000

$121.19

4

COUNTERSHAFT (15T)

23421-MCT-000

$81.20

5

GEAR, COUNTER (38T)

23422-MCT-000

$58.17

6

SHAFT, FINAL

23431-MCT-000

$109.42

7

GEAR, FINAL (38T)

23432-MCT-000

$69.58

8

BOLT, SPECIAL (8X22)

90051-MCT-000

$4.80

9

BOLT, FLANGE SOCKET (8X35)

90130-MBB-000

$5.36

10

WASHER, THRUST (22MM)

90401-MCT-000

$3.43

11

WASHER, SIDE (22MM)

90406-MCT-000

$3.07

12

WASHER, SEALING (8MM)

90474-333-000

$3.08

13

BEARING, RADIAL BALL (6304)

91001-GF6-004

$18.37

13

BEARING, RADIAL BALL (6304) This part replaces 91001-035-008.

91001-GF6-004

$18.37

14

BEARING, RADIAL BALL (62/32UU)

91005-MCT-003

$23.28

15

BEARING, RADIAL BALL (6206)

91007-MCT-003

$12.88

16

OIL SEAL (40X55X7) (ARAI)

91205-MM5-003

$13.07

17

O-RING (26X2.4) (NOK)

91326-PL5-003

$3.91

18

PIN, DOWEL (10X16) (Honda Code 0058206)

94301-10160

$2.24

19

CIRCLIP (INNER) (62MM)

94520-62000

$2.03

20

CIRCLIP (INNER) (65MM)

94520-65000

$2.87

21

BOLT, FLANGE (8X40)

95701-08040-00

$1.14

22

BEARING, RADIAL BALL (6305)

96100-63050-00

$13.72

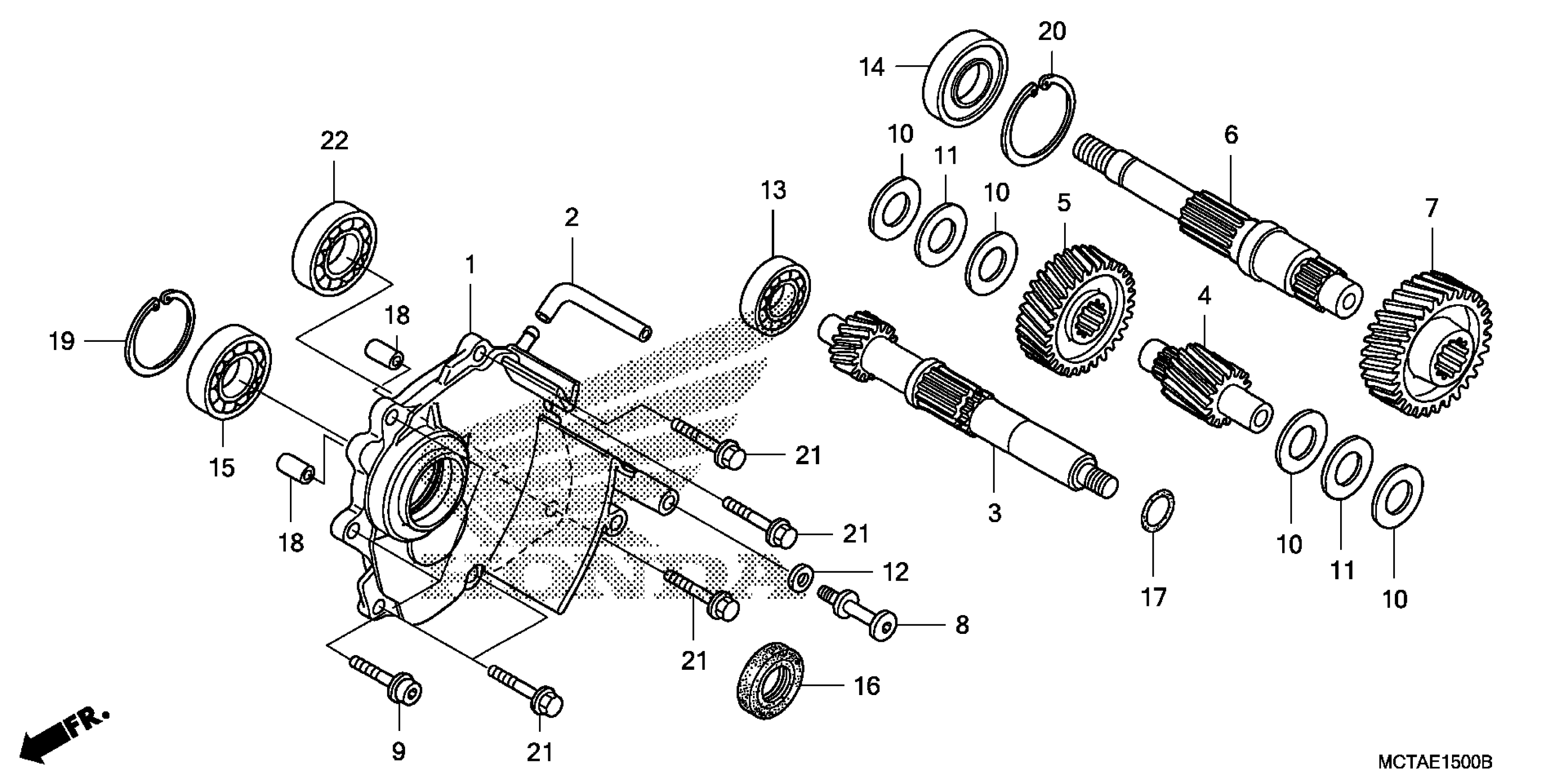

Honda FSC600AAC (09) SILVER WING, JPN, VIN# JH2PF014-9K600001 TRANSMISSION Diagram
