Description

Price

1

BUSH, SHOCK ABSORBER

11203-KAB-000

$8.87

2

CASE, SWINGARM

11300-MCT-910

$394.46

3

FLANGE, SWINGARM

11305-MCT-010

$57.81

4

COVER, L.

11341-MCT-010

$362.91

5

COVER ASSY., L. FR.

11350-MCT-020

$95.47

6

MAT, L. FR. COVER

11352-MCT-310

$2.38

7

ELEMENT

11356-MCT-000

$6.67

8

COVER, ELEMENT

11357-MCT-000

$10.24

9

GASKET, ELEMENT COVER

11358-MCT-000

$7.84

10

COVER, L. RR.

11360-MCT-010

$155.12

11

MAT A, L. RR. COVER

11362-MCT-310

$21.62

12

MAT B, L. RR. COVER

11363-MCT-310

$7.15

13

EMBLEM, L. RR. COVER

11365-MCT-300

$16.49

14

GASKET, L. COVER

11395-MCT-000

$14.65

17

CLAMP, SPEED SENSOR WIRE

32111-MCT-910

$5.97

18

PROTECTOR, SPEED SENSOR

32112-MCT-000

$18.81

19

SENSOR ASSY., SPEED

37700-GET-731

$71.62

20

O-RING

37701-GET-731

$3.06

21

CUSHION A, RR. FENDER

80105-061-000

$3.83

22

COLLAR A, RR. FENDER

80108-061-010

$3.92

23

BOLT, FLANGE (6X40) (NSHF)

90005-GHB-710

$3.31

24

BOLT, SOCKET (8X22)

90010-MCT-000

$1.49

25

BOLT, SPECIAL (6X22)

90085-MAJ-A20

$3.62

26

WASHER, SEALING (8MM)

90474-333-000

$4.15

27

CIRCLIP (INNER) (140)

90601-MCT-000

$6.53

28

CIRCLIP (OUTER) (110)

90602-MCT-000

$4.66

29

BEARING, RADIAL BALL (6822UU)

91001-MCT-013

$95.04

30

BEARING, RADIAL BALL (6008UU)

91008-MCT-003

$19.87

31

BEARING, NEEDLE (22X29X20)

91012-MCT-003

$10.84

32

OIL SEAL (40X65X6)

91205-MCT-003

$11.03

33

DUST SEAL (40X52X7)

91251-MCT-003

$9.28

34

SCREW, TAPPING (4X12)

93913-14220

$0.84

35

PIN, DOWEL (10X16) (Honda Code 0058206)

94301-10160

$2.80

36

BOLT, FLANGE (6X16) (Honda Code 2410892)

95701-06016-00

$1.50

37

BOLT, FLANGE (8X18)

95701-08018-00

$1.66

38

BOLT, FLANGE (8X65)

95701-08065-00

$1.59

39

BOLT, FLANGE (6X20)

96001-06020-00

$1.15

40

BOLT, FLANGE (6X32)

96001-06032-00

$1.29

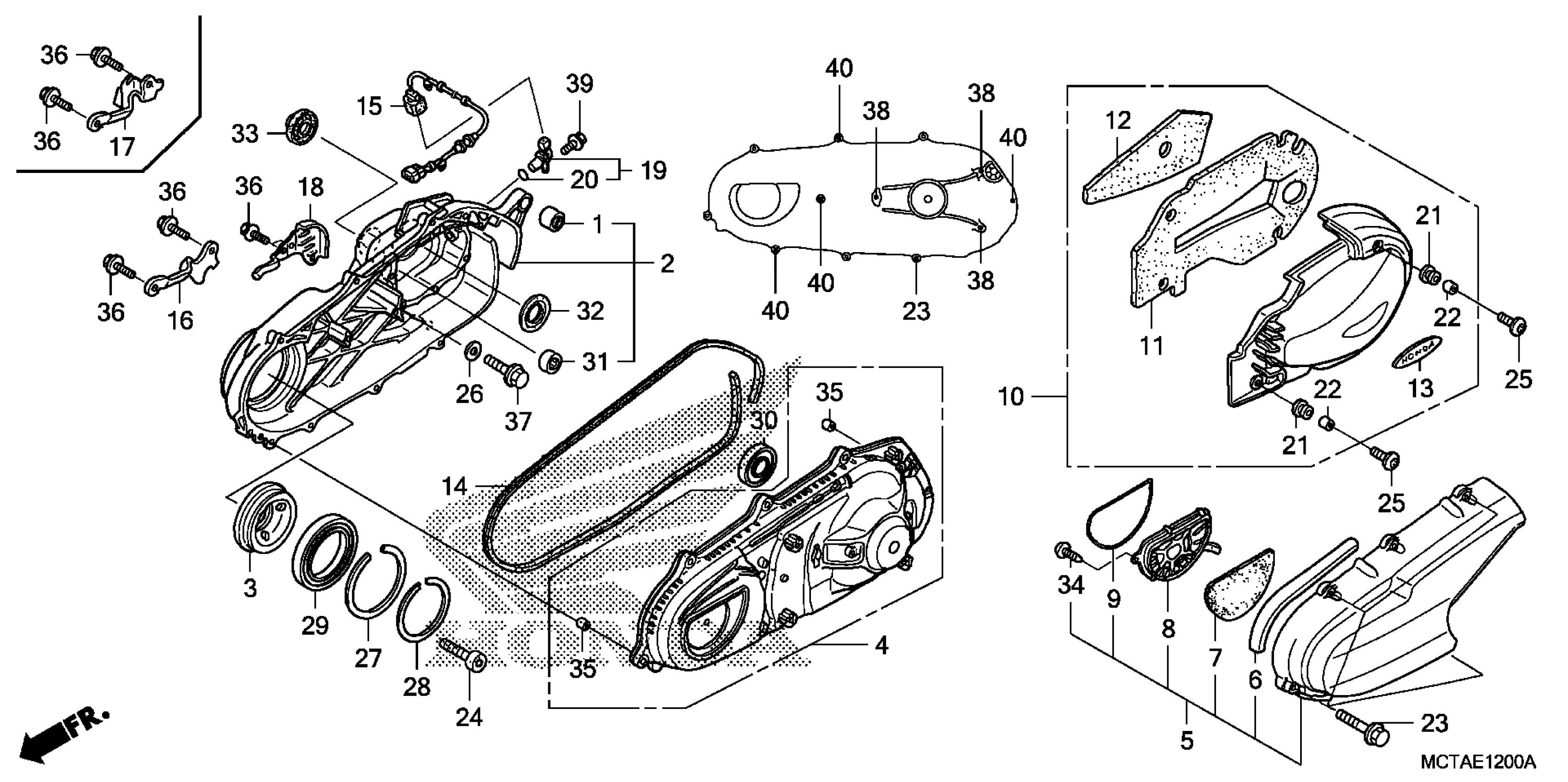

Honda FSC600AAC (09) SILVER WING, JPN, VIN# JH2PF014-9K600001 SWINGARM Diagram
