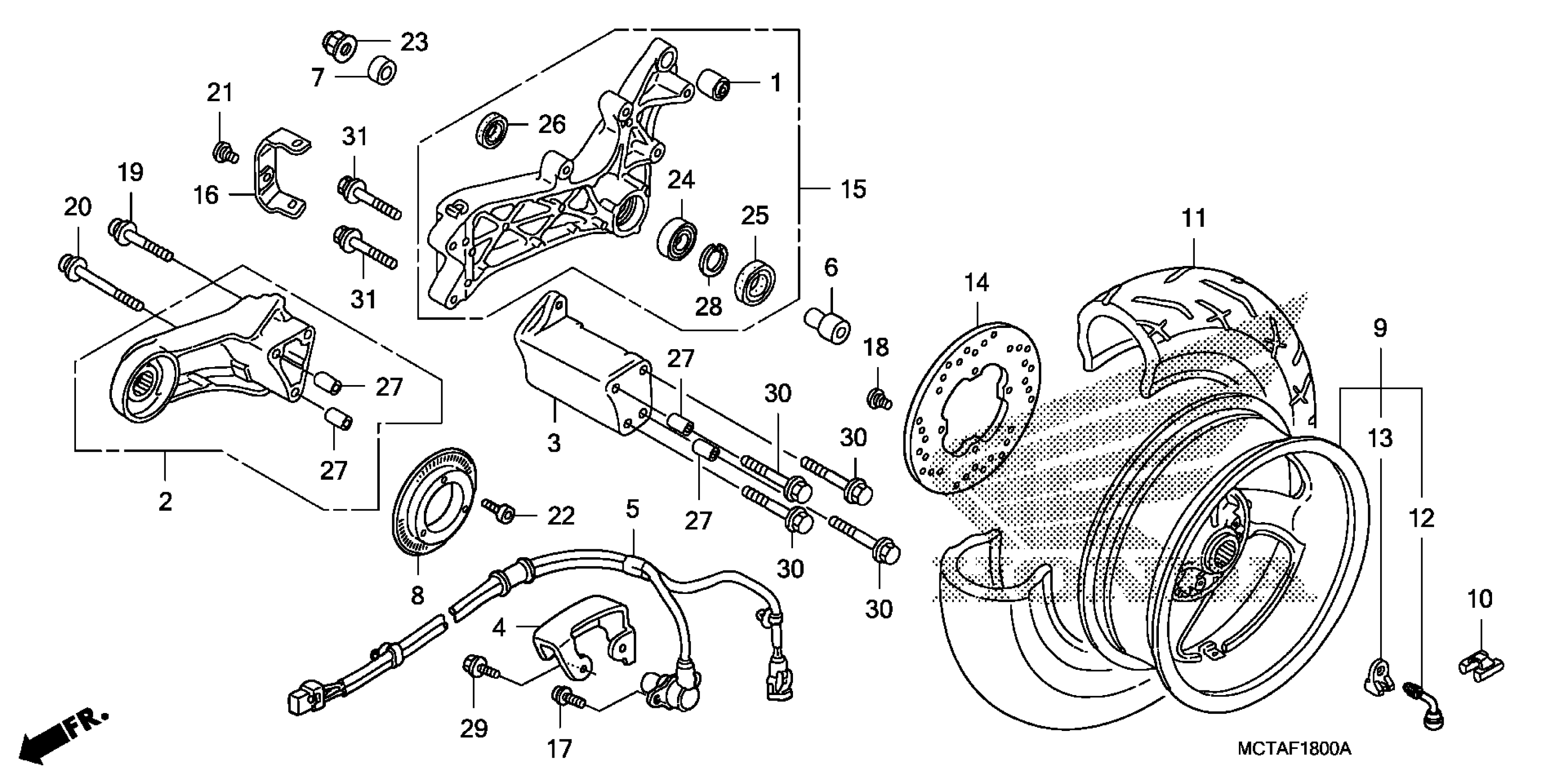

Honda FSC600AAC (09) SILVER WING, JPN, VIN# JH2PF014-9K600001 REAR WHEEL Diagram

#

Description
Price

1

BUSH, SHOCK ABSORBER

11203-KAB-000

$9.59

2

SWINGARM, R.

11320-MEF-000

$121.61

3

CENTER, SWINGARM

11322-MCT-000

$106.15

4

PROTECTOR, SPEED SENSOR

32112-MCT-910

$15.07

5

SENSOR, RR. WHEEL SPEED

38510-MCT-911

$207.62

6

COLLAR, RR. WHEEL SIDE

42311-MCT-910

$48.10

7

COLLAR, RR. AXLE

42312-MCT-000

$10.93

8

RING, RR. PULSER

42515-MCT-910

$43.79

9

WHEEL SUB-ASSY., RR. *NH295M* (COO) (SPARKLING SILVER METALLIC) This part replaces 42650-MCT-910ZA.

42650-MGF-306ZA

$690.33

9

WHEEL SUB-ASSY., RR. *NH295M* (COO) (SPARKLING SILVER METALLIC)

42650-MGF-306ZA

$690.33

10

WEIGHT, BALANCE (10) WEIGHT, BALANCE (20G)

42704-MCF-D60

$12.74

10

WEIGHT, BALANCE (20) WEIGHT, BALANCE (30G)

42705-MCF-D60

$15.38

10

WEIGHT, BALANCE (30) WEIGHT, BALANCE (10G)

42706-MCF-D60

$14.48

11

TIRE, RR. (150/70-13) (M/C 64S) (IRC)

42711-MCT-035

$84.83

11

TIRE (150/70-13) This part replaces 42711-MCT-033.

42711-MCT-053

$84.83

11

TIRE (150/70-13) This part replaces 42711-MCT-043.

42711-MCT-053

$84.83

12

VALVE, RIM (BS)

42753-KJ9-003

$17.49

12

VALVE, RIM (INOUE)

42753-KJ9-005

$16.50

13

HOLDER, RIM VALVE

42754-MN5-000

$5.12

14

DISK, RR. BRAKE

43251-MCT-911

$272.93

15

HOLDER ASSY., FINAL SHAFT

52000-MCT-910

$286.77

16

COVER, HOLDER

52182-MEF-000

$24.05

17

BOLT, SOCKET (6X14)

90091-KV3-700

$3.13

18

BOLT, DISK (8X24) (TSUKIBOSHI) This part replaces 90105-MBB-000.

90105-MV9-003

$6.21

18

BOLT, DISK (8X24) (TSUKIBOSHI)

90105-MV9-003

$6.21

19

BOLT, TORX (10X60)

90108-MCT-000

$3.57

20

BOLT, TORX (10X110)

90109-MCT-940

$4.93

21

SCREW, PAN (5X13)

90112-MBS-000

$2.43

22

BOLT, TORX (5X10)

90131-KPB-751

$2.66

23

NUT, FLANGE (18MM)

90305-MB4-003

$12.52

24

BEARING, RADIAL BALL (22X47X14)

91002-MCT-003

$18.98

25

OIL SEAL (32X48X8) (ARAI)

91202-HE0-003

$11.98

26

DUST SEAL (32X42X6)

91253-MCF-003

$6.41

27

PIN A, DOWEL (12X16)

94301-12160

$2.27

28

CIRCLIP (INNER) (47MM)

94520-47000

$2.34

29

BOLT, FLANGE (6X16) (Honda Code 2410892)

95701-06016-00

$1.55

30

BOLT, FLANGE (10X70)

95701-10070-00

$2.09

31

BOLT, FLANGE (10X55)

95801-10055-00

$1.49
