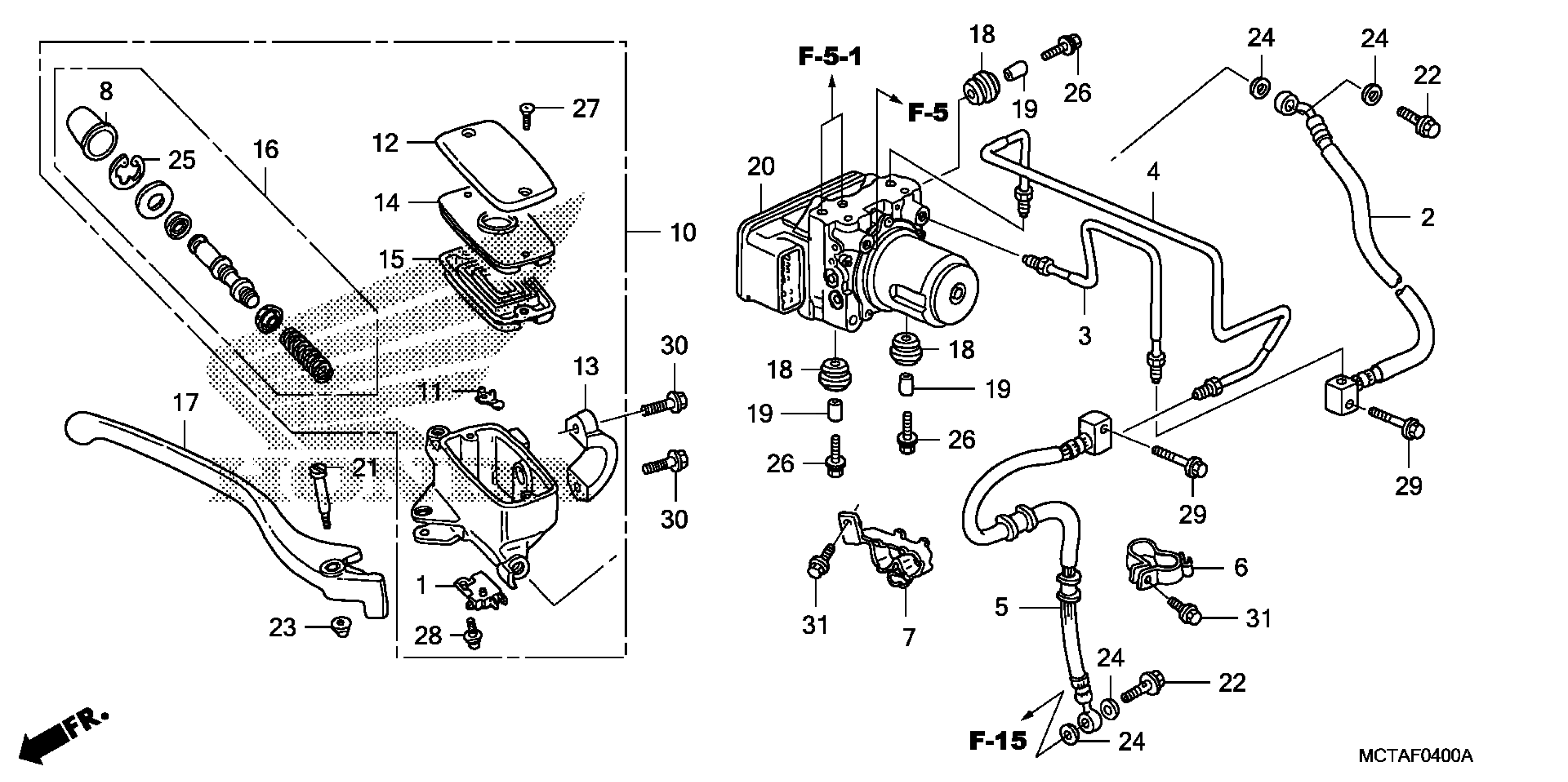

Honda FSC600AAC (09) SILVER WING, JPN, VIN# JH2PF014-9K600001 FRONT BRAKE MASTER CYLINDER (FSC600A) Diagram

#

Description
Price

1

SWITCH ASSY., FR. STOP

35340-MM5-600

$19.29

2

HOSE A, FR. BRAKE

45125-MCT-911

$68.35

3

PIPE B, FR. BRAKE

45126-MCT-910

$11.17

4

PIPE C, FR. BRAKE

45127-MCT-910

$16.97

5

HOSE D, FR. BRAKE

45128-MCT-911

$44.67

6

CLAMP, BRAKE HOSE

45130-MCT-D10

$5.28

7

CLAMP, BRAKE HOSE

45135-MCT-910

$6.00

8

BOOT

45504-410-003

$10.93

10

MASTER CYLINDER SUB-ASSY., FR. BRAKE (COO) (NISSIN) This part replaces 45510-MCT-006.

45510-MGF-305

$170.17

11

PROTECTOR

45512-MA6-006

$3.99

12

CAP, MASTER CYLINDER (NISSIN)

45513-MM5-016

$20.12

13

HOLDER, MASTER CYLINDER

45517-166-006

$12.17

14

PLATE, DIAPHRAGM (NISSIN)

45518-MM5-006

$9.57

15

DIAPHRAGM (NISSIN)

45520-MM5-006

$13.57

16

MASTER CYLINDER SET (SET INCLD.7 PARTS,ITEM SHOWN BELOW SPRING DOES NOT APPLY)

45530-MN9-305

$45.58

17

LEVER, R. HANDLEBAR (COO)

53175-MFR-305

$16.84

17

LEVER, R. HANDLE (COO) This part replaces 53175-ML5-006.

53175-MFR-305

$16.84

18

RUBBER, MOUNT

57101-SDA-003

$2.80

19

COLLAR

57103-SDA-003

$2.88

20

MODULATOR ASSY.

57110-MCT-914

$1,482.96

21

BOLT, R. HANDLEBAR PIVOT

90114-MA5-671

$8.46

22

BOLT, OIL (10X22) (SAGA)

90145-MS9-612

$6.82

23

NUT, CAP (6MM)

90201-415-000

$1.96

24

WASHER, OIL BOLT

90545-300-000

$3.72

25

CIRCLIP

90651-MA5-671

$2.38

26

BOLT-WASHER (6X25)

93404-06025-00

$1.00

27

SCREW, FLAT (4X12)

93600-04012-0G

$0.83

27

SCREW, FLAT (4X12) This part replaces 93600-04012-1G.

93600-04012-0G

$0.83

28

SCREW-WASHER (4X12)

93893-04012-07

$1.22

28

SCREW-WASHER (4X12) This part replaces 93893-04012-17.

93893-04012-07

$1.22

29

BOLT, FLANGE (6X40) BOLT, FLANGE (6X45)

95701-06040-00

$1.71

30

BOLT, FLANGE (6X22)

96001-06022-07

$1.68

31

BOLT, FLANGE (6X12)

96300-06012-00

$0.86
