Description

Price

1

BATTERY (YTZ12S) (YUASA) (MSDS) This part replaces 31500-MCF-643.

31500-MCF-644

$174.05

1

BATTERY (YTZ12S) (YUASA) (MSDS) This part replaces 31500-MCF-643AH.

31500-MCF-644

$174.05

2

CABLE, STARTER MAGNETIC BATTERY This part replaces 32401-MCT-000.

32401-MCT-010

$32.52

2

CABLE, STARTER MAGNETIC BATTERY

32401-MCT-010

$32.52

3

COVER, STARTER MAGNETIC TERMINAL This part replaces 32406-KAZ-000.

32406-KAZ-010

$6.56

3

COVER, STARTER MAGNETIC TERMINAL

32406-KAZ-010

$6.56

4

CABLE, STARTER MOTOR

32410-MCT-000

$26.64

5

COVER, STARTER MOTOR TERMINAL

32411-230-000

$6.40

5

COVER, STARTER MOTOR TERMINAL This part replaces 32411-253-000.

32411-230-000

$6.40

6

CABLE, GROUND

32603-MCT-940

$18.20

7

CABLE, BATTERY GROUND

32610-MCT-940

$26.16

8

SWITCH ASSY., STARTER MAGNETIC

35850-MR5-007

$120.16

9

RUBBER, SHOCK ABSORBER

35856-KBH-000

$12.21

10

SEAL, BATTERY BOX

50324-MCT-000

$8.67

12

RUBBER, BATTERY BOX

50329-MCT-000

$1.52

14

BOLT, SOCKET (5X9)

90111-MR5-000

$2.61

15

NUT, SPRING (4MM)

90302-SA4-003

$5.44

16

NUT, CLIP (6MM)

90305-GEE-710

$1.62

17

BOLT-WASHER (6X20)

93404-06020-07

$1.55

18

BOLT-WASHER (8X25)

93404-08025-00

$2.00

19

FUSE, BLADE (30A)

98200-33000

$1.49

20

BOX ASSY., BATTERY

50330-MCT-010

$58.28

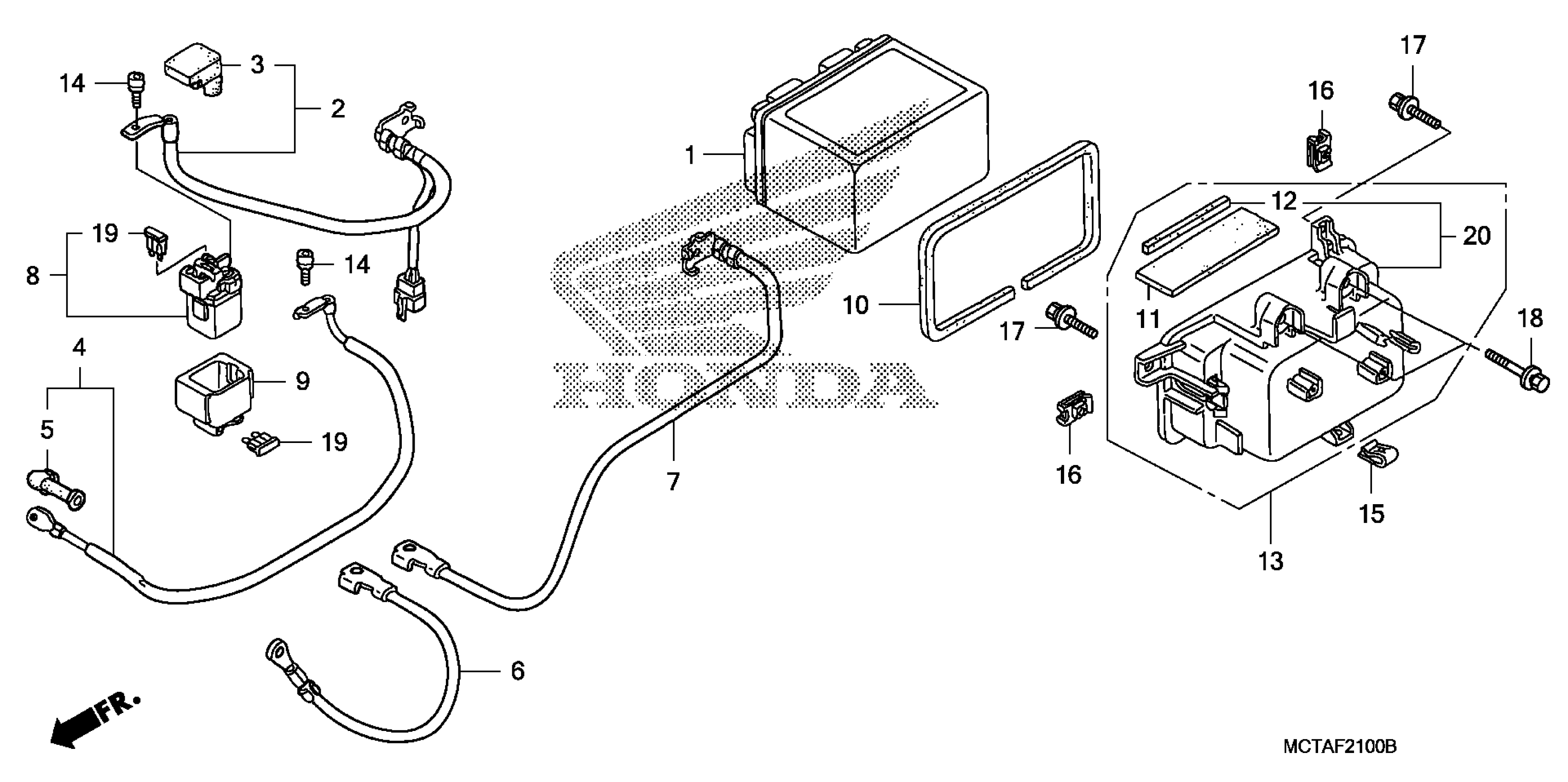

Honda FSC600AAC (09) SILVER WING, JPN, VIN# JH2PF014-9K600001 BATTERY Diagram
