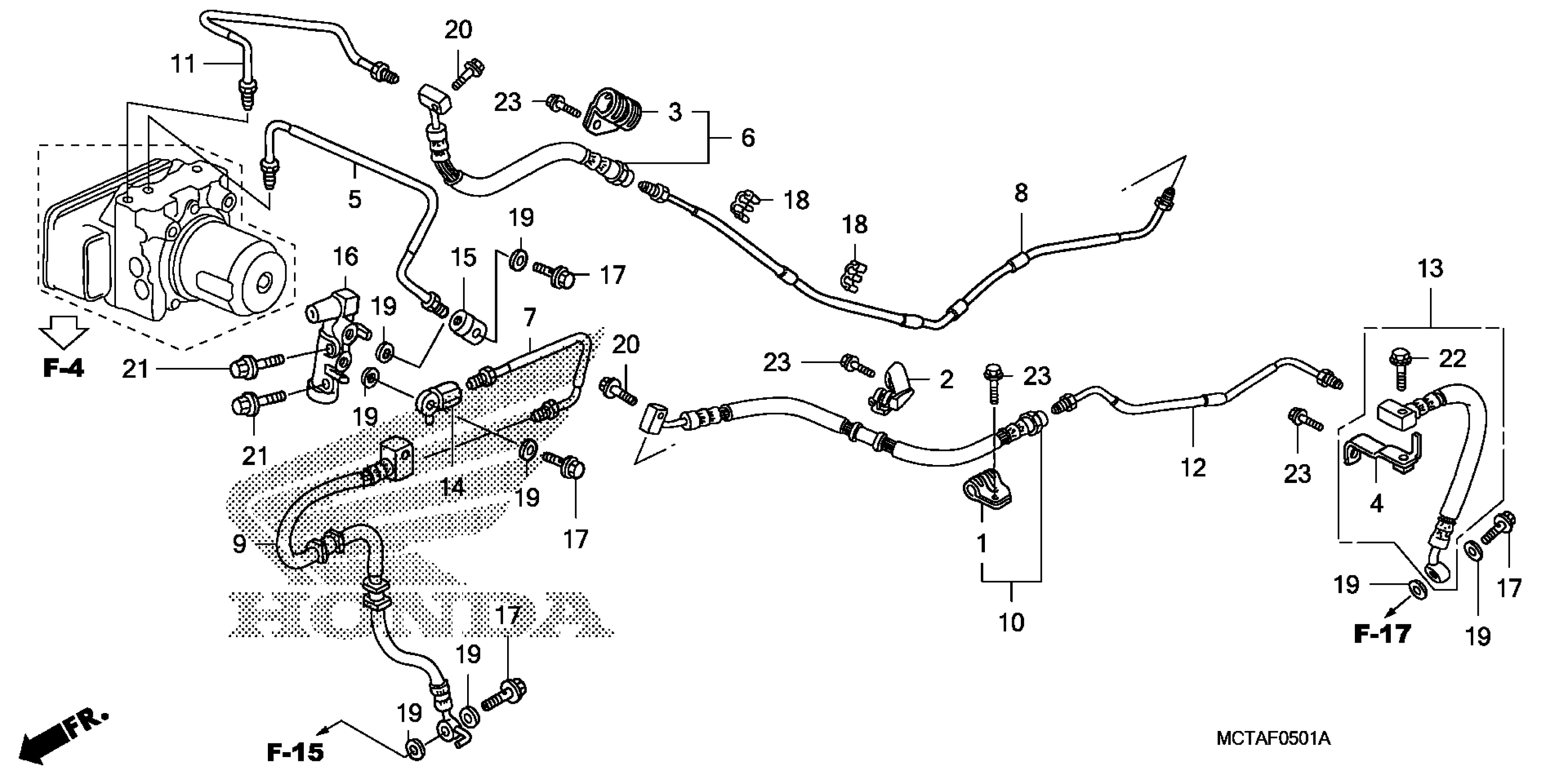

Honda FSC600AAC (07) SILVER WING, JPN, VIN# JH2PF014-7K400001 TO JH2PF014-7K499999 REAR BRAKE PIPE (FSC600A) Diagram

CLAMP B, RR. BRAKE HOSE

43157-MCT-000

$3.39

CLIP, RR. BRAKE HOSE

43158-MCT-000

$7.07

CLAMP, RR. BRAKE HOSE

43159-KFG-000

$3.80

STAY, RR. BRAKE HOSE

43159-MCT-000

$3.97

PIPE C, RR. BRAKE

43313-MCT-910

$13.16

HOSE D, RR. BRAKE

43314-MCT-003

$39.15

PIPE D, RR. BRAKE

43314-MCT-910

$9.74

PIPE E, RR. BRAKE

43315-MCT-000

$44.66

HOSE E, RR. BRAKE

43315-MCT-911

$56.77

HOSE F, RR. BRAKE

43316-MCT-003

$50.95

PIPE F, RR. BRAKE

43316-MCT-910

$14.72

PIPE G, RR. BRAKE

43317-MCT-000

$23.31

HOSE H, RR. BRAKE

43318-MCT-003

$46.07

JOINT, RR. MASTER CYLINDER PIPE

43321-MBG-003

$29.10

JOINT, MASTER CYLINDER PIPE (A)

43321-MY4-003

$39.13

VALVE ASSY., DELAY

46300-MCT-912

$186.03

BOLT, OIL (10X22) (SAGA)

90145-MS9-612

$7.54

CLAMP, PIPE

90505-MCT-000

$1.78

WASHER, OIL BOLT

90545-300-000

$3.99

BOLT, FLANGE (6X22)

95701-06022-00

$1.80

BOLT, FLANGE (6X28)

95701-06028-08

$2.08

BOLT, FLANGE (6X22)

95701-06022-07

$1.49

BOLT, FLANGE (6X22) This part replaces 95801-06022-07.

95701-06022-07

$1.49

BOLT, FLANGE (6X12)

96300-06012-07

$1.49
