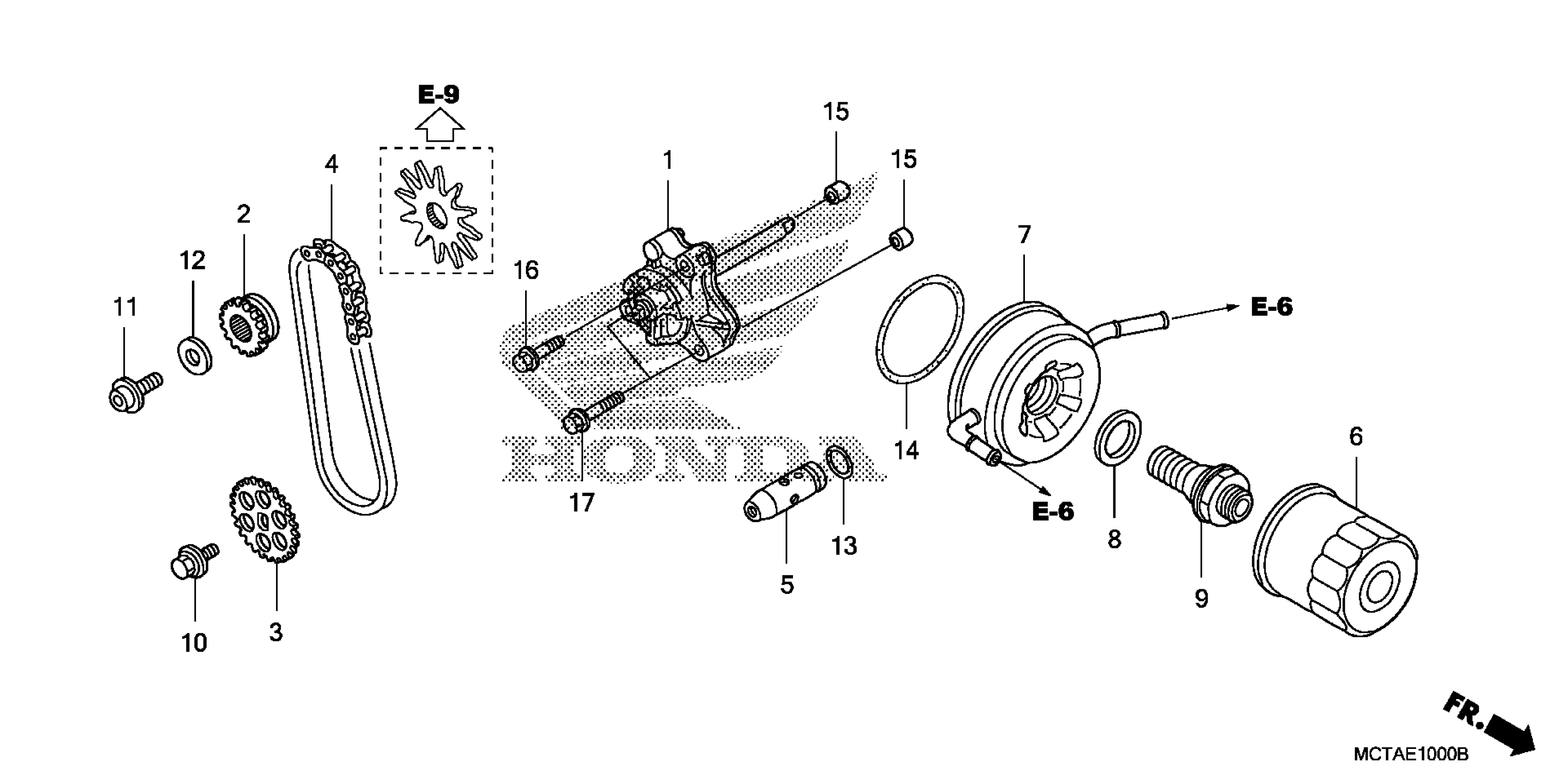

Honda FSC600AAC (07) SILVER WING, JPN, VIN# JH2PF014-7K400001 TO JH2PF014-7K499999 OIL PUMP Diagram

PUMP ASSY., OIL

15100-MCT-010

$60.48

SPROCKET, OIL PUMP DRIVE (16T)

15131-MCT-000

$46.82

SPROCKET, OIL PUMP DRIVEN (26T)

15134-MV9-670

$27.03

CHAIN, OIL PUMP (40L) (DAIDO)

15140-MCT-003

$16.16

VALVE ASSY., RELIEF

15220-MCT-010

$34.84

FILTER, OIL (WAKO FILTER) This part replaces 15410-MCJ-003.

15410-MFJ-D02

$15.84

FILTER, OIL (WAKO FILTER) This part replaces 15410-MFJ-D01.

15410-MFJ-D02

$15.84

FILTER, OIL (WAKO FILTER)

15410-MFJ-D02

$15.84

COOLER, OIL

15700-MCT-013

$243.67

WASHER, SPRING (24MM)

23929-PX4-700

$13.02

BOLT, OIL COOLER

90019-MCT-000

$17.97

BOLT-WASHER (6X12) (Honda Code 2551760)

90021-MM5-000

$5.12

BOLT, SPECIAL (10MM)

90037-ME9-000

$7.25

WASHER (10X25X4)

90405-MCT-000

$3.64

O-RING (14.8X2.2) This part replaces 91313-MB0-003.

91313-MG7-004

$3.67

O-RING (14.8X2.2) (Honda Code 3353620)

91313-MG7-004

$3.67

O-RING, OIL COOLER

91354-MCT-003

$7.93

PIN, DOWEL (8X14) (Honda Code 0069310)

94301-08140

$2.25

BOLT, FLANGE (6X25)

95701-06025-00

$1.80

BOLT, FLANGE (6X35)

95701-06035-00

$1.80
