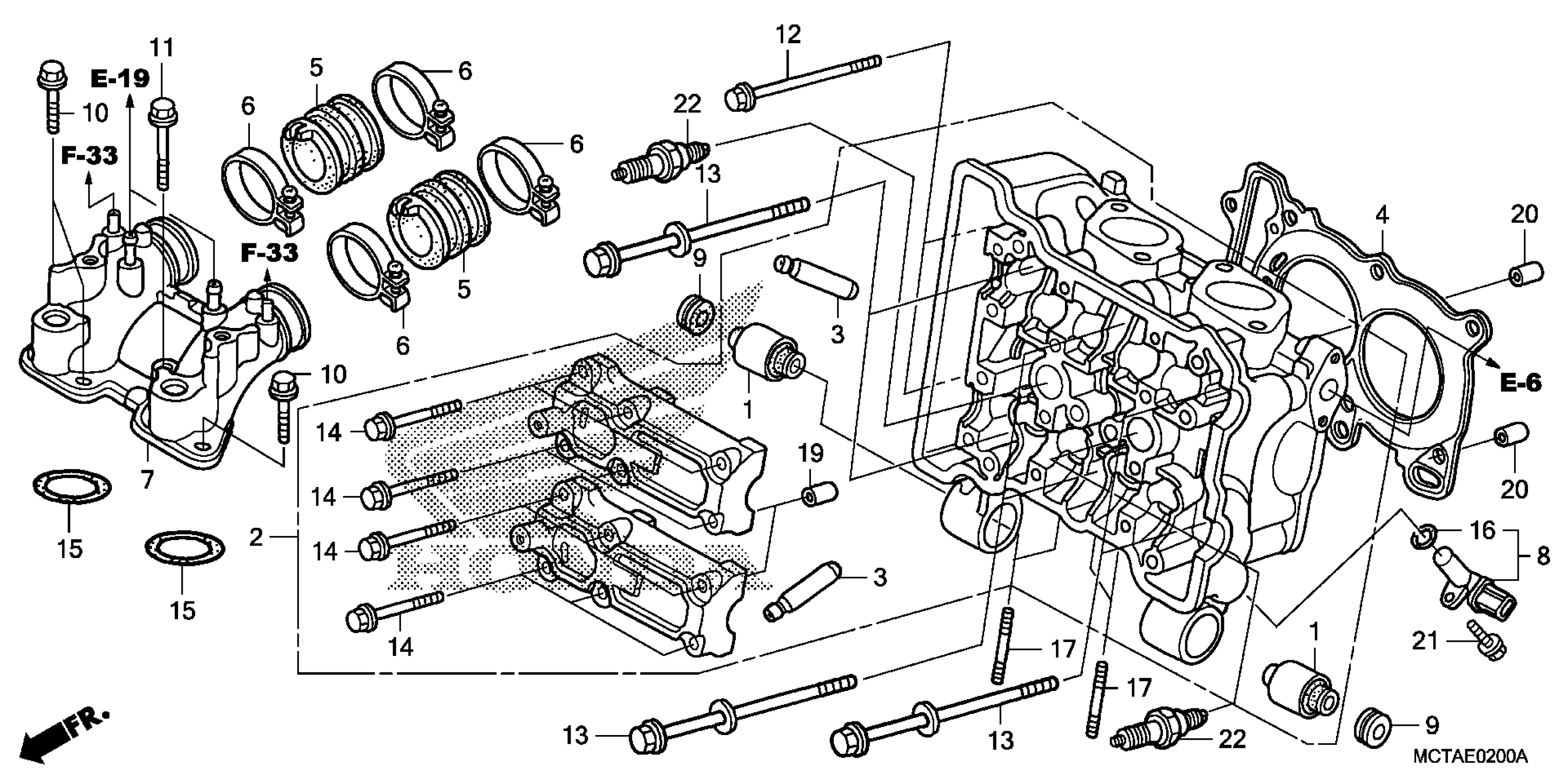

Honda FSC600AAC (07) SILVER WING, JPN, VIN# JH2PF014-7K400001 TO JH2PF014-7K499999 CYLINDER HEAD Diagram

#

Description
Price

1

RUBBER A, MOUNT

11110-MCT-941

$14.56

2

CYLINDER HEAD SET This part replaces 12011-MCT-940.

12011-MCT-941

$841.02

2

CYLINDER HEAD SET

12011-MCT-941

$841.02

3

GUIDE, VALVE (OVER SIZE)

12204-MT4-305

$23.95

4

GASKET, CYLINDER HEAD

12251-MCT-D61

$38.64

4

GASKET, CYLINDER HEAD | ARI.DataManager.Fixed.Core.XmlFormat.Translate.ContextNote Use up to Engine SN 6204909. This part replaces 12251-MCT-013.

12251-MCT-D61

$38.64

5

INSULATOR, THROTTLE BODY

16210-MCT-000

$18.08

6

BAND, INSULATOR

16218-MCT-000

$4.67

7

PIPE, INLET

17110-MCT-680

$96.13

8

PULSER ASSY., CAM (Honda Code 6959951)

36140-MCT-003

$168.15

9

RUBBER C, MOUNT

50203-MCT-000

$11.52

10

BOLT, FLANGE (6X20) (NSHF)

90004-GHB-650

$1.95

11

BOLT, FLANGE (6X40) (NSHF)

90004-GHB-710

$4.07

12

BOLT, FLANGE (6X110) (NSHF)

90004-GHB-840

$2.92

13

BOLT-WASHER (9X155)

90007-MCT-000

$5.41

14

BOLT, FLANGE (6X45.5)

90017-MA6-000

$3.35

15

O-RING (37X2)

91304-MCT-003

$2.66

16

O-RING (16X2.1) (NOK) (Honda Code 3301793)

91309-PX4-003

$2.93

17

BOLT 2, STUD (6X22)

92900-06022-0E

$1.49

19

PIN, DOWEL (8X14) (Honda Code 0069310)

94301-08140

$2.25

20

PIN A, DOWEL (12X20)

94301-12200

$2.29

21

BOLT, FLANGE (6X18) BOLT, HEX. (6X18)

95701-06018-00

$1.62

22

SPARK PLUG (CR8EH9) (NGK)

98059-58916

$8.09

22

SPARK PLUG (CR9EH-9) (NGK) This part replaces 98059-58926.

98059-59916

$8.09

22

SPARK PLUG (CR9EH-9) (NGK) This part replaces 98059-59910.

98059-59916

$8.09

22

SPARK PLUG (CR9EH-9) (NGK)

98059-59916

$8.09

22

SPARK PLUG (CR9EH-9) (NGK) This part replaces 98059-59926.

98059-59916

$8.09
