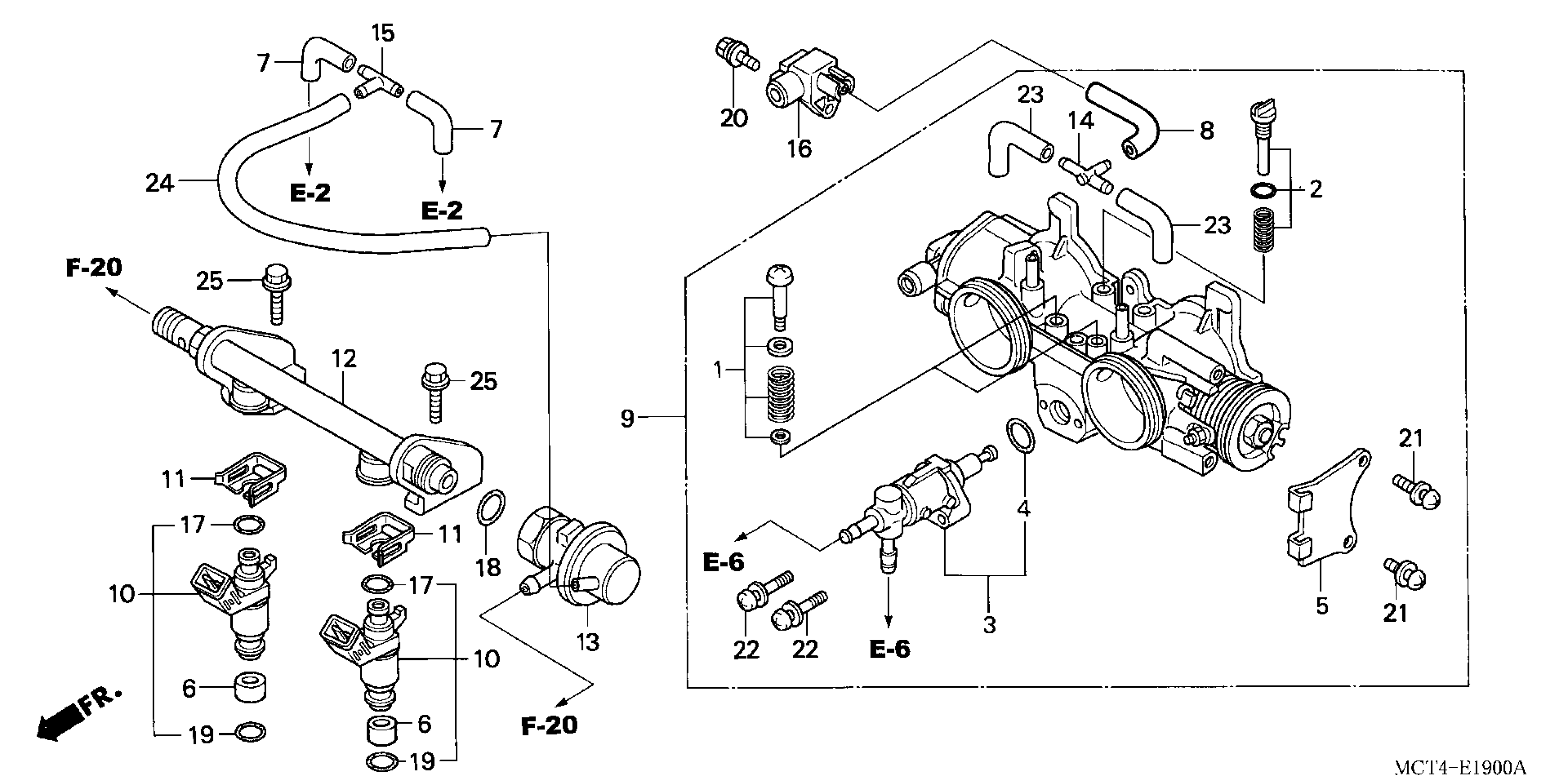

Honda FSC600AAC (05) SILVER WING, JPN, VIN# JH2PF014-5K200001 THROTTLE BODY Diagram

#

Description
Price

1

SCREW SET

16016-MCA-013

$17.31

2

SCREW SET, STOP

16029-MCT-003

$28.03

3

WAX ASSY.

16046-MCT-003

$181.87

4

O-RING

16075-MCH-003

$13.11

5

STAY, WIRE

16119-MCT-003

$15.89

6

TUBE

16193-MCT-000

$1.52

7

TUBE

16195-MCT-000

$2.52

8

TUBE

16198-MCT-003

$4.75

9

BODY ASSY., THROTTLE (GQ80B A)

16400-MCT-681

$1,088.75

10

INJECTOR ASSY., FUEL

16450-MCA-013

$184.72

11

CLIP, INJECTOR

16451-PLC-000

$6.20

12

PIPE, FUEL

16610-MCT-003

$118.84

13

REGULATOR ASSY., PRESSURE

16740-MCT-013

$75.85

14

JOINT, THREE WAY

17201-MCT-003

$6.93

15

JOINT, VACUUM TUBE (A)

17201-MG9-000

$15.94

16

SENSOR, MAP

37830-MCF-003

$206.58

17

O-RING (7.47X3.6)

91301-PLC-000

$3.11

18

O-RING (7.8X1.9)

91302-MCA-000

$2.30

19

O-RING (7.85X3.53)

91302-PLC-000

$7.94

20

BOLT-WASHER (4X16)

93401-04016-08

$1.49

21

SCREW-WASHER (5X12)

93892-05012-00

$1.49

21

SCREW-WASHER (5X12) This part replaces 93892-05012-10.

93892-05012-00

$1.49

22

SCREW-WASHER (5X22)

93892-05022-00

$1.49

23

BULK HOSE, VACUUM (3.5X1000) (3.5X130) (BULK HOSE: 95005-35008-10M)

95005-35001-20M

$9.67

24

BULK HOSE, VACUUM (3.5X1000) (3.5X130) (BULK HOSE: 95005-35008-10M)

95005-35001-20M

$9.67

25

BOLT, FLANGE (6X14)

96001-06014-00

$1.72
