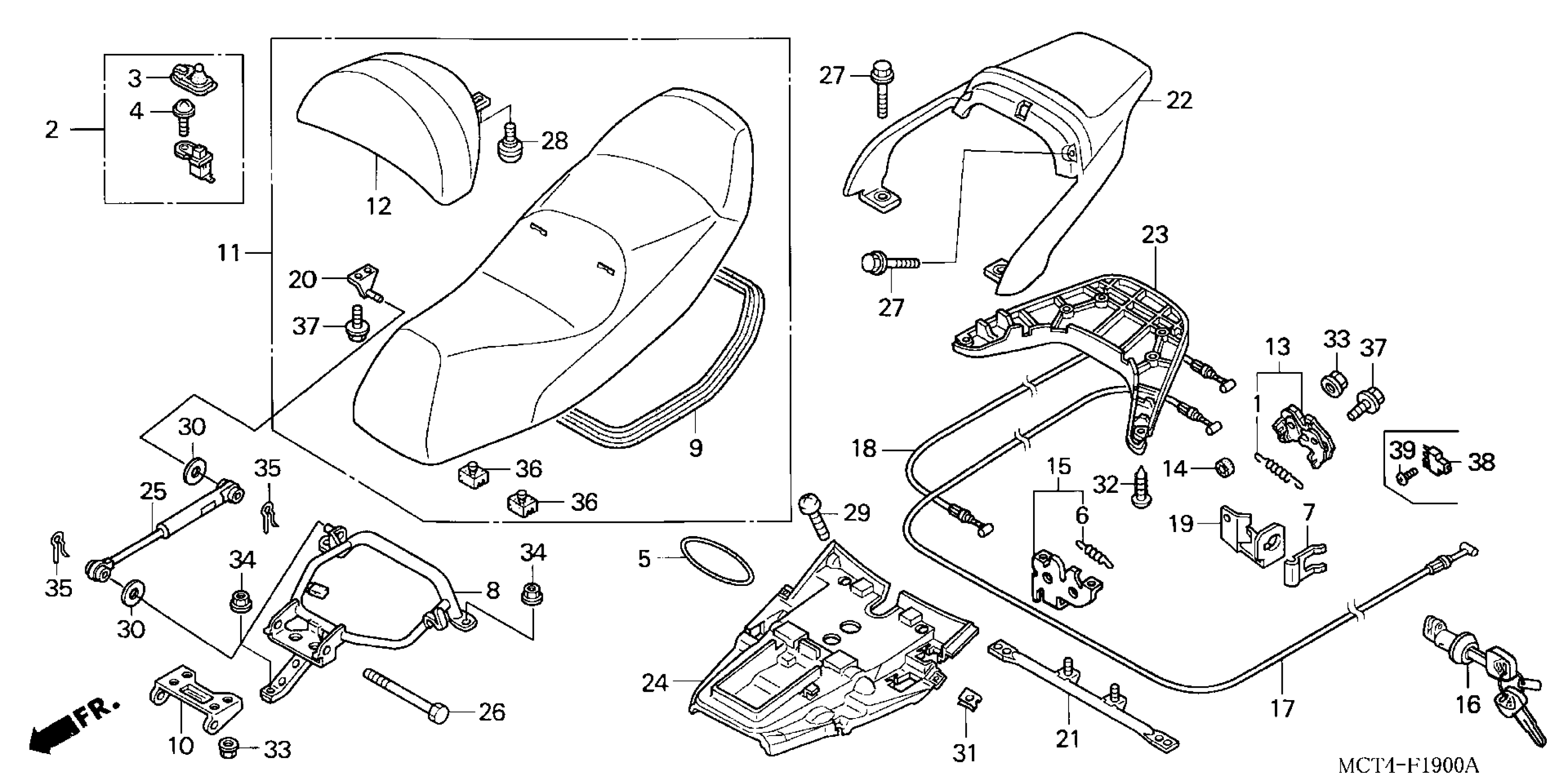

Honda FSC600AAC (05) SILVER WING, JPN, VIN# JH2PF014-5K200001 SEAT Diagram

#

Description
Price

1

SPRING, SEAT CATCH

77236-GBL-000

$2.05

5

BAND, U-LOCK

50290-MBL-610

$4.89

6

SPRING

50513-GBL-000

$3.33

7

SPRING, LOCK KEY SETTING

75581-GN8-920

$4.78

8

STAY, SEAT HINGE

77110-MCT-010

$148.51

9

RUBBER, SEAL

77114-MCT-000

$21.51

10

HINGE, SEAT

77115-MCT-000

$10.16

11

SEAT, DOUBLE

77200-MCT-640

$677.46

12

BACKREST ASSY.

77210-MCT-640

$72.69

13

CATCH, RR. SEAT

77220-MEF-000

Unavailable

14

BAND, RUBBER

77227-KPB-000

$1.49

15

CATCH, SEAT

77230-MCT-000

$85.07

16

KEY, SEAT LOCK

77239-MCT-007

$36.12

17

CABLE A, SEAT OPEN

77240-MCT-010

$15.90

18

CABLE B, SEAT OPEN

77241-MCT-010

$11.02

19

STAY, SEAT LOCK CABLE

77242-MCT-000

$5.05

20

STAY, DAMPER

77244-MCT-000

$5.33

21

STAY, SEAT CATCH

77250-MCT-010

$41.08

22

SPOILER, RR. *NH471M* (MAT EXTREME SILVER METALLIC)

77310-MCT-000ZA

$420.69

23

COVER, RR. SPOILER *NH169R* (STAGE GRAY)

77315-MCT-000ZA

$26.75

24

COVER, SEAT (LOWER) This part replaces 77401-MCT-020.

77401-MCT-030

$38.31

24

COVER, SEAT (LOWER)

77401-MCT-030

$38.31

25

DAMPER, OPENER

83590-MCT-003

$47.01

26

BOLT, SEAT HINGE

90105-MCT-000

$4.41

27

BOLT, FLANGE (8X35)

90107-MCT-000

$2.59

28

SCREW, PAN (6X16)

90113-KPB-000

$2.49

29

SCREW, TRUSS (M6X16)

90131-S0X-A00

$1.49

30

WASHER, FR. COVER SETTING

90501-124-000

$3.74

31

NUT, CLIP (5MM)

90677-KAN-961

$4.07

32

SCREW, TAPPING (5X12)

93904-35210

$1.49

33

NUT, FLANGE (6MM)

94050-06000

$1.49

34

NUT, FLANGE (8MM)

90302-SH3-003

$1.49

35

PIN, LOCK (6MM)

94251-06000

$1.49

36

RUBBER A, STAND STOPPER

95011-61000

$1.49

37

BOLT, FLANGE (6X12) BOLT, SPECIAL (6X12)

95701-06012-00

$1.62

38

SWITCH ASSY., CLUTCH

35330-MB0-003

$18.22

39

SCREW-WASHER (4X14)

93893-04014-08

$1.49
