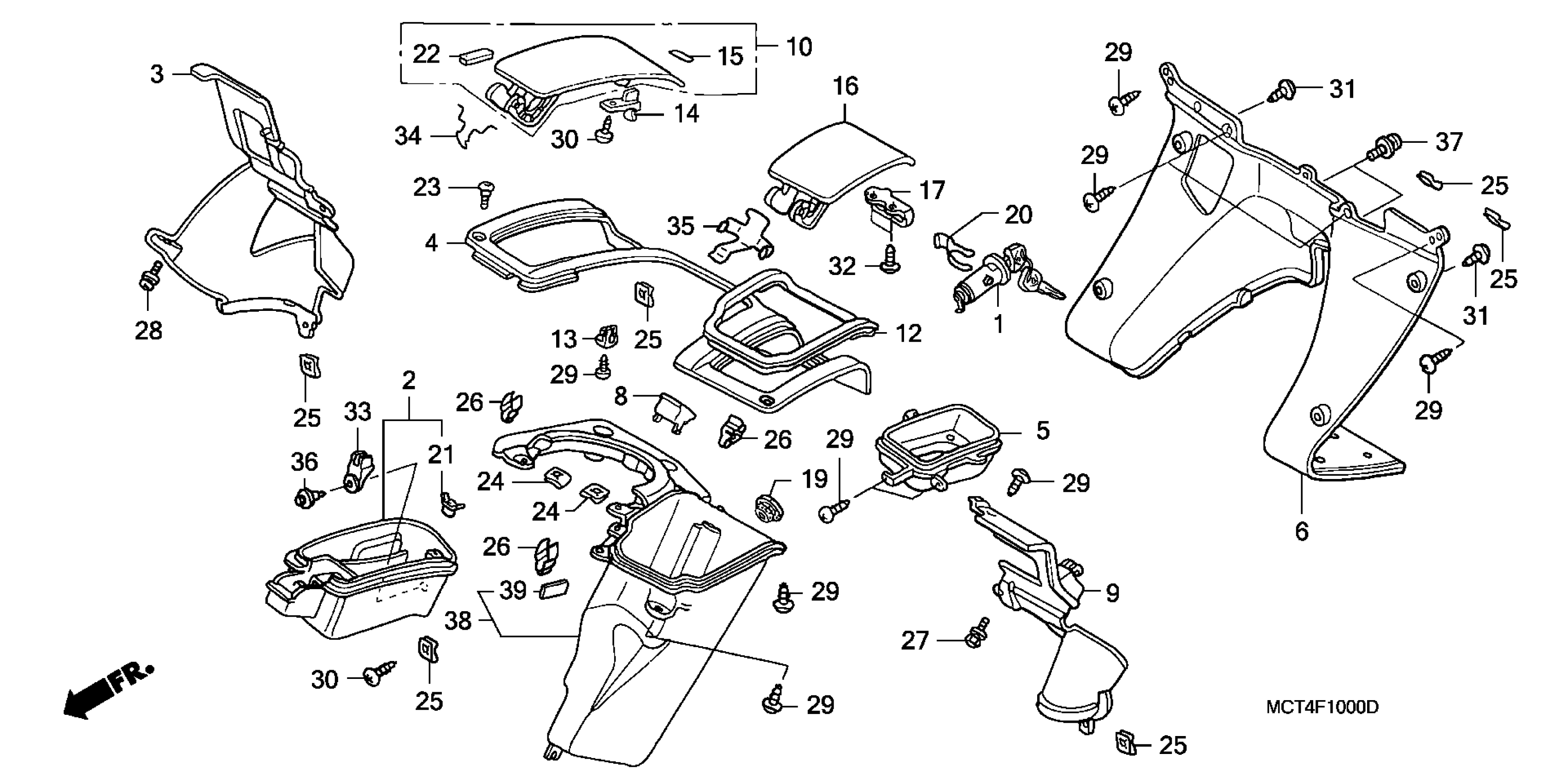

Honda FSC600AAC (05) SILVER WING, JPN, VIN# JH2PF014-5K200001 INNER BOX Diagram

#

Description
Price

1

LOCK ASSY., LID

64228-MCT-000

$29.36

2

POCKET ASSY., R. (INNER)

64250-MCT-020

Unavailable

3

COVER, R. FR. AIR DUCT

64306-MCT-000

$16.82

4

COVER (INNER) *NH237P* (PURE BLACK)

64311-MCT-680ZA

Unavailable

4

COVER (INNER) *YR183M* (TITANIUM METALLIC)

64311-MCT-680ZF

Unavailable

5

COVER, BRAKE LEVER

64314-MCT-000

$15.16

6

COVER, FLOOR (UPPER)

64331-MCT-000

$108.03

8

CAP, SWITCH

64367-MCT-000

$1.49

9

COVER, L. FR. AIR DUCT

64406-MCT-020

$20.38

10

LID SET, R. POCKET *NH237P* (PURE BLACK)

64460-MCT-692ZD

Unavailable

10

LID SET, R. POCKET *YR183M* (TITANIUM METALLIC)

64460-MCT-692ZJ

$14.44

12

SEAL, POCKET LID

64463-MCT-000

$6.11

13

HOLDER, DAMPER

64464-MCT-000

$3.85

14

STRIKER, POCKET LID

64466-MCT-640

$4.03

15

MARK, PUSH (TYPE1)

64467-MCT-690ZA

Unavailable

16

LID, L. POCKET *NH237P* (PURE BLACK)

64471-MCT-692ZE

Unavailable

16

LID, L. POCKET *YR183M* (TITANIUM METALLIC)

64471-MCT-692ZJ

$18.92

17

HOOK, LOCK

64472-MCT-000

$4.18

19

GROMMET B, SIDE PANEL

70529-657-670

$10.66

20

SPRING, LOCK KEY SETTING

75581-MCT-000

$13.46

21

LATCH, TICKET BOX

77235-KPB-000

$3.38

22

RUBBER, FR. PANEL COWL (B)

83507-KV3-830

$0.80

23

SCREW, SPECIAL (5X17)

90109-KW3-000

$3.01

24

NUT, SPRING (4MM)

90302-KPB-000

$1.51

25

NUT, SPRING (4MM)

90302-SA4-003

$5.44

26

CLIP, SNAP FITTING

90666-S84-A01

$1.49

27

BOLT-WASHER (6X16)

93404-06016-00

$1.55

28

SCREW-WASHER (5X12)

93894-05012-00

$1.49

29

SCREW, TAPPING (4X12)

93903-34310

$1.49

30

SCREW, TAPPING (4X12)

93903-34380

$2.18

31

SCREW, TAPPING (4X16)

93903-34480

$1.49

32

SCREW, TAPPING (5X16) (PO)

93913-15410

$1.49

33

GUIDE, POCKET LID STRIKER

64253-MCT-640

$3.33

34

SPRING, R. POCKET LID

64318-MCT-831

Unavailable

35

SPRING, L. POCKET LID

64319-MCT-831

Unavailable

36

CLIP, AIR IN. DUCT PUSH

90601-PV3-003

$4.09

37

SCREW-WASHER (6X14)

93894-06014-07

$1.49

38

PANEL, RR.

64365-MCT-770

$62.90

39

MAT F, SHOCK ABSORBER

64314-MCT-770

$2.67
