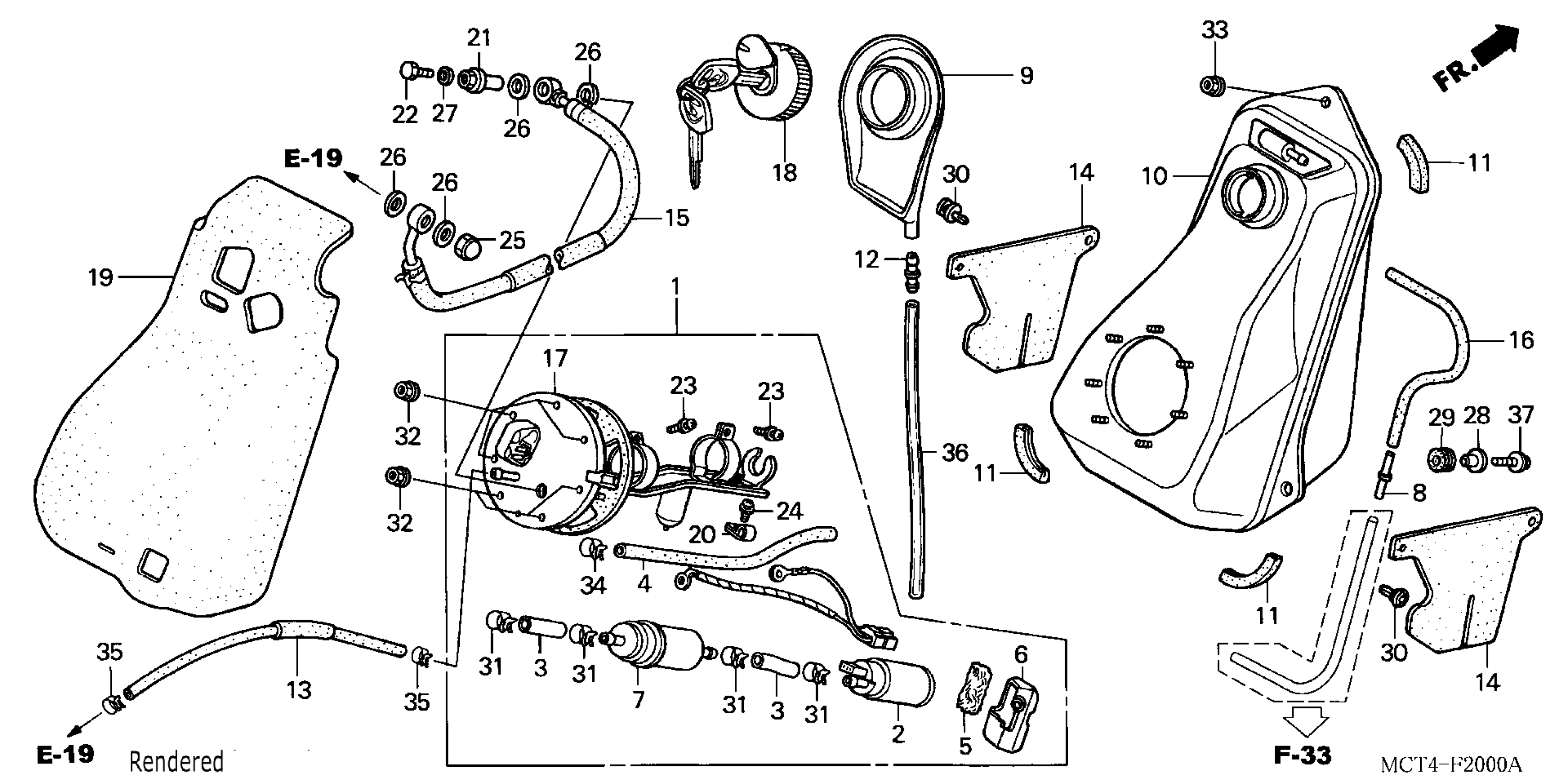

Honda FSC600AAC (05) SILVER WING, JPN, VIN# JH2PF014-5K200001 FUEL TANK Diagram

#

Description
Price

1

PUMP ASSY., FUEL

16700-MCT-D61

$583.68

1

PUMP ASSY., FUEL This part replaces 16700-MCT-641.

16700-MCT-D61

$583.68

2

PUMP ASSY., FUEL (MSDS)

16710-MCT-D61

Unavailable

2

PUMP ASSY., FUEL (MSDS) This part replaces 16710-MCT-013.

16710-MCT-D61

Unavailable

3

HOSE A, PUMP

16711-MCT-000

$9.13

4

TUBE, FUEL PUMP RETURN

16713-MCT-000

$12.54

5

FILTER, FUEL RETURN

16714-MCT-641

$6.16

6

RUBBER, FUEL PUMP UNIT

16716-MCT-D60

$8.58

6

RUBBER, FUEL PUMP UNIT This part replaces 16716-MEF-000.

16716-MCT-D60

$8.58

7

FILTER, FUEL

16900-MCH-003

$70.20

8

JOINT (3.5) (TWO-WAY)

17414-PC6-660

$9.87

9

TRAY, FUEL TANK This part replaces 17507-MCT-000.

17507-MCT-010

$18.94

9

TRAY, FUEL TANK

17507-MCT-010

$18.94

10

TANK, FUEL This part replaces 17510-MCT-000.

17510-MCT-010

$401.16

10

TANK, FUEL

17510-MCT-010

$401.16

11

TRIM, FUEL TANK

17516-HC0-000

$4.56

12

JOINT, FUEL TUBE

17525-KBN-900

$3.57

13

HOSE, FUEL RETURN

17525-MCT-003

$18.96

14

RUBBER, HEAT GUARD

17526-MCT-000

$23.56

15

HOSE, FUEL FEED

17528-MCT-L61

$136.91

15

HOSE, FUEL FEED This part replaces 17528-MCT-020.

17528-MCT-L61

$136.91

16

TUBE, SEPARATOR BREATHER

17530-MCT-000

$3.35

17

GASKET, BASE

17574-MCF-000

$14.61

18

CAP COMP.,FUEL FILL This part replaces 17620-MCT-D01.

17620-MCT-D02

$57.54

19

RUBBER, HEAT GUARD

19020-MCT-680

$60.56

20

CLAMP, IGNITION WIRE

30564-ZE8-003

$2.62

21

BOLT, BANJO (12MM)

90008-PP4-E02

$16.05

22

BOLT, SEALING (6MM)

90009-PP4-E01

$6.64

23

SCREW-WASHER (4X10)

90110-MCH-000

$0.97

24

SCREW, SPECIAL (5X10)

90111-MAZ-000

$1.87

25

NUT A, SEALING (12MM)

90201-PD1-000

$4.88

26

WASHER, SEALING (12MM)

90428-PD6-003

$4.96

27

WASHER, SEALING (6MM)

90430-PD6-003

$3.82

28

COLLAR, FUEL TANK

90175-MCT-640

$3.51

29

GROMMET A, AIR CLEANER HOUSING

90505-MC4-000

$2.92

30

CLIP, TRIM (Honda Code 4529715)

90683-GAZ-003

$3.63

31

CLAMP, TUBE (D12) (FRAME NO.)

91405-PD1-004

$8.27

32

NUT, FLANGE (6MM)

94050-06000

$0.60

33

NUT, FLANGE (8MM) NUT, FLANGE (10MM)

94050-08000

$0.87

34

CLAMP, TUBE (D8.5)

95002-40850-04

$2.34

35

CLAMP, FUEL HOSE (D10.5)

91406-SL4-931

Unavailable

36

BULK HOSE, VINYL (9X11X3000) (9X11X400)

95003-25003-60M

Unavailable

37

BOLT, FLANGE (6X18)

90010-HB9-000

$2.15
