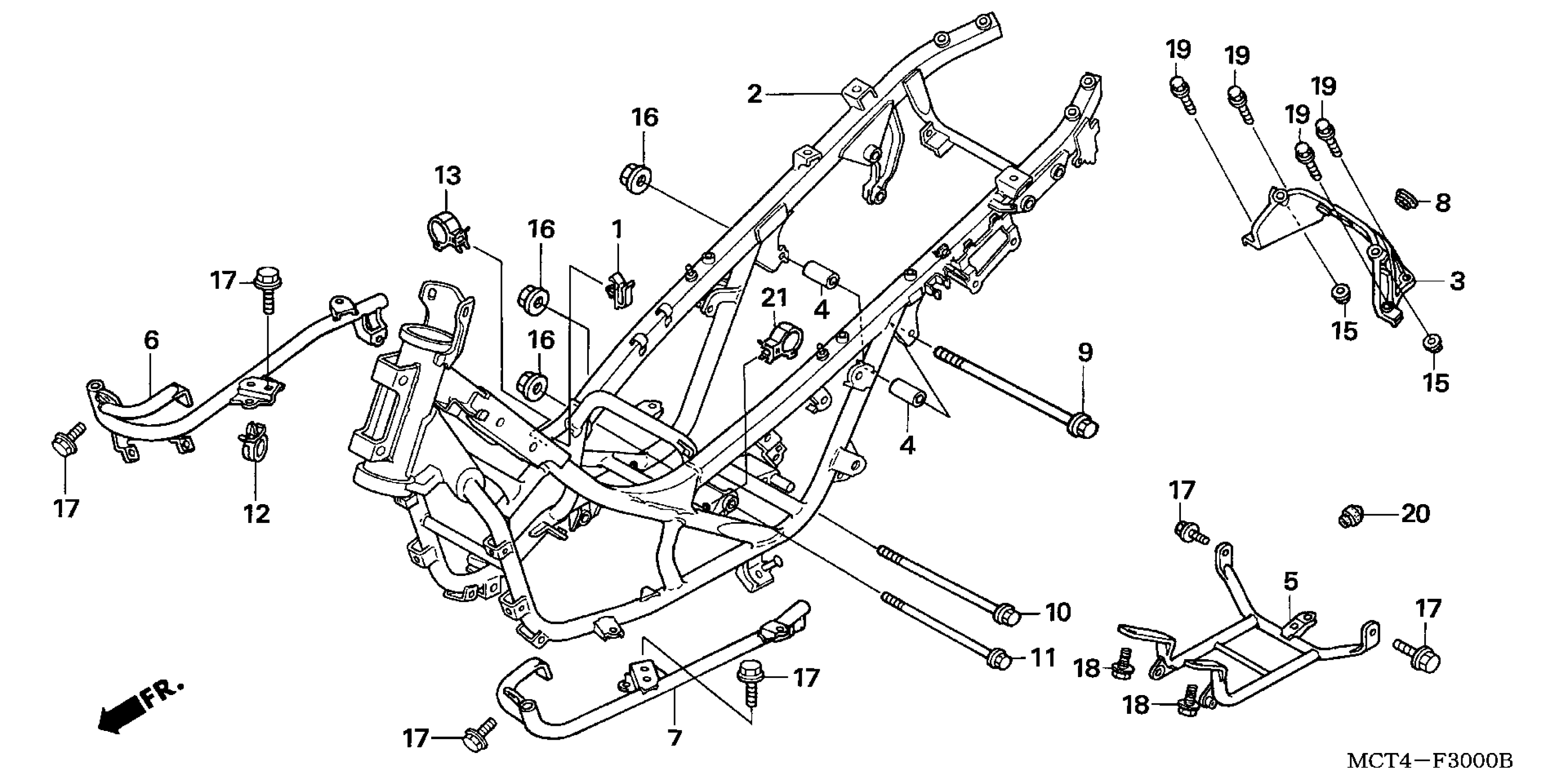

Honda FSC600AAC (05) SILVER WING, JPN, VIN# JH2PF014-5K200001 FRAME Diagram

#

Description
Price

1

CLIP, WIRE HARNESS

32161-393-003

$2.84

2

FRAME This part replaces 50100-MCT-681.

50100-MCT-682

$899.88

2

FRAME

50100-MCT-682

$899.88

3

FRAME, RR.

50160-MCT-000

$154.97

4

COLLAR A, ENGINE MOUNTING

50313-MCT-010

$3.81

5

PIPE (LOWER)

50360-MCT-680

$64.31

6

STAY, R. FLOOR

50610-MCT-020

$68.76

7

STAY, L. FLOOR

50620-MCT-000

$70.75

8

GROMMET, RR. COVER

83504-GE0-000

$2.80

9

BOLT, FLANGE (10X381)

90101-MCT-000

$11.07

10

BOLT, ENGINE HANGER (10X285)

90105-MW0-000

$23.79

11

BOLT, FLANGE (10X239)

90117-KK0-000

$10.63

12

CLIP, WIRE HARNESS

90684-ZA0-601

$2.80

13

CLIP, CABLE (15MM)

90690-GHB-651

$2.01

15

NUT, FLANGE (8MM) NUT, FLANGE (10MM)

94050-08000

$0.87

16

NUT, FLANGE (10MM)

94050-10000

$1.43

17

BOLT, FLANGE (8X12)

95701-08012-00

$1.04

18

BOLT, FLANGE (8X16)

95701-08016-07

$1.62

19

BOLT, FLANGE (8X25)

95701-08025-00

$1.65

19

BOLT, FLANGE (8X25) This part replaces 95801-08025-00.

95701-08025-00

$1.65

20

RUBBER, STOPPER

50352-KM1-000

$3.40

21

CLIP, CABLE (25MM)

90690-GHB-671

$2.01
