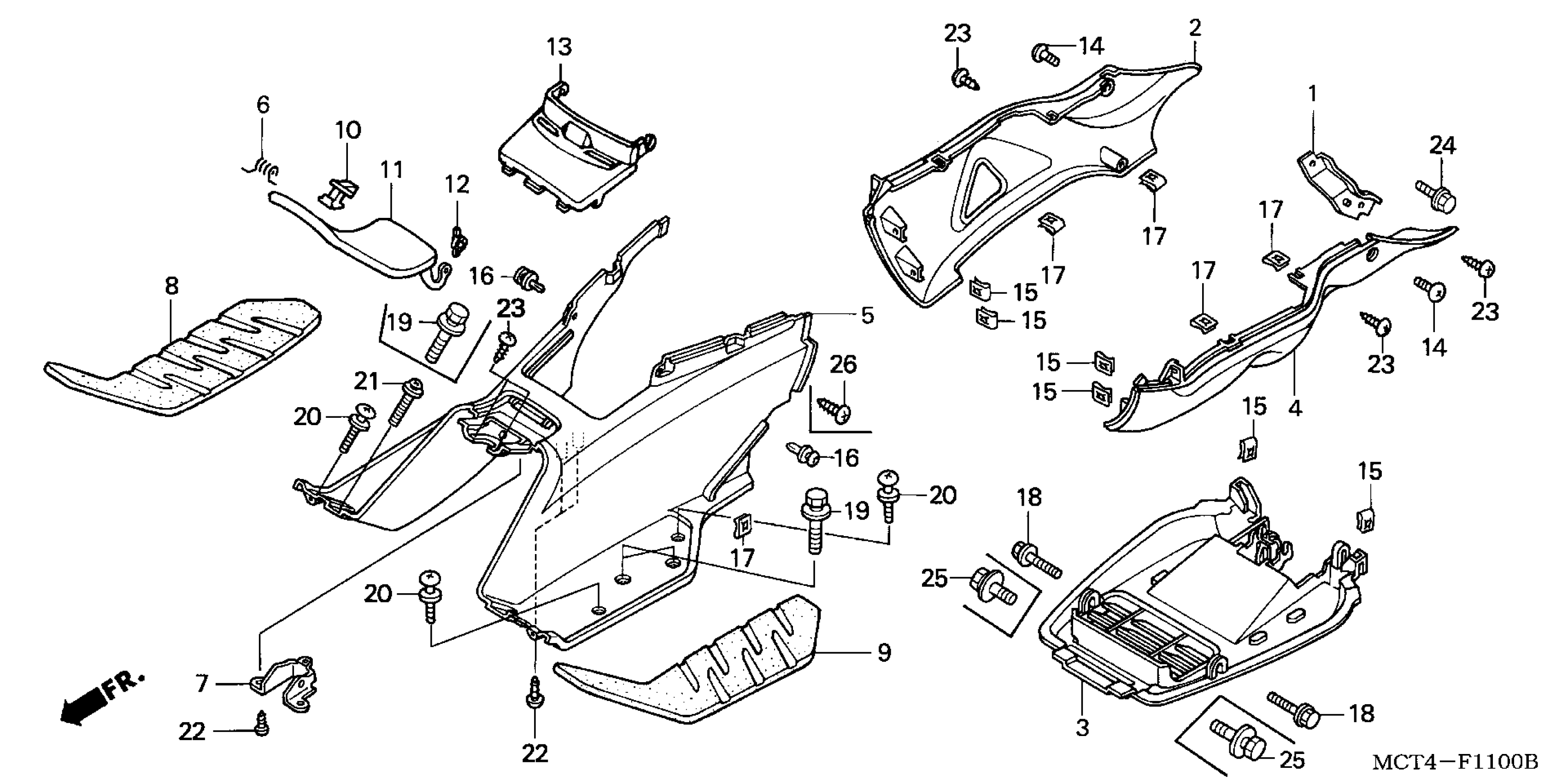

Honda FSC600AAC (05) SILVER WING, JPN, VIN# JH2PF014-5K200001 CENTER COVER Diagram

#

Description
Price

1

STAY., L. SKIRT

50365-MCT-000

$7.09

2

SKIRT, R. FLOOR *NH295M* (SPARKLING SILVER METALLIC)

50611-MCT-681ZH

Unavailable

3

COVER (LOWER)

50621-MCT-020

$64.56

4

SKIRT, L. FLOOR *NH295M* (SPARKLING SILVER METALLIC)

50661-MCT-000ZH

Unavailable

5

STEP, FLOOR

64320-MCT-000

$215.25

6

SPRING, FUEL LID

64321-MCT-000

$1.94

7

PLATE, FUEL LID SET

64322-MCT-000

$5.31

8

FLOOR MAT, R.

64325-MCT-000

$53.12

9

FLOOR MAT, L.

64326-MCT-000

$53.12

10

OPENER, FUEL LID

64340-MCT-003

$8.44

11

LID, FUEL

64451-MCT-010

$26.81

12

DAMPER, LID

64462-MCT-000

$3.61

13

LID, PLUG MAINTENANCE This part replaces 64465-MCT-010.

64465-MCT-020

$14.57

13

LID, PLUG MAINTENANCE

64465-MCT-020

$14.57

14

SCREW, PAN (5X20)

90103-MBG-000

$1.87

15

NUT, SPRING (4MM)

90302-SA4-003

$5.04

17

NUT, CLIP (5MM)

90677-KAN-961

$3.89

19

BOLT-WASHER (6X20)

93404-06020-00

$1.50

20

SCREW-WASHER (5X16)

93891-05016-00

$1.01

22

SCREW, TAPPING (4X10)

93903-34210

$0.84

23

SCREW, TAPPING (4X16)

93903-34480

$0.84

24

BOLT, FLANGE (6X12)

96001-06012-00

$1.66

25

BOLT-WASHER (6X12)

93404-06012-00

$1.50

26

SCREW, TAPPING (4X10)

93901-34280

$0.76
