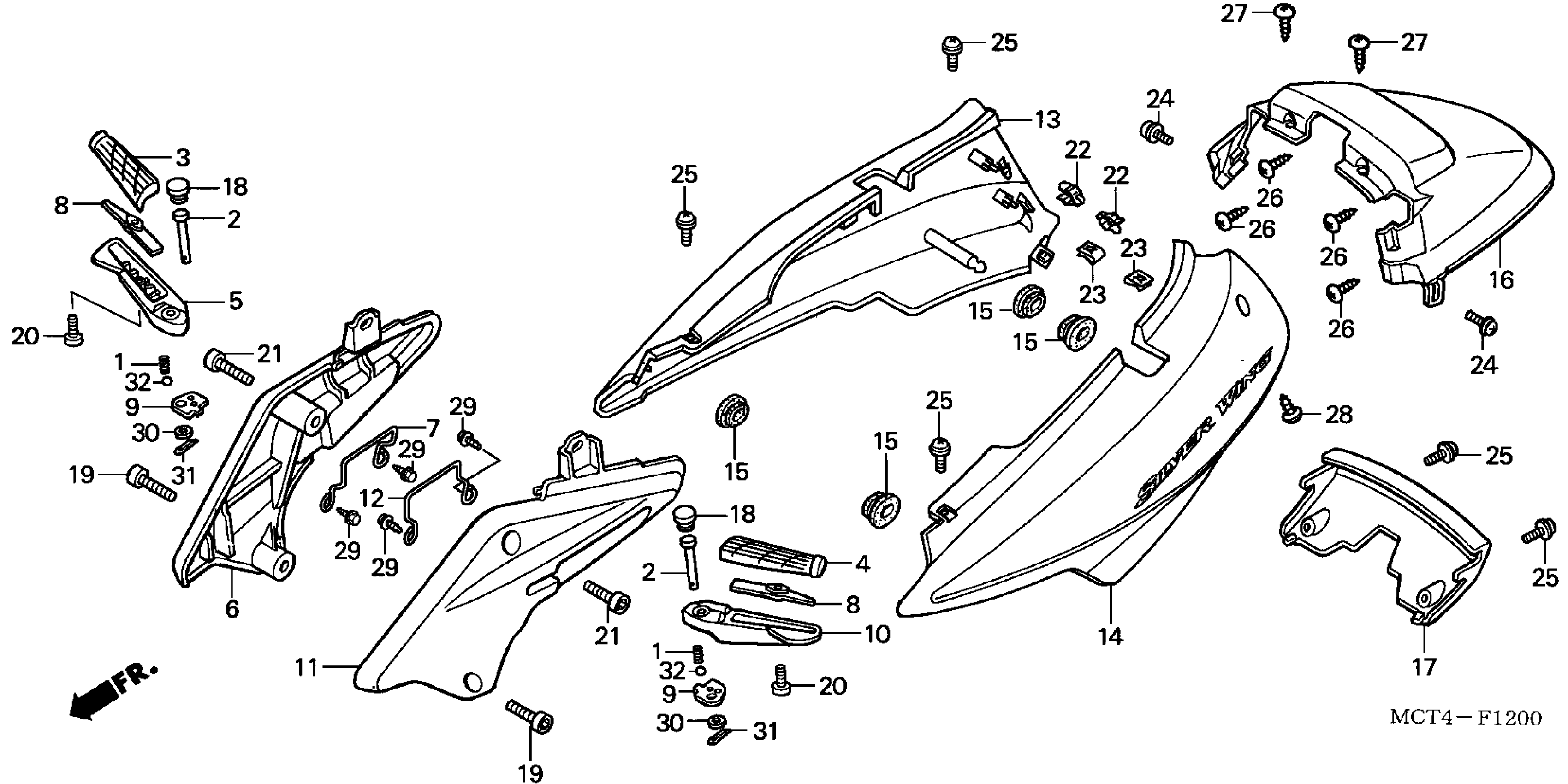

Honda FSC600AAC (05) SILVER WING, JPN, VIN# JH2PF014-5K200001 BODY COVER Diagram

#

Description
Price

1

SPRING, KICK STARTER STOPPER

28333-300-000

$2.92

2

PIN, STEP BAR JOINT

50603-MCT-000

$3.25

3

RUBBER, R. PILLION STEP (COO) This part replaces 50617-MCT-000.

50617-MGF-305

$18.25

3

RUBBER, R. PILLION STEP (COO)

50617-MGF-305

$18.25

4

RUBBER, L. PILLION STEP (COO) This part replaces 50618-MCT-000.

50618-MGF-305

$13.66

4

RUBBER, L. PILLION STEP (COO)

50618-MGF-305

$13.66

5

ARM, R. PILLION STEP *NH471M* (COO) (MAT EXTREME SILVER METALLIC) This part replaces 50652-MCT-000ZB.

50652-MGF-305ZA

$44.11

5

ARM, R. PILLION STEP *NH471M* (COO) (MAT EXTREME SILVER METALLIC)

50652-MGF-305ZA

$44.11

6

HOLDER, R. PILLION STEP *NH471M* (MAT EXTREME SILVER METALLIC)

50663-MCT-770ZC

$153.67

7

GUIDE, R. FLOOR

50664-MCT-000

$8.13

8

PLATE, FOOT

50723-MCT-000

$5.31

9

PLATE, PILLION STEP CLICK

50724-MCT-000

$3.44

10

ARM, L. PILLION STEP *NH471M* (COO) (MAT EXTREME SILVER METALLIC) This part replaces 50752-MCT-000ZB.

50752-MGF-305ZA

$42.20

10

ARM, L. PILLION STEP *NH471M* (COO) (MAT EXTREME SILVER METALLIC)

50752-MGF-305ZA

$42.20

11

HOLDER, L. PILLION STEP *NH471M* (MAT EXTREME SILVER METALLIC)

50763-MCT-000ZA

$161.36

12

GUIDE, L. FLOOR

50764-MCT-000

$8.13

13

COVER SET, R. BODY *NH237P* (WL) (PURE BLACK)

83400-MCT-692ZF

$257.11

13

COVER SET, R. BODY *NH237P* (WL) (PURE BLACK) This part replaces 83400-MCT-691ZF.

83400-MCT-692ZF

$257.11

13

COVER SET, R. BODY *YR183M* (WL) (TITANIUM METALLIC) This part replaces 83400-MCT-691ZP.

83400-MCT-692ZP

Unavailable

13

COVER SET, R. BODY *YR183M* (WL) (TITANIUM METALLIC)

83400-MCT-692ZP

Unavailable

14

COVER SET, L. BODY *NH237P* (WL) (PURE BLACK)

83500-MCT-691ZF

$264.84

14

COVER SET, L. BODY *YR183M* (WL) (TITANIUM METALLIC)

83500-MCT-691ZP

Unavailable

15

GROMMET, AIR CLEANER HOUSING

83551-GE2-000

$5.80

16

COVER SET, RR. BODY (TYPE6) (WL)

83600-MCT-690ZH

$54.31

16

COVER SET, RR. BODY (TYPE1) (WL)

83600-MCT-L00ZA

Unavailable

17

COVER, RR. (LOWER) *NH237P* (PURE BLACK)

83611-MCT-000ZB

$14.90

17

COVER, RR. (LOWER) *YR183M* (TITANIUM METALLIC)

83611-MCT-000ZS

$12.10

18

RUBBER, NUMBER PLATE BRACKET CUSHION

84702-MF2-670

$4.57

19

BOLT, SOCKET (10X45)

90104-MCT-000

$2.92

20

BOLT, TORX (5X14)

90131-MY3-781

$2.89

21

BOLT, SOCKET (10X45)

90181-MCT-000

$2.43

22

CLIP, SNAP FITTING

90666-S84-A01

$1.49

23

NUT, CLIP (5MM)

90677-KAN-961

$4.07

24

SCREW-WASHER (5X12)

93891-05012-08

$1.49

25

SCREW-WASHER (5X16)

93891-05016-07

$1.49

26

SCREW, TAPPING (4X12)

93903-24310

$1.49

27

SCREW, TAPPING (4X12)

93903-34380

$2.18

28

SCREW, TAPPING (4X16)

93903-34480

$1.49

29

SCREW, TAPPING (5X16)

93904-35380

$1.49

30

WASHER, PLAIN (8MM)

94102-08800

$1.49

31

PIN, COTTER (2.0X12)

94201-20120

$1.49

32

BALL, STEEL (#8) (1/4)

96211-08000

$1.49
