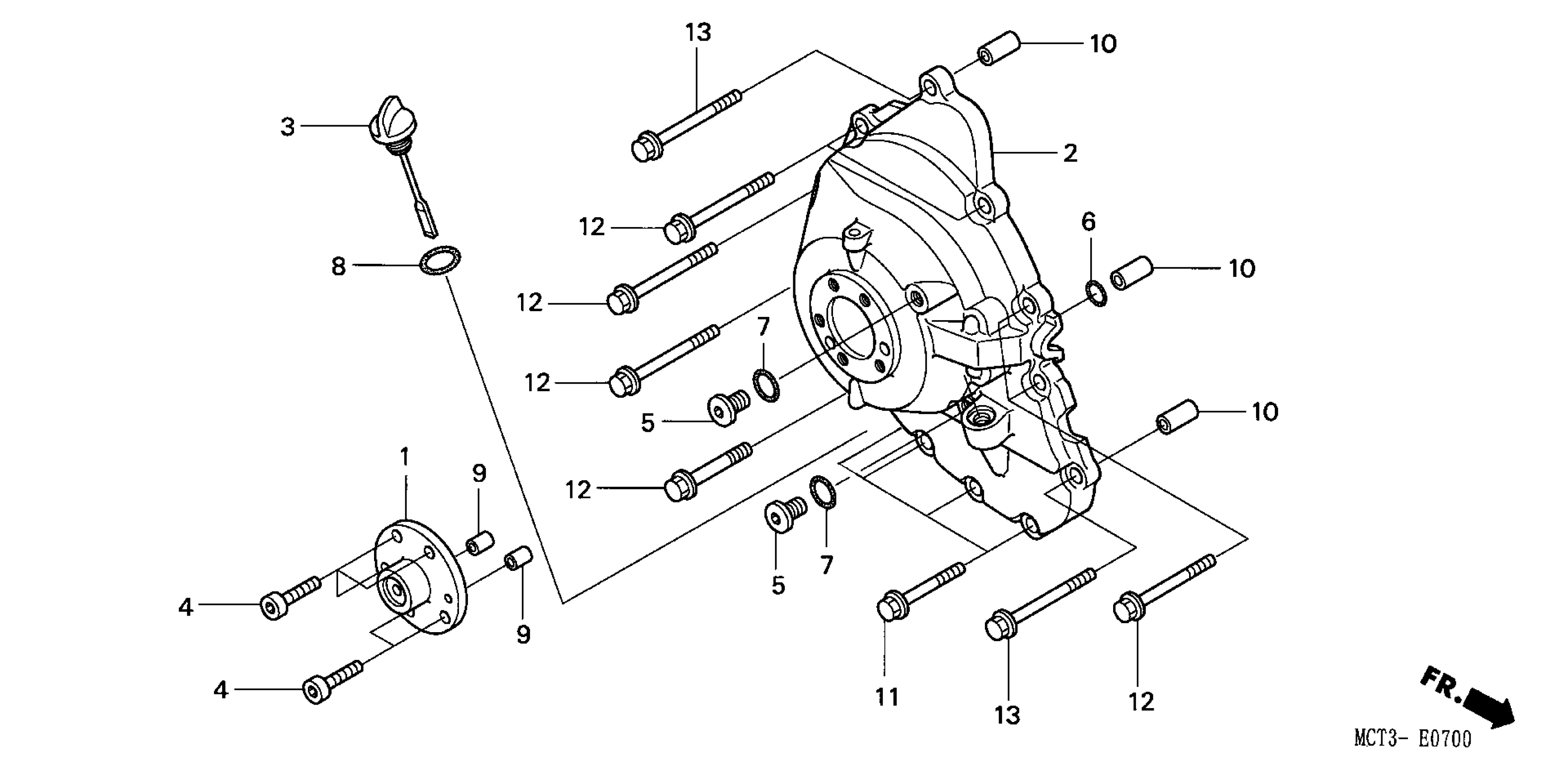

Honda FSC600AAC (04) SILVER WING, JPN, VIN# JH2PF014-4K100001 TO JH2PF014-4K199999 RIGHT CRANKCASE COVER Diagram

PIVOT, R. SWINGARM

11325-MCT-010

$44.13

COVER, R.

11330-MCT-010

$155.51

DIPSTICK, OIL

15650-MCT-000

$17.96

BOLT, SOCKET (8X22)

90010-MCT-000

$1.46

CAP (14MM)

90084-MN8-010

$11.50

O-RING (9.8X1.9) This part replaces 91302-PJ4-000.

91305-PE2-003

$2.41

O-RING (9.8X1.9) This part replaces 91302-PJ4-004.

91305-PE2-003

$2.41

O-RING (9.8X1.9) (Honda Code 1869478)

91305-PE2-003

$2.41

O-RING (13.8X2.5)

91303-377-000

$3.18

O-RING (18X3)

91307-035-000

$2.71

PIN A, DOWEL (8X10)

94301-08100

$2.04

PIN, DOWEL (10X16) (Honda Code 0058206)

94301-10160

$2.24

BOLT, FLANGE (6X30)

95701-06030-00

$1.71

BOLT, FLANGE (8X35)

95701-08035-00

$2.09

BOLT, FLANGE (8X40)

95701-08040-00

$1.14
