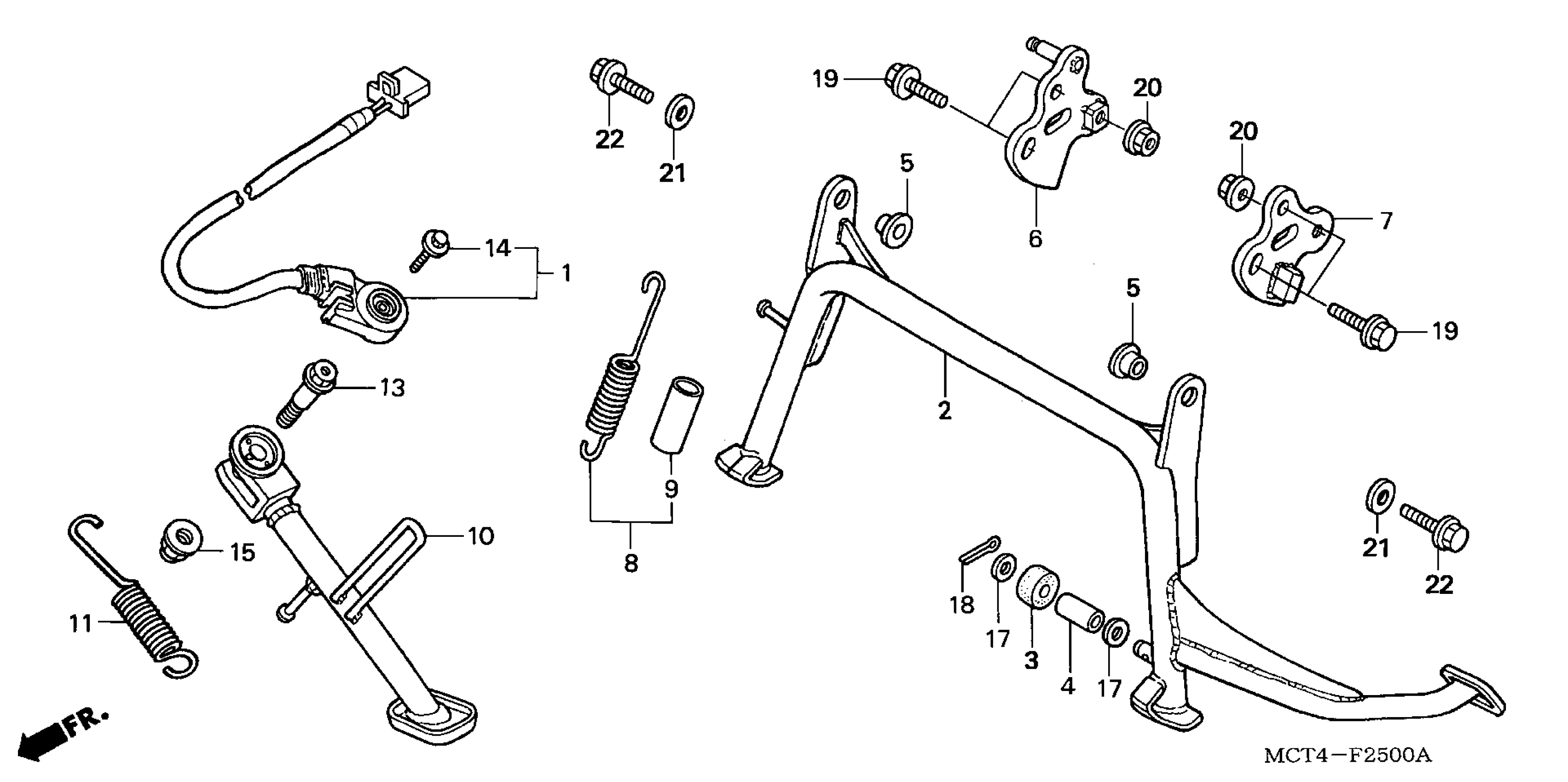

Honda FSC600AAC (03) SILVER WING, JPN, VIN# JH2PF014-3K000001 TO JH2PF014-3K099999 STAND Diagram

#

Description
Price

1

SWITCH SET, SIDE STAND

35700-MCT-305

$66.10

2

STAND SET, MAIN

50500-MCT-306

Unavailable

2

STAND SET, MAIN This part replaces 50500-MCT-680.

50500-MCT-306

Unavailable

3

RUBBER, MAIN STAND STOPPER

50502-KAB-000

$2.43

4

COLLAR, MAIN STAND STOPPER

50503-KAB-000

$2.44

5

COLLAR, MAIN STAND

50503-MA6-010

$9.18

6

BRACKET, R. MAIN STAND

50505-MCT-770

$21.25

7

BRACKET, L. MAIN STAND

50506-MCT-770

$15.67

8

SPRING ASSY., MAIN STAND

50520-MT3-601

$15.16

9

TUBE, MAIN STAND SPRING

50524-MT3-601

$4.54

10

BAR, SIDE STAND

50530-MCT-000

$63.30

11

SPRING, SIDE STAND

50535-KN5-670

$6.54

11

SPRING, SIDE STAND This part replaces 50535-429-000.

50535-KN5-670

$6.54

13

BOLT, SIDE STAND PIVOT

90108-MK6-670

$7.78

14

BOLT, SPECIAL (6X16)

90147-MCE-950

$1.49

15

NUT, SIDE STAND

90203-MF9-710

$3.67

17

WASHER, PLAIN (8MM)

94102-08800

$1.49

18

PIN, COTTER (2.0X22) This part replaces 94201-20200.

94201-29220

$1.49

18

PIN, COTTER (2.0X22) PIN, COTTER (2.0X25)

94201-20220

$1.49

18

PIN, COTTER (2.0X35) This part replaces 94201-20250.

94201-20350

$1.49

18

PIN, COTTER (2.0X35) This part replaces 94201-20280.

94201-20350

$1.49

18

PIN, COTTER (2.0X35) This part replaces 94201-20320.

94201-20350

$1.49

18

PIN, COTTER (2.0X35) PIN, COTTER (2.0X22)

94201-20350

$1.49

18

PIN, COTTER (2.0X22)

94201-29220

$1.49

19

BOLT, FLANGE (10X30)

95701-10030-00

$2.30

19

BOLT, FLANGE (10X30) This part replaces 95801-10030-00.

95701-10030-00

$2.30

20

NUT, FLANGE (10MM)

90303-428-900

$3.35

20

NUT, FLANGE (10MM) This part replaces 94050-10070.

90303-428-900

$3.35

21

WASHER, PLAIN (10MM)

94101-10700

$1.49

22

BOLT, FLANGE (10X40)

95701-10040-07

$1.90
