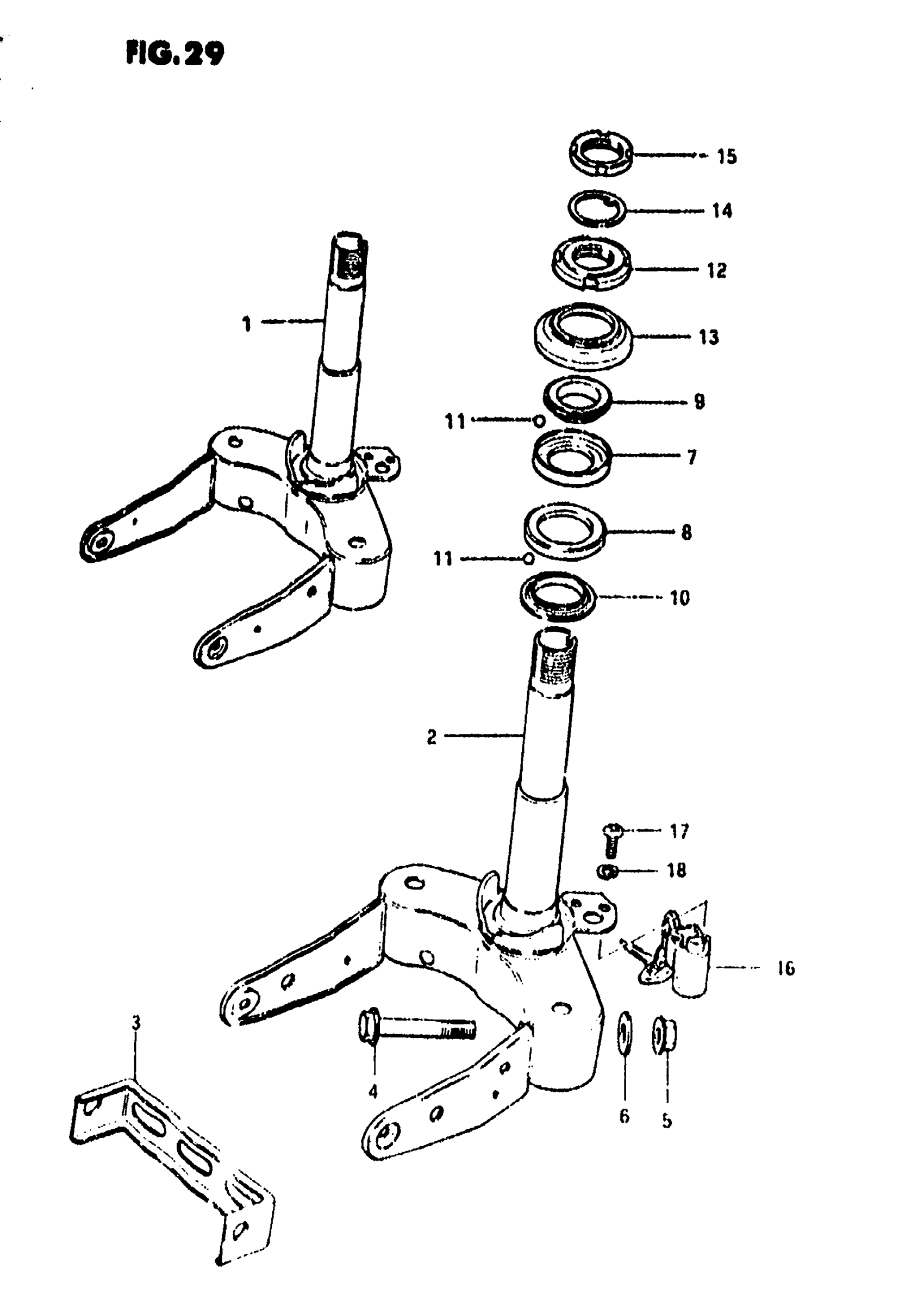

Suzuki FS50 (1981) STEERING STEM Diagram

#

Description
Price

1

NO DESCRIPTION AVAILABLE | MODEL T This part replaces 51410-02510-07P.

51410-02513-07P

Unavailable

2

NO DESCRIPTION AVAILABLE | MODEL X This part replaces 51410-02521-10G.

51410-02522-10G

Unavailable

3

BRACKET

51534-02500

Unavailable

4

BOLT

09103-10027

$4.60

5

NUT This part replaces 08319-31108.

08319-31107

$2.73

6

WASHER This part replaces 08322-21108.

08322-01107

$2.15

7

RACE,STEERING INNER UPPER

51611-20002

$11.95

8

RACE, STEERING INNER LOWER

51612-04000

Unavailable

9

RACE,STEERING OUTER UPPER

51621-28000

$11.95

10

RACE, STEERING OUTER LOWER

51622-04000

Unavailable

11

STEEL BALL

06111-06003

$1.49

12

NUT, STEERING STEM

51631-28000

$17.37

13

DUST SEAL,STEERING UPPER

51643-25001

$4.43

14

WASHER, STEERING LOCK

09166-26001

$2.07

15

NUT, STEERING STEM

51632-02400

$16.87

16

LOCK ASSY, STEERING This part replaces 51910-25310.

51910-25311

$40.33

17

SCREW This part replaces 02112-05168.

02112-05167

$1.97

18

LOCK WASHER This part replaces 08321-21058.

08321-0105A

$1.84
