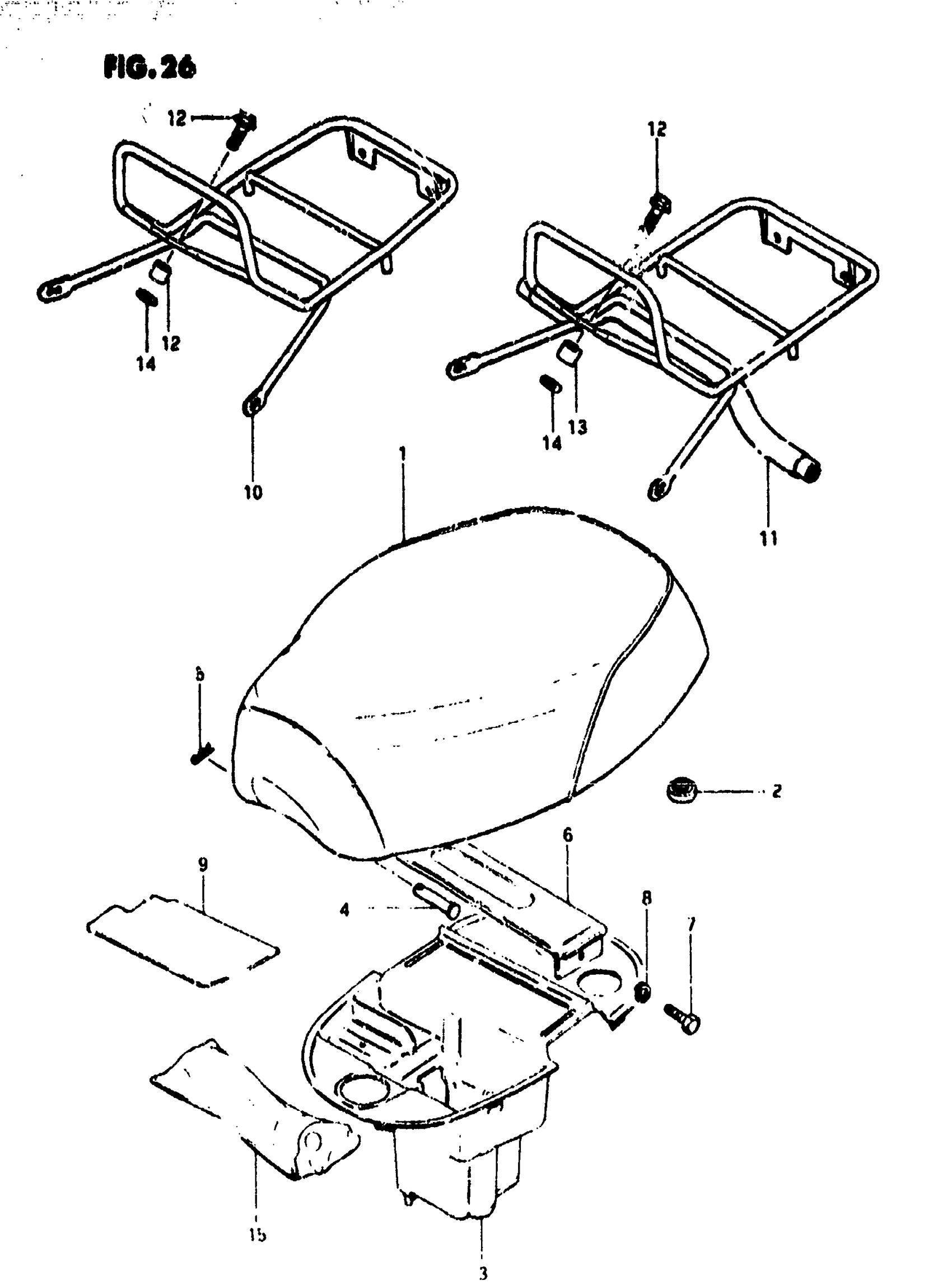

Suzuki FS50 (1981) SEAT Diagram

#

Description
Price

1

NO DESCRIPTION AVAILABLE This part replaces 45100-02510-866.

45100-02501-43N

Unavailable

2

CUSHION

09321-14003

Unavailable

3

COVER, FRAME UPPER

47181-02500

Unavailable

3

COVER, FRAME UPPER | MODEL X:F.NO.3101003~

47181-02520

Unavailable

4

PIN, FRONT

09200-08002

$2.05

5

CLIP

09385-06001

$3.10

6

BRACKET, LOWER

45260-02502

Unavailable

7

BOLT This part replaces 01107-06108.

01500-06107

$2.06

8

LOCK WASHER This part replaces 08321-21068.

08321-01067

$2.13

9

COVER, UPPER

47184-02500

Unavailable

10

CARRIER, REAR | MODEL T

46310-02510

Unavailable

11

CARRIER, REAR | MODEL X

46310-02511

Unavailable

12

BOLT, REAR LH This part replaces 01517-08208.

01550-08207

$2.69

13

SPACER,8.5X14X9 This part replaces 09180-08075.

09180-08200

$2.97

14

WASHER This part replaces 09160-08051.

09160-08130

$2.03

15

TOOL ASSY | 4 This part replaces 09800-00161.

09800-21080

$36.42
