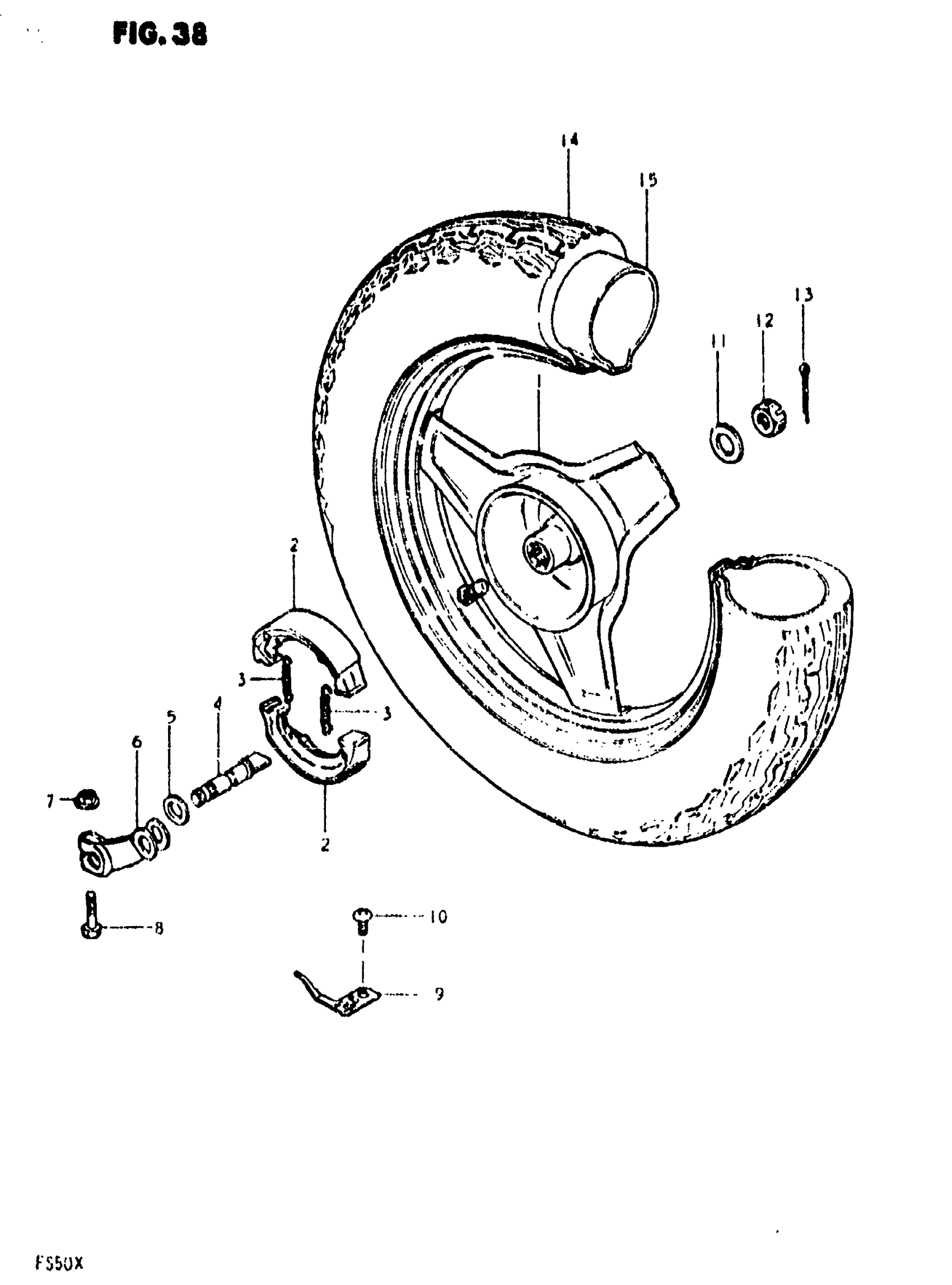

Suzuki FS50 (1981) REAR WHEEL Diagram

#

Description
Price

1

WHEEL REAR | PEARL METALLIC, MODEL T This part replaces 64150-02310-126.

64150-02500-126

Unavailable

1

WHEEL REAR | PEARL MEATALLIC, MODEL X This part replaces 64150-02311-126.

64150-02500-126

Unavailable

2

SHOE SET,BRAKE This part replaces 54410-02310.

54400-02820

Unavailable

3

SPRING, SHOE

09443-06029

$2.44

4

CAM, BRAKE

64441-02500

Unavailable

5

WASHER This part replaces 08322-11108.

08322-01107

$2.15

6

LEVER, CAM

64451-02301

Unavailable

7

NUT This part replaces 08316-16058.

08316-1005A

$2.19

8

BOLT This part replaces 09100-05003.

01500-0525A

$1.77

9

PLATE, LINING INDICATOR

64492-02200

Unavailable

10

SCREW This part replaces 02112-06108.

02112-06107

$1.49

11

WASHER This part replaces 08322-11128.

08322-01127

$1.84

12

NUT This part replaces 08314-41128.

08314-4012A

$2.50

13

PIN This part replaces 04111-30308.

04111-3030A

$1.49

14

TIRE, FRONT | IRC This part replaces 55100-02510.

55100-29C10

Unavailable

15

NO DESCRIPTION AVAILABLE This part replaces 55200-02300.

55200-16A00

Unavailable
