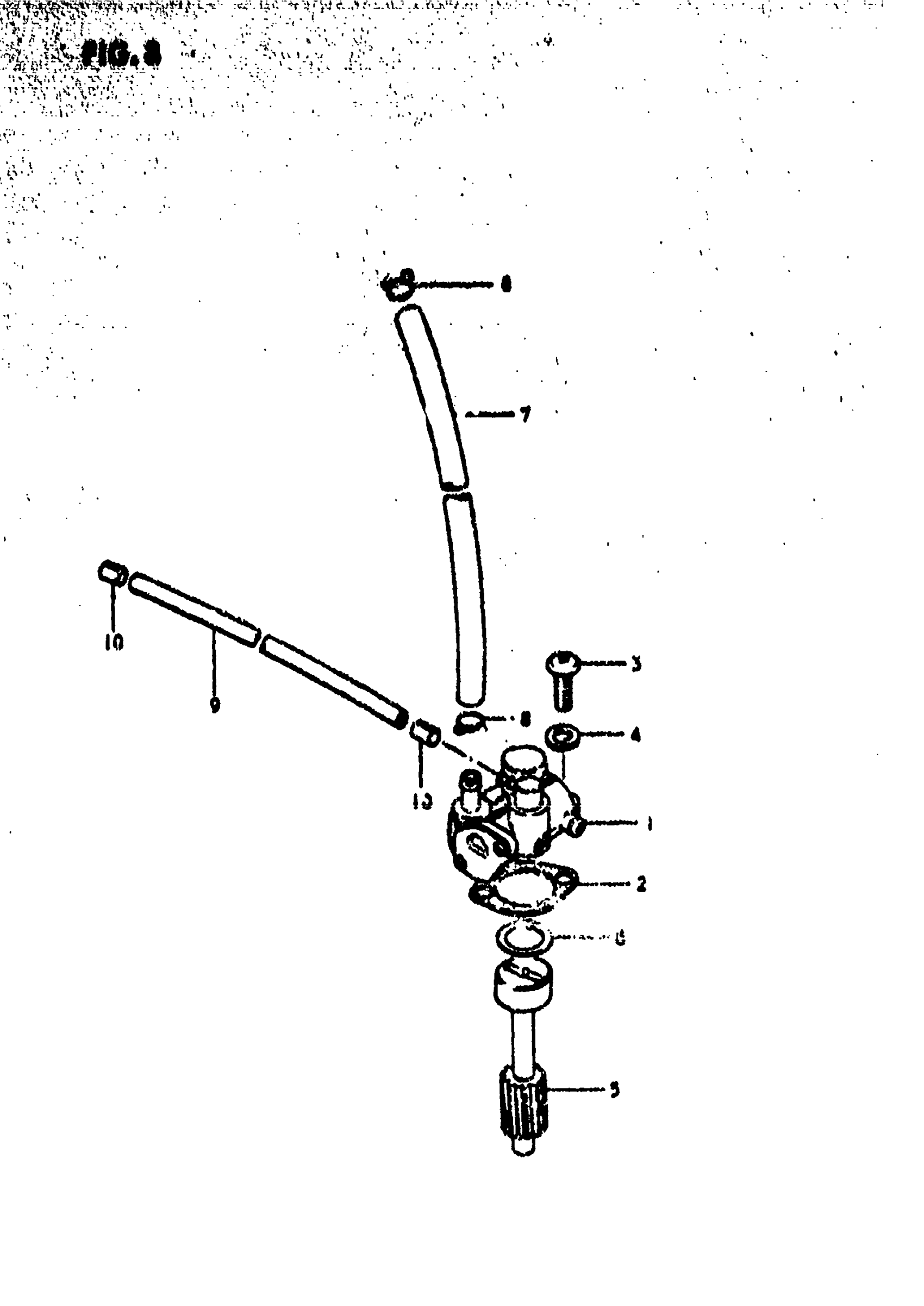

Suzuki FS50 (1981) OIL PUMP Diagram

#

Description
Price

1

OIL PUMP

16100-02330

Unavailable

2

GASKET

16731-02300

$2.81

3

SCREW This part replaces 02112-05168.

02112-05167

$1.97

4

LOCK WASHER This part replaces 08321-21058.

08321-0105A

$1.84

5

GEAR, DRIVEN (NT:14) This part replaces 16331-02302.

16331-02303

Unavailable

6

WASHER

08212-16202

Unavailable

7

HOSE(4.5X8.5X60 | MODEL T This part replaces 09343-04033.

09355-45001-600

$9.48

7

HOSE(4.5X8.5X60 | MODEL X This part replaces 09343-04025.

09355-45001-600

$9.48

8

CLAMP

09401-08401

$1.54

9

HOSE(2X5X600) This part replaces 09343-02018.

09352-20504-600

$6.70

10

CLAMP

09401-04401

$2.06
